Technical Specifications for 1756-CNBR
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Isolation Voltage
|
30 Volts Continuous
|
|
Part Number/Catalog No.
|
1756-CNBR
|
Enclosure
|
Open Type
|
|
Module Type
|
Communication Module
|
Backplane Current
|
1.7 milliamps
|
|
Manufacture Year
|
2021
|
Max Number of Nodes
|
99
|
|
Product Package
|
Original Package
|
Slot Width
|
1
|

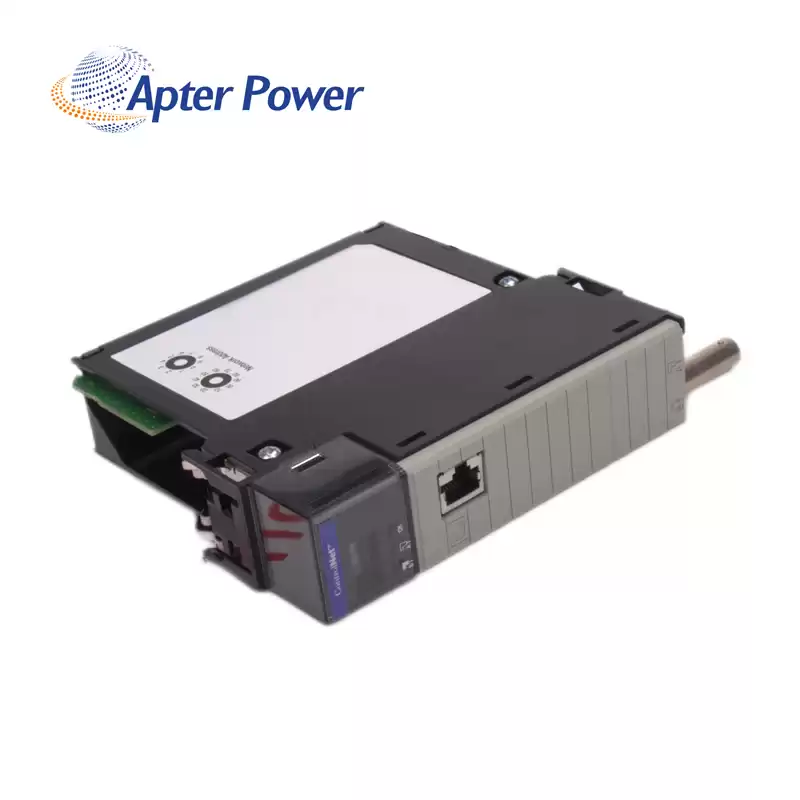

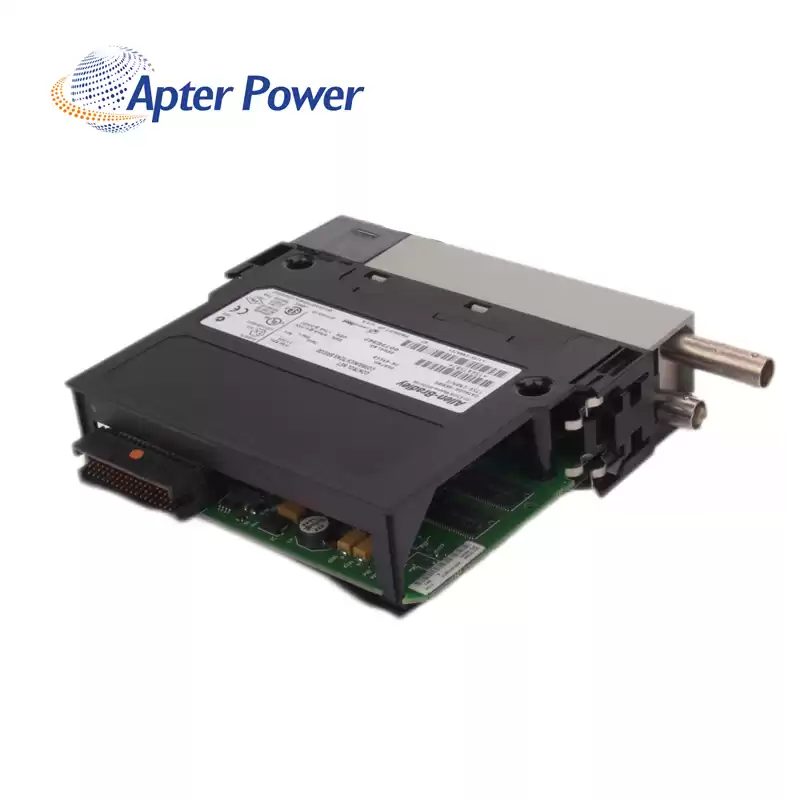

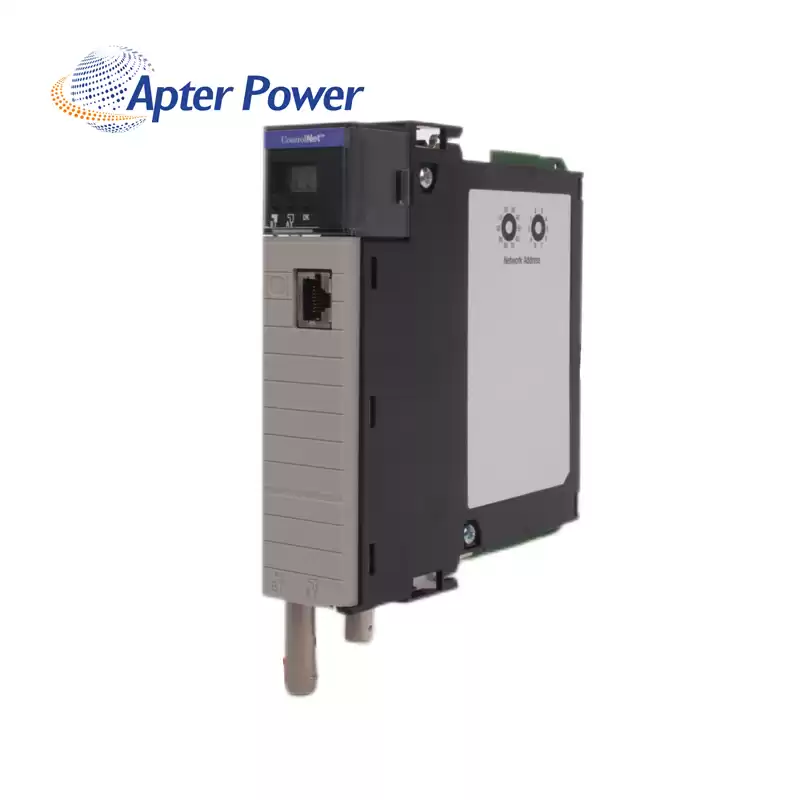

About 1756-CNBR
|
The 1756-CNBR supports transmission rate of 5Mbps, which is the standard transmission rate of the ControlNet protocol. It uses a quad shield RG-6 coaxial cable as trunk cable and established connection to the trunk cable with the use of ControlNet taps. This module supports 40-48 Logical communication connections and a maximum of 64 connections. The maximum number of nodes supported by the 1756-CNBR is 99 nodes.
The 1756-CNBR may be installed along the ControlLogix processor as a local communication module or to any distributed I/O rack as the head communication module. It is compatible with a variety of ControlLogix rack such as 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It may be installed to any available slot and only requires single slot in the chassis.
The 1756-CNBR communication module is backplane powered and draws 970 mA at 5.1VDC and 1.7 mA at 24VDC. It has a power dissipation of 5.1 Watts and Thermal dissipation of 17.4 BTU/hr.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
