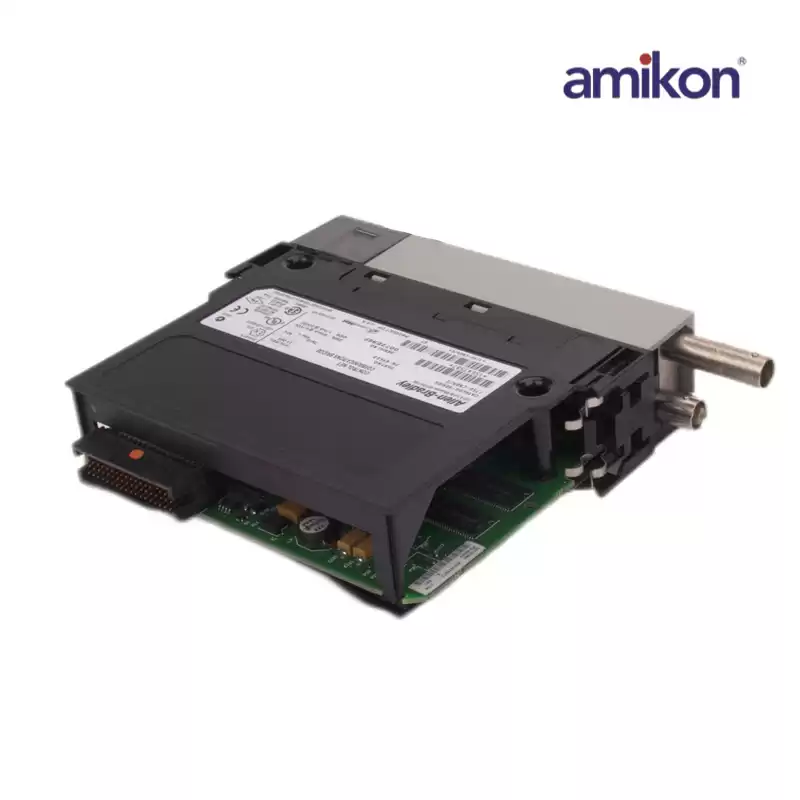

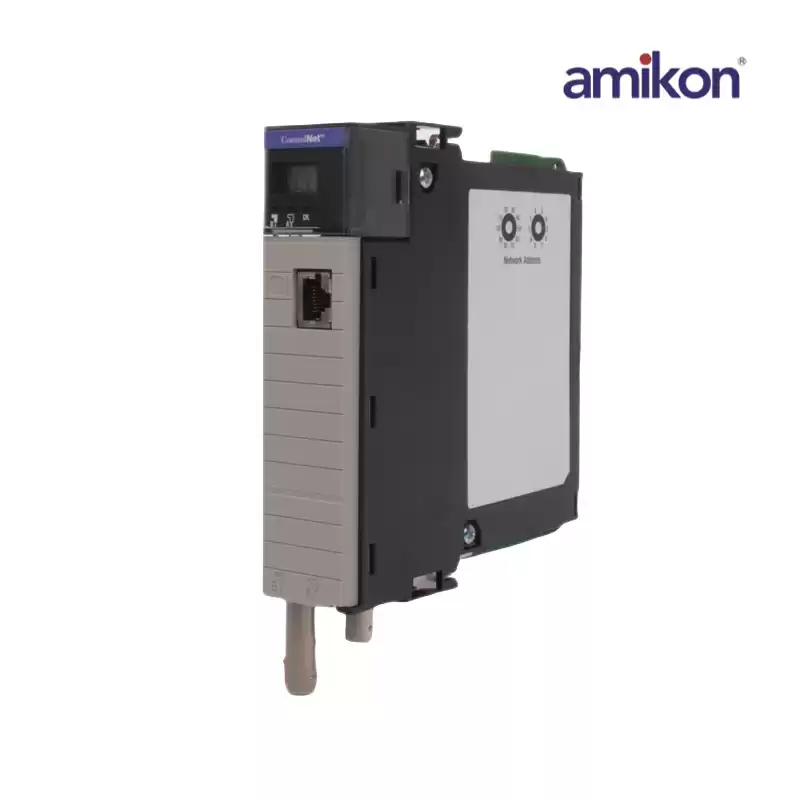

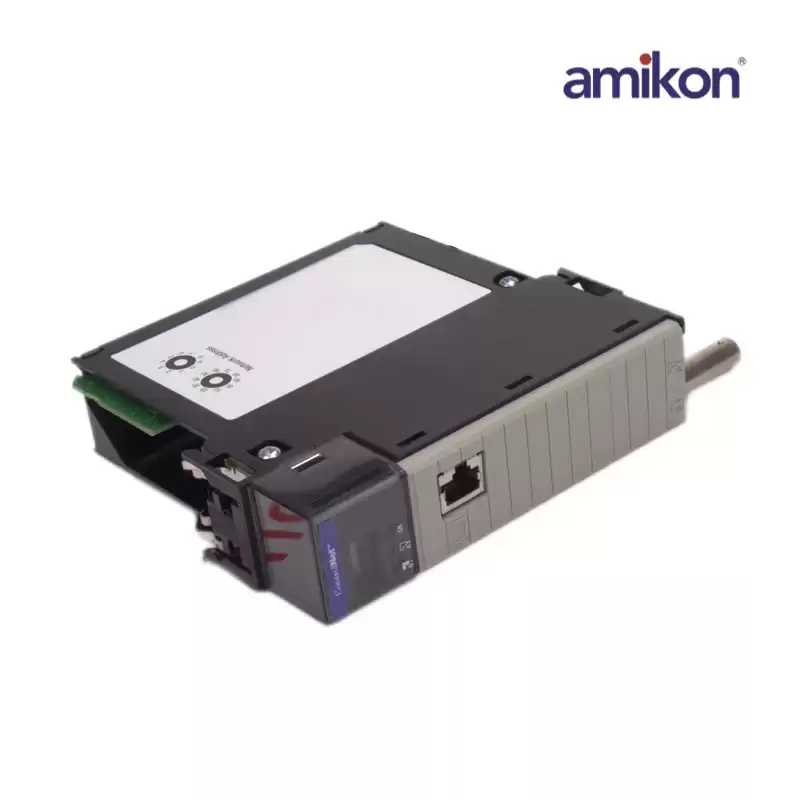

1756-CNBR/D
|
|
Dimensions ：
|
13.2cmx2.5cmx18cm
|
Weight：
|
0.24KG
|
|
The 1756-CNBR supports transmission rate of 5Mbps, which is the standard transmission rate of the ControlNet protocol. It uses a quad shield RG-6 coaxial cable as trunk cable and established connection to the trunk cable with the use of ControlNet taps. This module supports 40-48 Logical communication connections and a maximum of 64 connections. The maximum number of nodes supported by the 1756-CNBR is 99 nodes.
The 1756-CNBR may be installed along the ControlLogix processor as a local communication module or to any distributed I/O rack as the head communication module. It is compatible with a variety of ControlLogix rack such as 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It may be installed to any available slot and only requires single slot in the chassis.
|
|
