1756-DHRIO
|
|
Dimensions ：
|
15.3cm3.7cmx12cm
|
Weight：
|
0.37kg
|
|

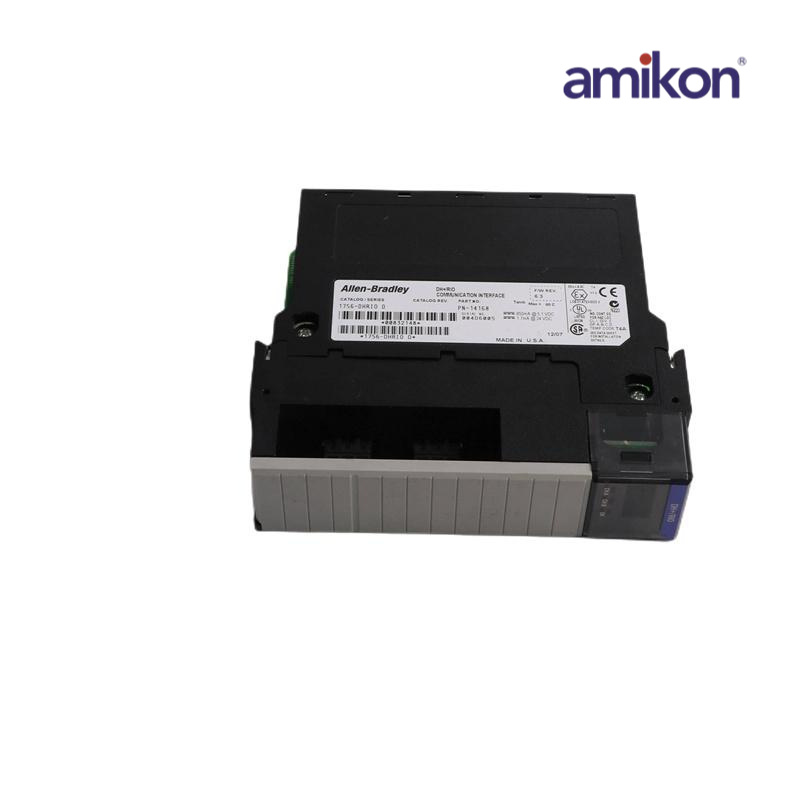

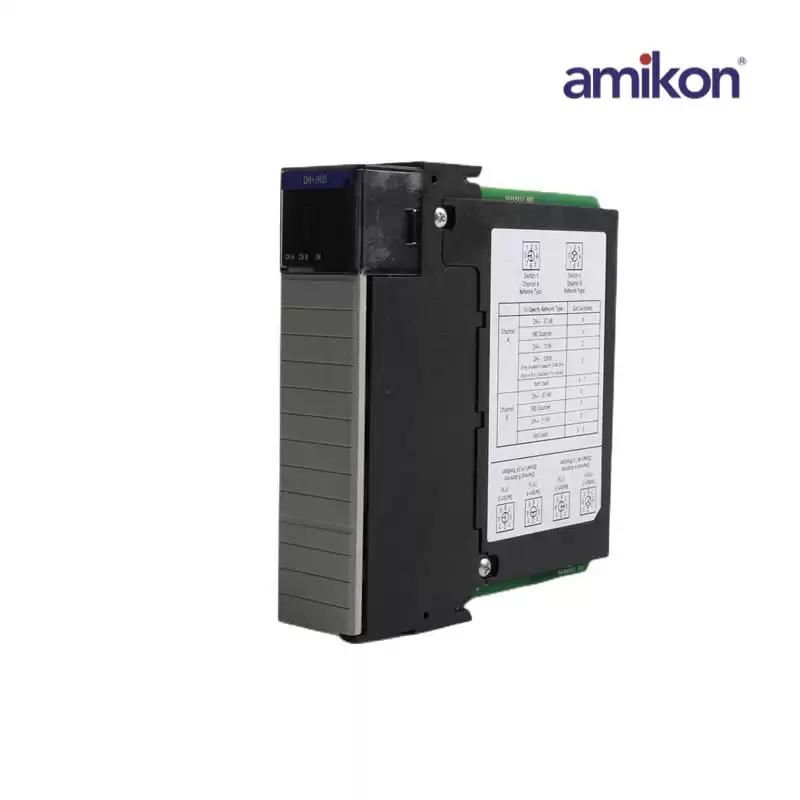

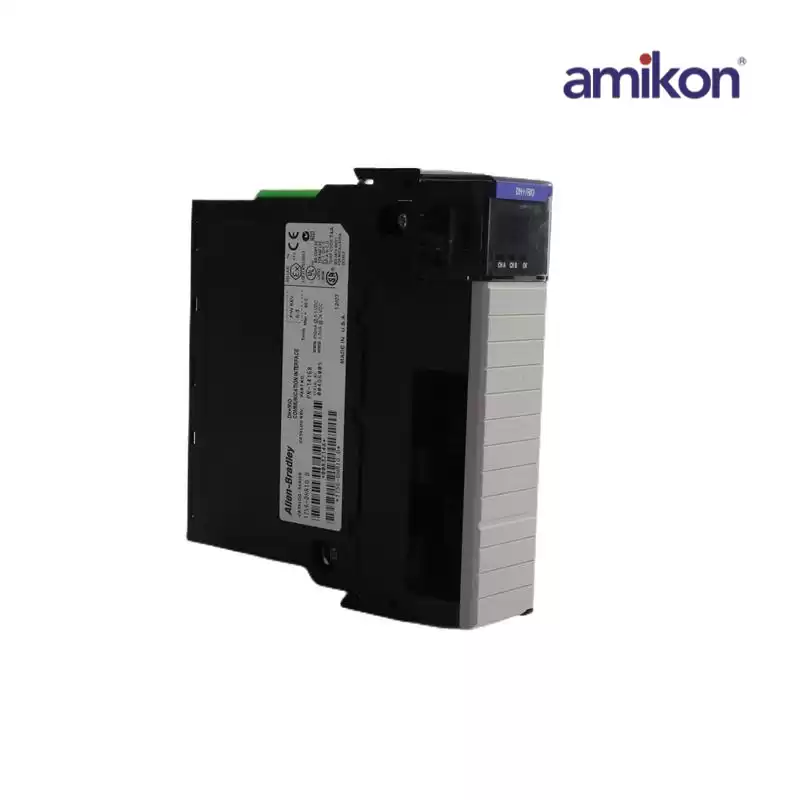

The 1756-DHRIO is a ControlLogix Data Highway Plus/Remote I/O communication interface module. This module has Two (2) channels, supporting communication rates of 57.6 kilobytes per second, 115.2 kilobytes per second, and 230.4 kilobytes per second, depending on the cable length.
|
|
DH+ and Remote I/O network requires the use of a terminating resistor as it follows daisy-chain topology. This resistor is installed at the first and last node of the network. Resistor values depend on the network speed. 82 Ohms is used for network speed of 230.4Kbps.
|
