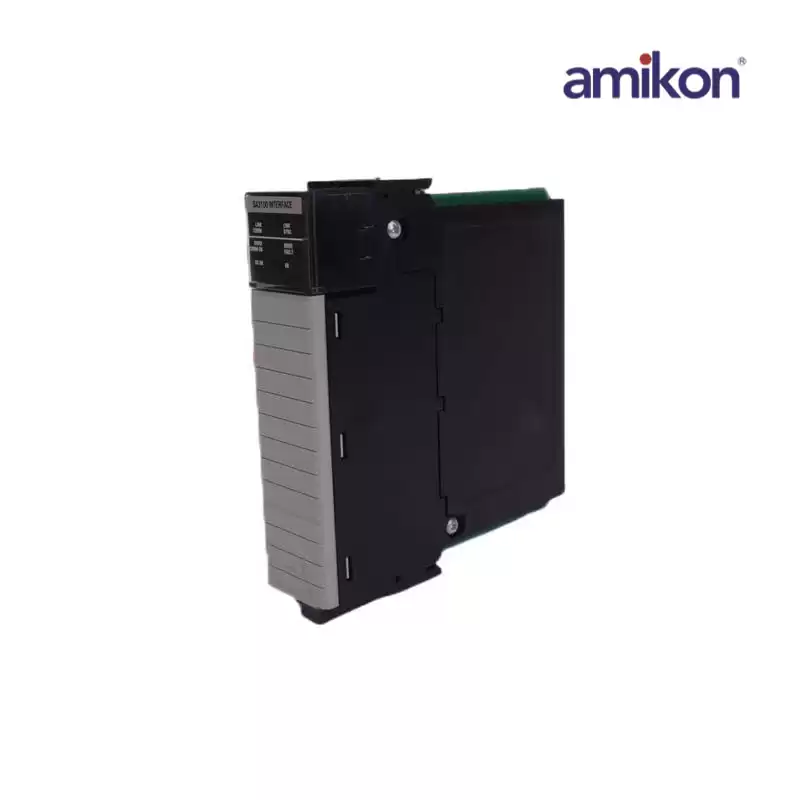

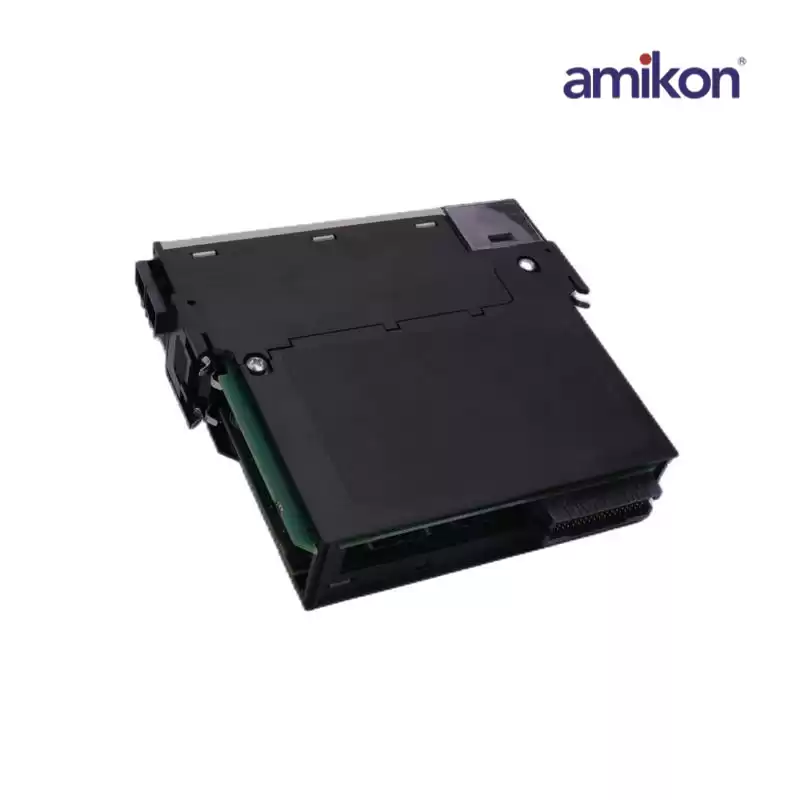

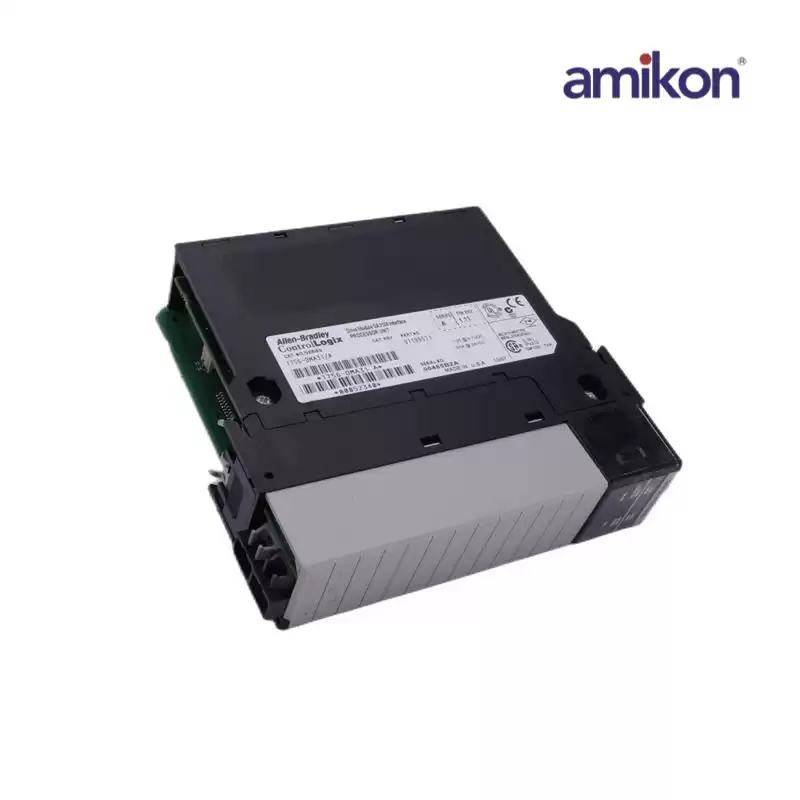

1756-DMA31
|
|
Dimensions ：
|
28.3cmx18.2cmx5.2cm
|
Weight：
|
0.5KG
|
|
The 1756-DMA31 module draws 1.35 Amps of current at 5.1 volts DC and 3 milliamps at 24 Volts DC from the chassis backplane and it dissipates a maximum of 6.96 Watts. The operating temperature range for the 1756-DMA31 module is from 0 to 60 degrees Celsius.
The 1756-DMA31 ControlLogix drive module can be used on SynchLink, a fiber optic communication link that allows for the implementation of distributed motion and drive systems based on the PowerFlex 700S and the ControlLogix systems. Synchlink can be used together with standard control network protocols such as the Ethernet or ControlNet protocols.
|
|
