Technical Specifications for 1756-DNB
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Thermal Dissipation
|
19.8 BTU per hour
|
|
Part Number/Catalog No.
|
1756-DNB
|
Power Dissipation
|
5.8 Watts
|
|
Module Type
|
DeviceNet Comms Module
|
Backplane Current
|
580 milliamps
|
|
Manufacture Year
|
2021
|
Insulation Voltage
|
30 Volts Continuous
|
|
Product Package
|
Original Package
|
Operating Temperature
|
0-60 Celsius
|
About 1756-DNB
|
The 1756-DNB will communicate in the form of Diagnostic Tables, Inputs, and Outputs when the controller is involved. The I/O’s exchange configuration data, status information, and the I/O data of the device. The module communicates using strobe, poll, change of state, and/or cyclic messages with another device. These messages are used to gather from or deliver data to every device. The data received from a device will then be organized and made available to the controller (input data) and the data received from the controller will be sent to the device (output data).
The 1756-DNB's current draw at 5.1 Volts DC is 400 milliamps while it stays at 0 milliamps when the current draw is at 24 Volts DC. The power dissipation of this module is around 3.5 Watts and its thermal dissipation is at 11.9 BTU/hour. This module can be installed in any available chassis slot and is used together with the RSNetWorx.

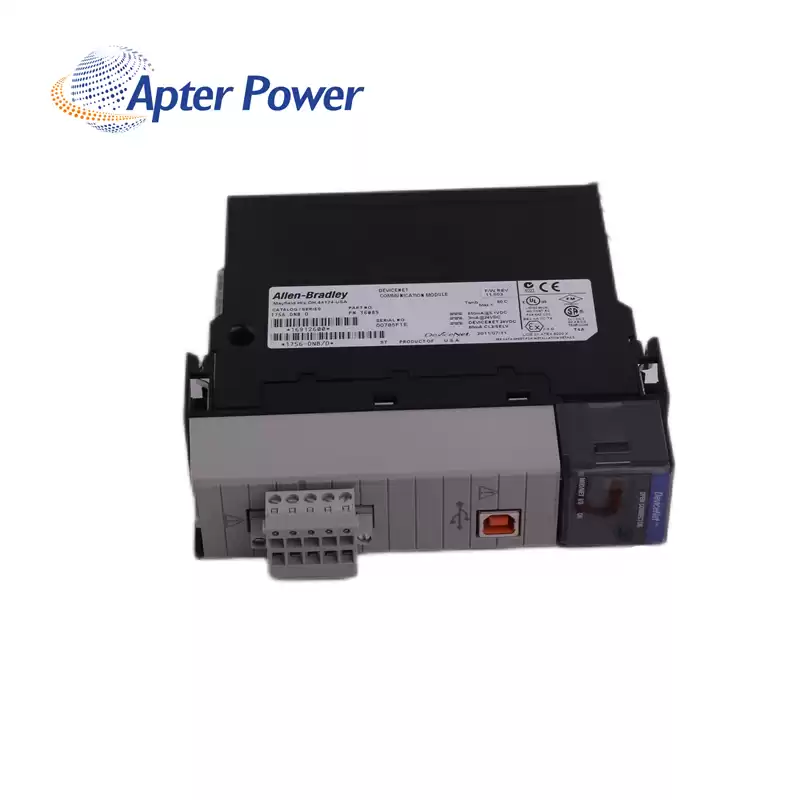

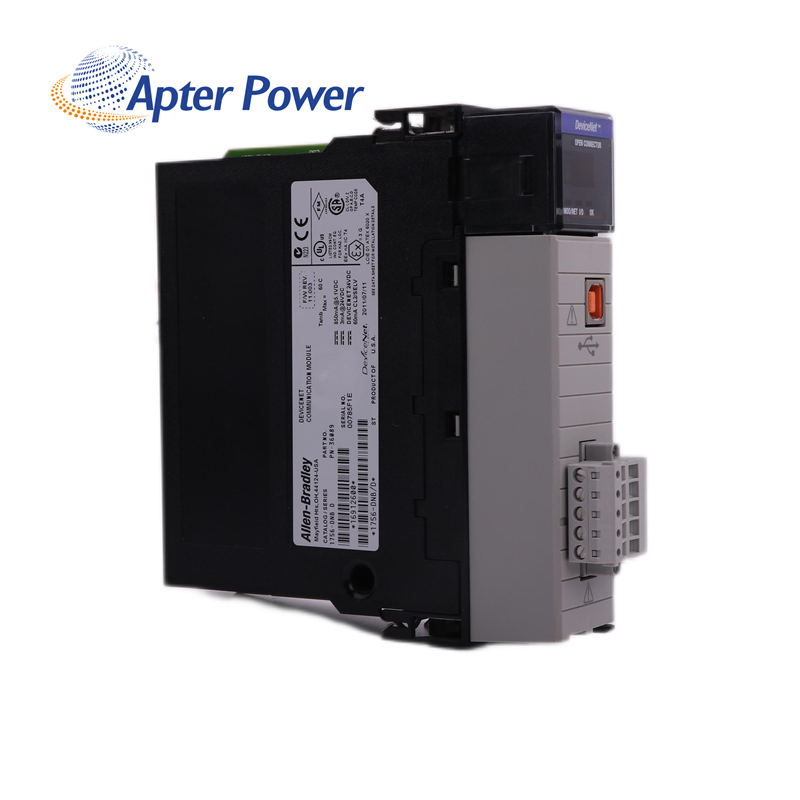

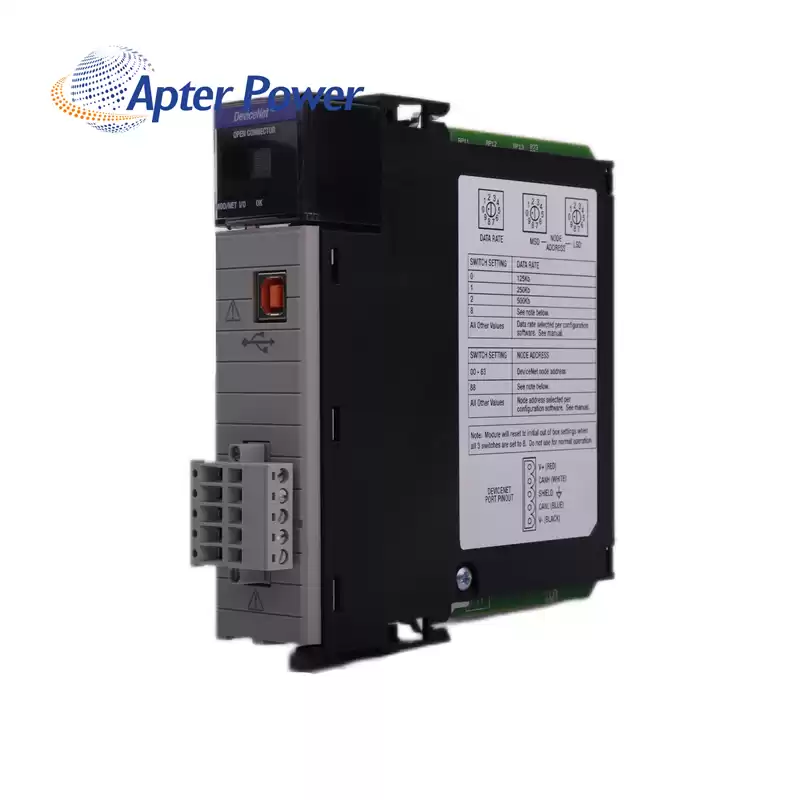

The 1756-DNB is a DeviceNet Scanner module that connects to a ControlLogix system. It serves as a bridge that collects data from the DeviceNet modules and then delivers a copy of the information to the controller and vice versa.
|
