Technical Specifications for 1756-EN2T
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Power Dissipation
|
6.2 W
|
|
Part Number/Catalog No.
|
1756-EN2T
|
Insulation Voltage
|
30 Volts
|
|
Module Type
|
EtherNet/IP bridge Module
|
Slot Width
|
1
|
|
Manufacture Year
|
2021
|
Current Rating
|
1.2 Amps
|
|
Product Package
|
Original Package
|
UPC
|
10612598329103
|
About 1756-EN2T
|

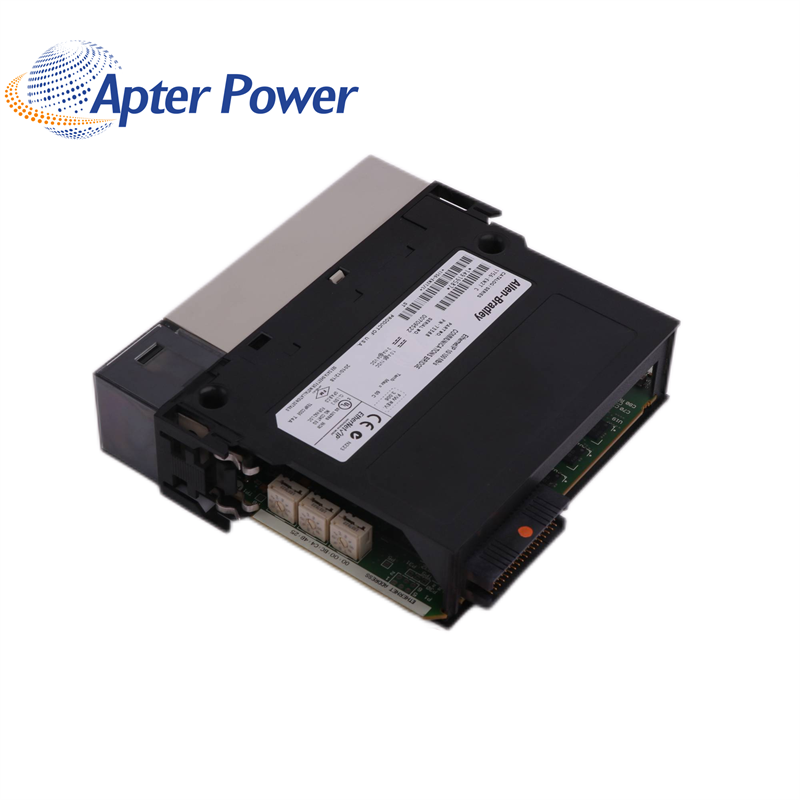

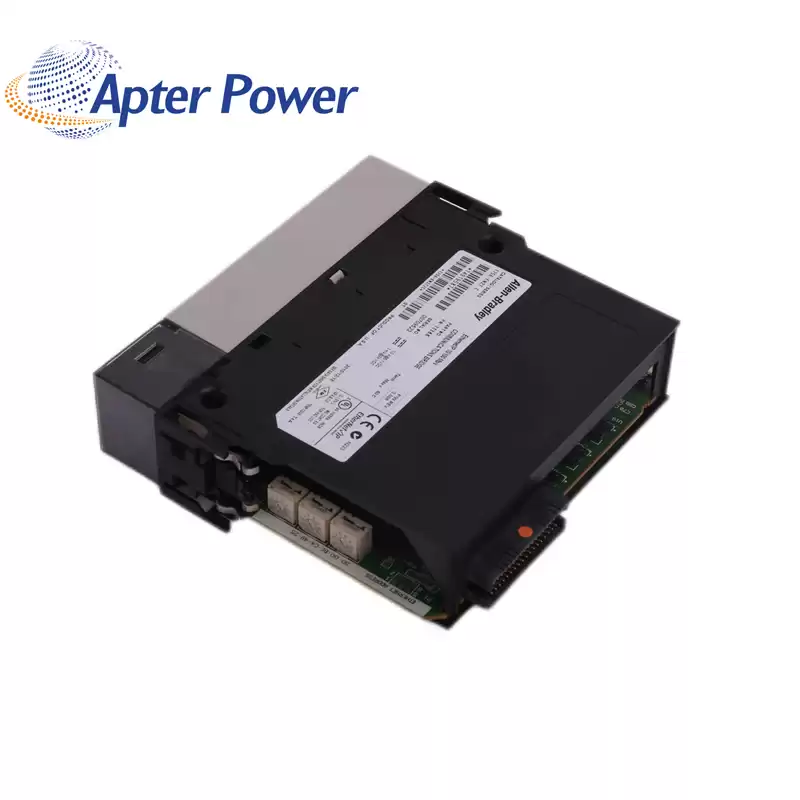

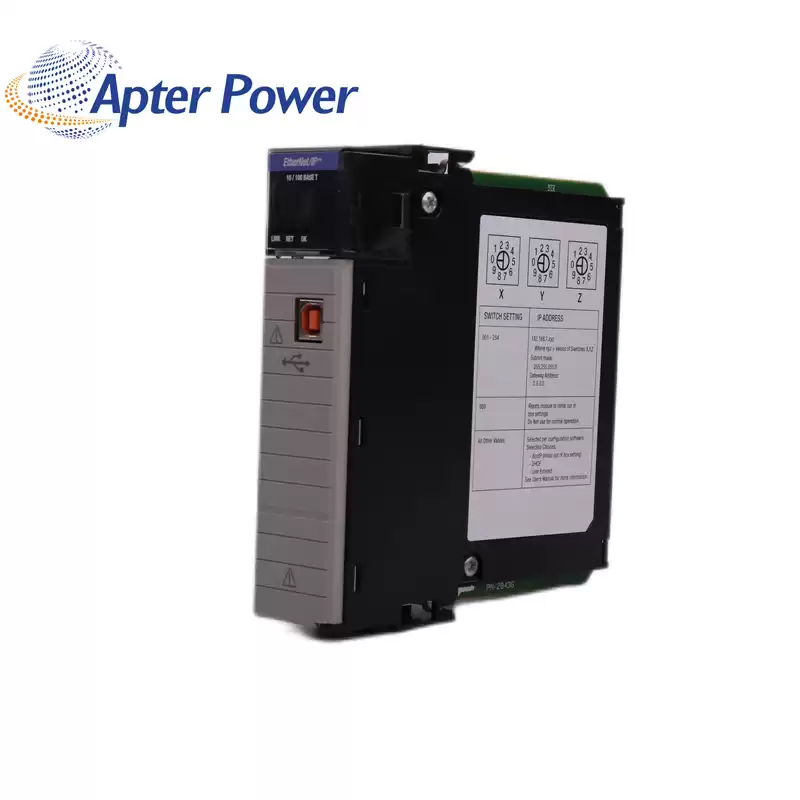

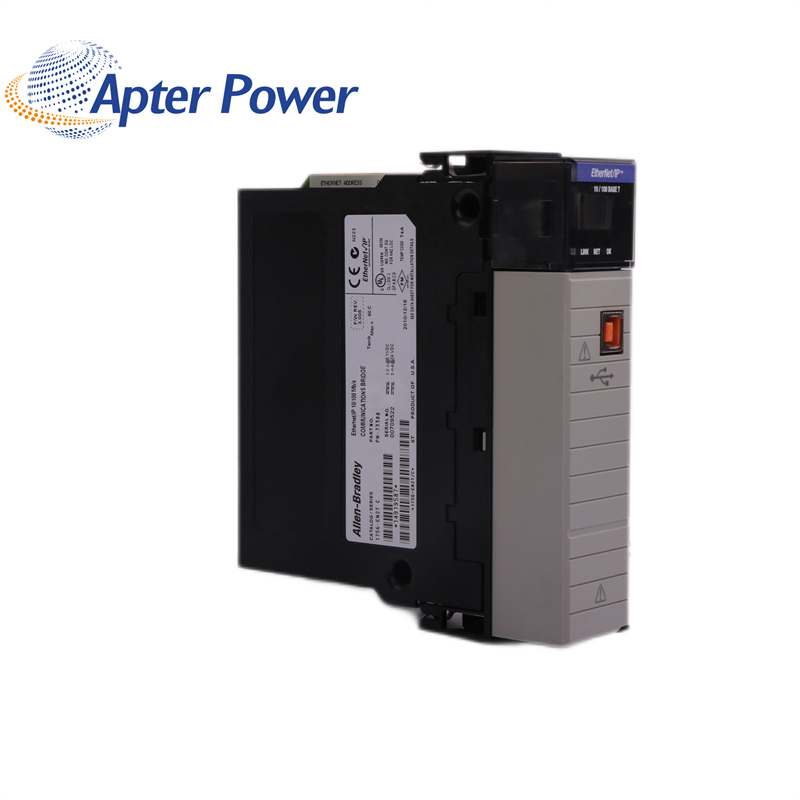

The 1756-EN2T is a ControlLogix Communication adapter that supports Ethernet I/P protocol. This module is a single slot module which may be installed to any slot of a ControlLogix chassis. It has One (1) RJ45 port that is used to interface with Ethernet network.
The 1756-EN2T is a part of the ControlLogix Communication Module series. It is an EtherNet/IP (Ethernet Industrial Protocol) interface communication module. It supports general messaging, real-time I/O messaging, and information exchange for applications like Real-Time Control, Time Synchronization, and Motion. The 1756-EN2T also has the CIP safety standard by allowing simultaneous transfer of safety and control data and diagnostics information. It uses advanced communication chips and physical media.
The 1756-EN2T supports 10 to 100 Mbps EtherNet/IP communication rates and uses Twisted pair copper media. It supports 256 Logix and 128 TCP/IP communication connections. It can support a maximum of 8 axes for integrated motion on the Ethernet/IP Network and draws 1 A current at 5.1 Volts DC. It has a maximum power dissipation of 5.1 Watts and thermal dissipation of 17.4 BTU/hour.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
