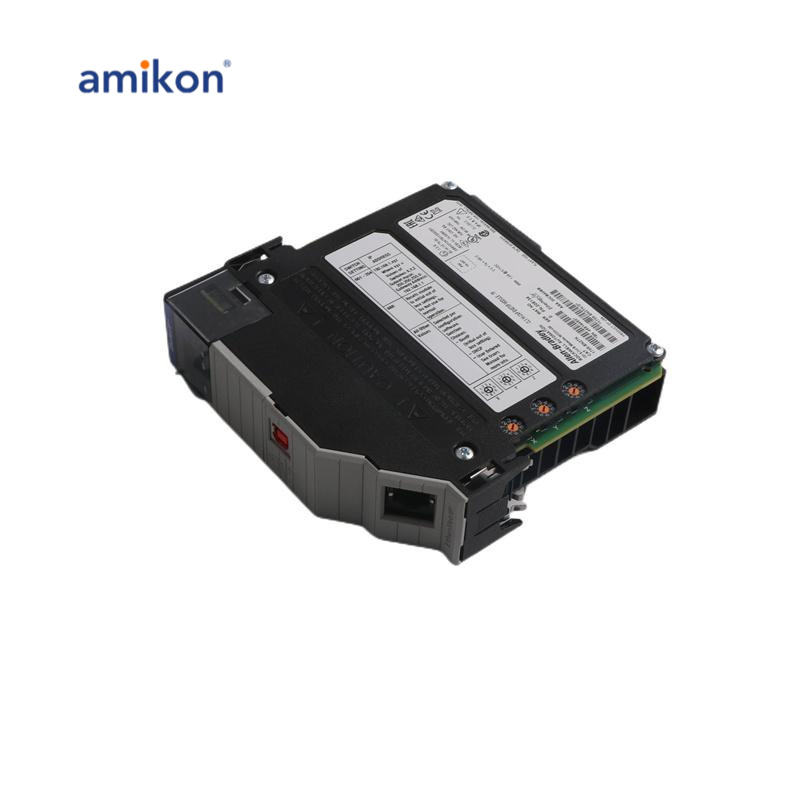

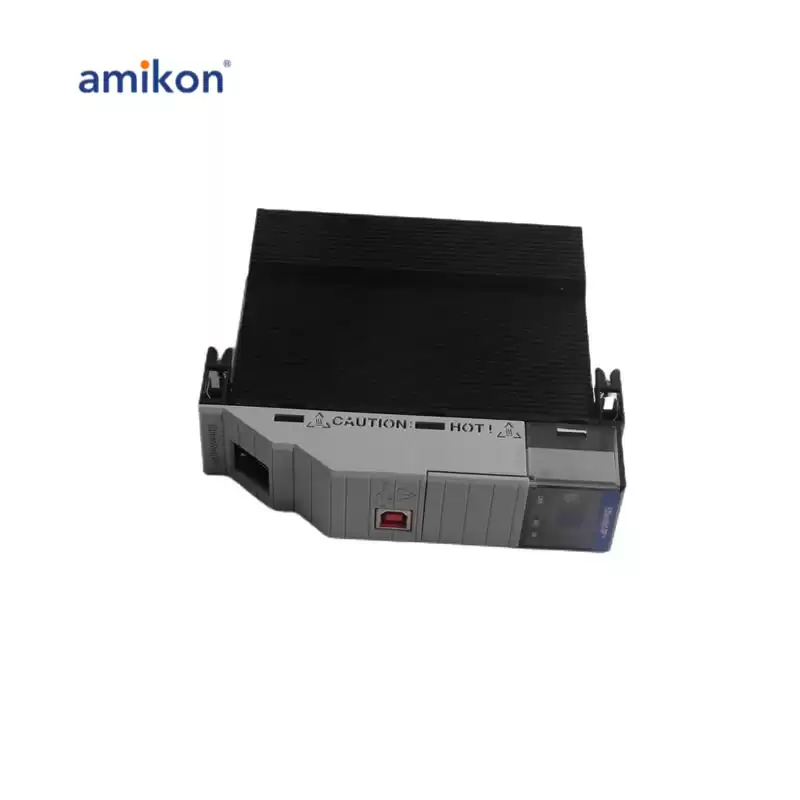

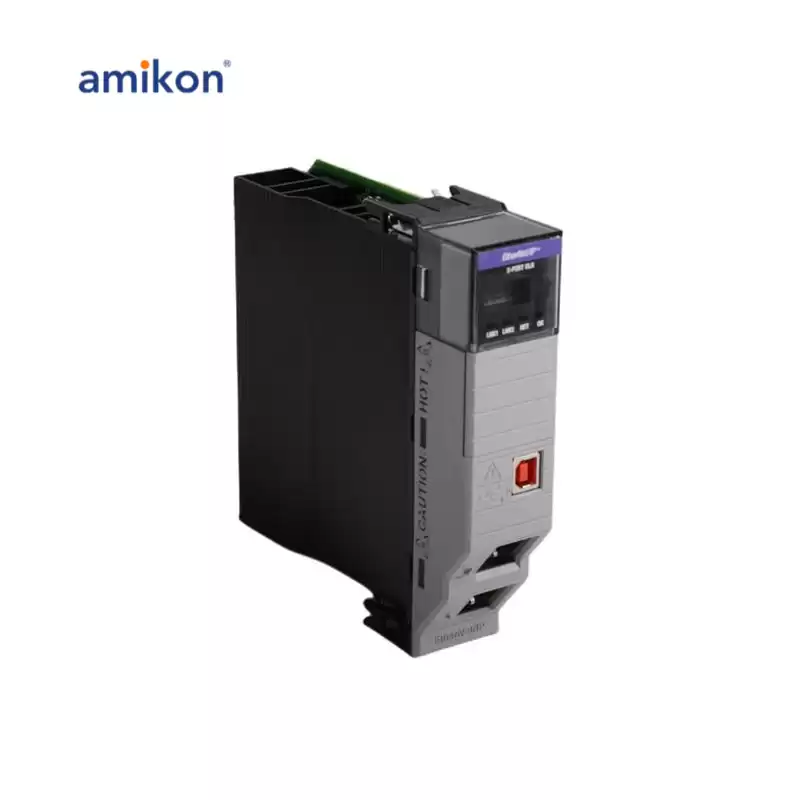

ControlLogix Communication adapter that supports Ethernet I/P protocol. This module is a single slot module which may be installed to any slot of a ControlLogix chassis. It has One (1) RJ45 port that is used to interface with Ethernet network.
|
|
1756-EN2T Description:
|
It is an EtherNet/IP (Ethernet Industrial Protocol) interface communication module. It supports general messaging, real-time I/O messaging, and information exchange for applications like Real-Time Control, Time Synchronization, and Motion.
|
|
also has the CIP safety standard by allowing simultaneous transfer of safety and control data and diagnostics information. It uses advanced communication chips and physical media.
|
|
It can support a maximum of 8 axes for integrated motion on the Ethernet/IP Network and draws 1 A current at 5.1 Volts DC. It has a maximum power dissipation of 5.1 Watts and thermal dissipation of 17.4 BTU/hour.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
