Brand Name AB
Product reference 1756-IA16
The Allen-Bradley 1756-IA16 is a ControlLogix Digital I/O Module.
In particular, it is an AC Digital Input Module that connects to a ControlLogix chassis and requires an RTB, removable terminal block, a 1492 IFM, or an interface module, to connect all field-side wiring. It has 8 diagnostic inputs, with 8 points per group. The 1756-IA16 has features that users can configure, namely ‘change of state’ and ‘input filter times’, which can be done using the RSLogix 5000.
The module's operating voltage range is from 74 to 132 Volts AC and 47 to 63 Hertz, while both the voltage category and input voltage are 120 Volts AC and 50/60 Hertz. If screwed to the backplane, the input delay time from 'off' to 'on' is 10 milliseconds max plus the filter time (this is user-selectable at 1 or 2 milliseconds) for hardware delay and 8 milliseconds max plus filter time (also user-selectable at 9 or 18 milliseconds) from 'on' to 'off'. At 5.1 Volts DC, the current draw is 100 milliamps and 2 milliamps current draw at 24 Volts DC. The total backplane power is 0.58 Watts and it dissipates 5.8 Watts of power at 60 Degrees Celsius for and 18.41 BTU/hour of thermal energy.
The maximum off-state voltage is 20 Volts and current is 2.5 milliamps. The on-state current of the 1756-IA16, on the other hand, ranges from a minimum of 5 milliamps at 74 Volts AC to a maximum of 13 milliamps at 132 Volts AC. The maximum recorded inrush current is 250 milliamps peak, decaying to less than 37% in 22 milliseconds, without activation.
The ControlLogix® architecture provides a wide range of input and output modules to span
many applications, from high-speed digital to process control. The ControlLogix architecture
uses Producer/Consumer technology, which allows input information and output status to be
shared among multiple ControlLogix controllers.

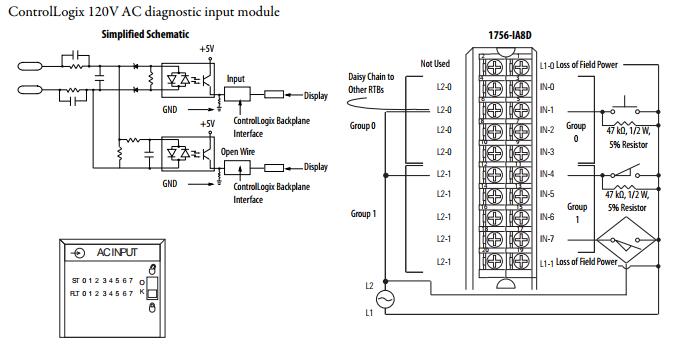

Each ControlLogix I/O module mounts in a ControlLogix chassis and requires either a
removable terminal block (RTB) or a 1492 interface module (IFM) to connect all field-side
wiring. RTBs and IFMs are not included with the I/O modules. They must be ordered
separately
