About product:

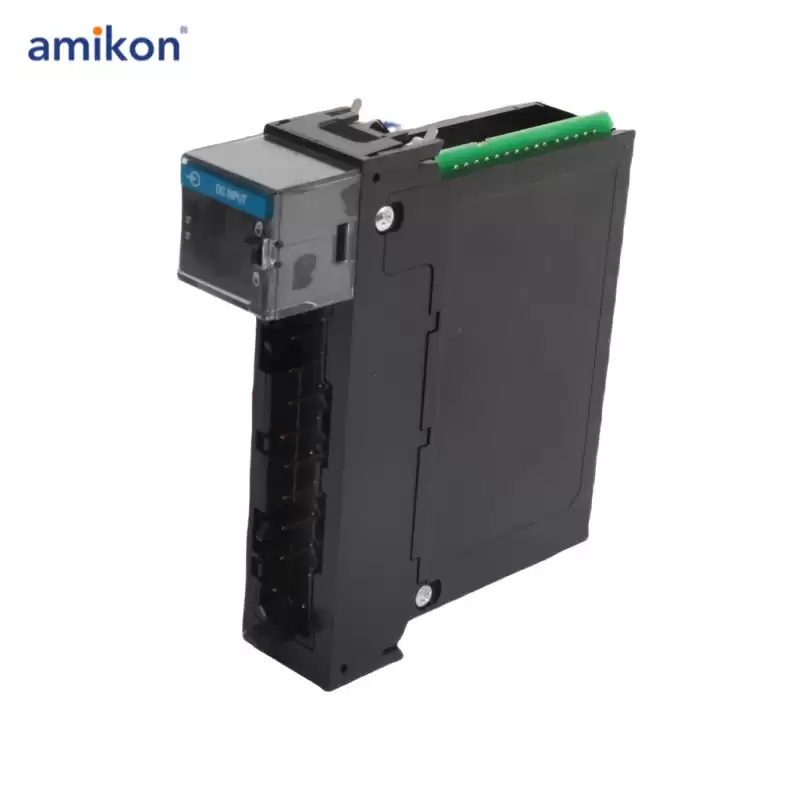

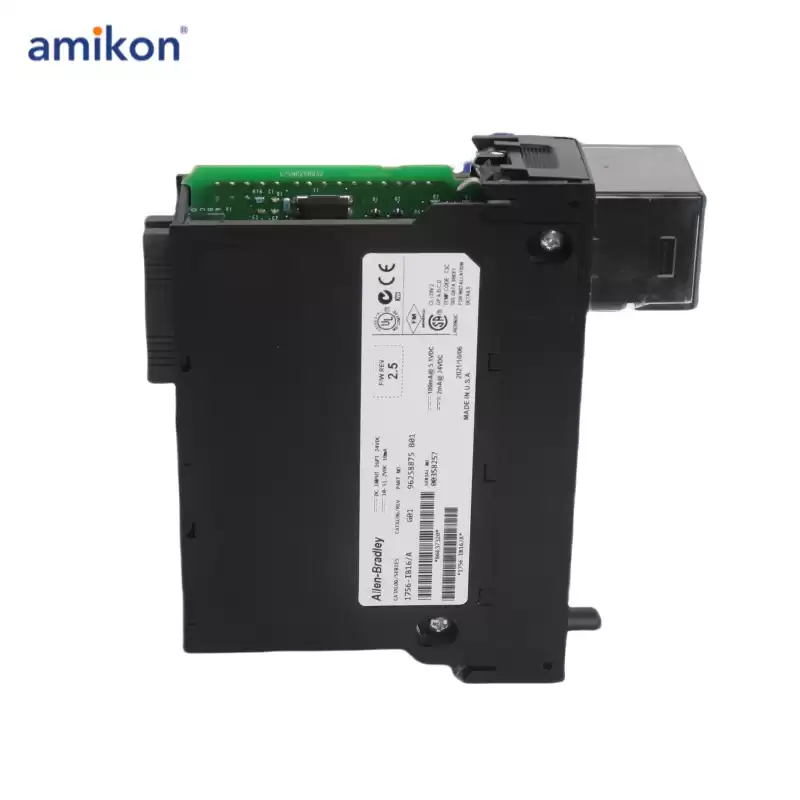

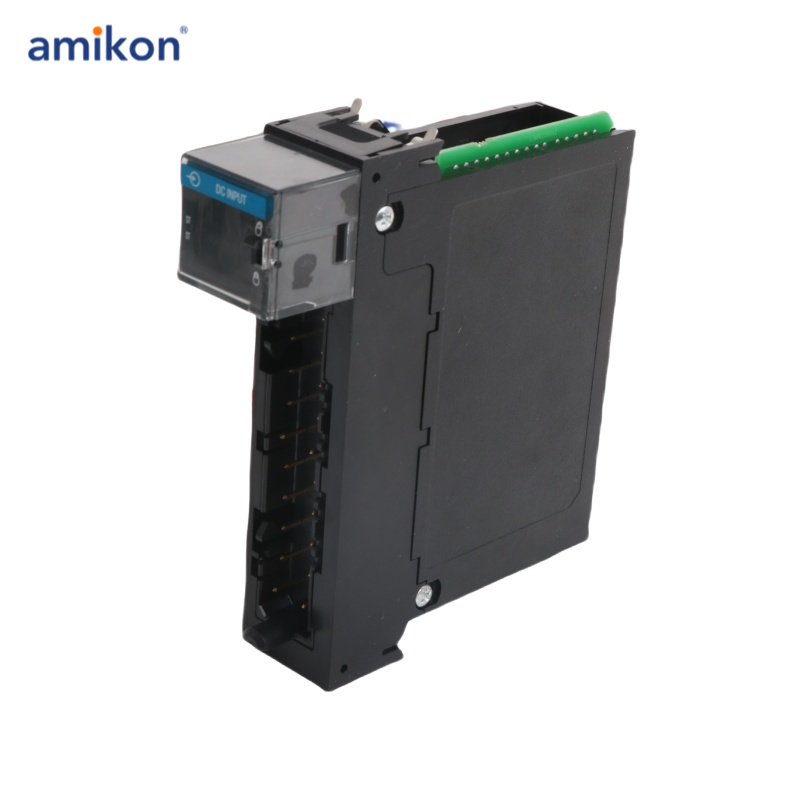

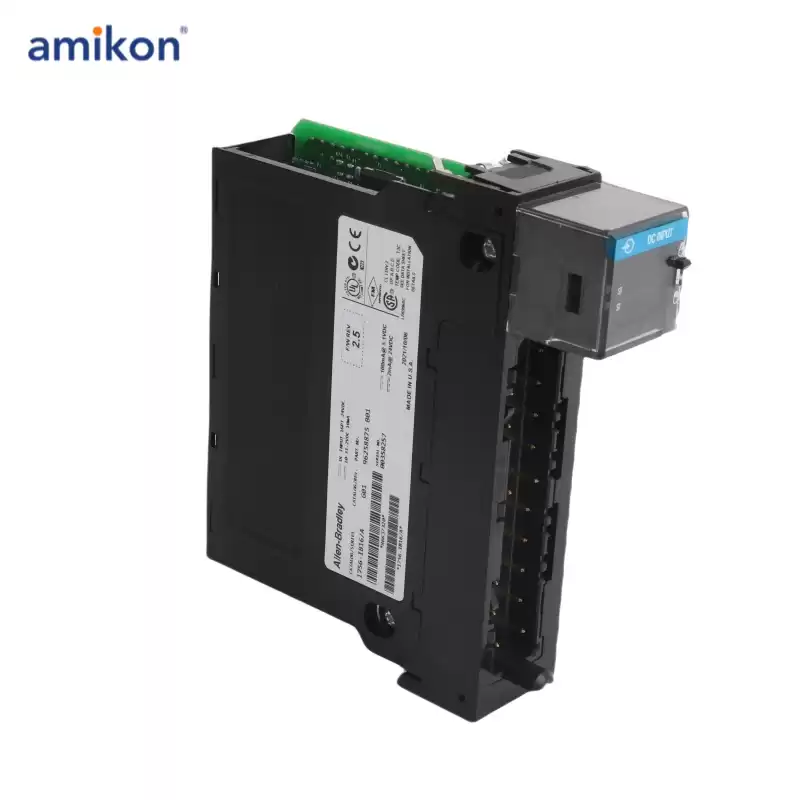

The 1756-IB16 is a 16-point digital DC input module, designed for integration into industrial control systems. This module features 8 points per group and can be connected to a compatible chassis, supporting efficient system integration. The module is compatible with removable terminal block housings (RTBs) such as the 1756-TBNH 20-position NEMA RTB and the 1756-TBSH 20-position spring clamp RTB.
Before installation, it is essential to ensure that the appropriate RTB is available and that the chassis and power supply are correctly installed and grounded. The nominal input voltage for the 1756-IB16 module is 24 VDC, with a voltage category of 12/24 VDC sink, offering versatile compatibility with a range of DC control systems.
This setup allows for flexible and reliable input configurations in various industrial environments.
Specifications:
|
Specification
|
Details
|
|
Part Number/Catalog No.
|
1756-IB16
|
|
Inputs
|
16
|
|
Module Type
|
Digital DC Input Module
|
|
No. of Inputs
|
Thirty-Two (32) Inputs
|
|
Input Voltage
|
12-24 Volts DC Sink
|
|
Operating Voltage Range
|
10-31.2 Volts DC
|
|
Module Keying
|
Electronic
|
|
Maximum Operating Current
|
10 milliamperes at 31.2 Volts DC
|
|
Input Delay Time
|
2 milliseconds plus selected filter time
|
|
Maximum Input Current, Off-State
|
1.5 milliamperes
|
|
Minimum Operating Current
|
2 milliamperes at 10 Volts DC
|
|
Backplane Current at 24 Volts
|
2 milliamperes
|
|
Backplane Current at 5.1 Volts
|
120 milliamperes
|
