Manufacturer
|
Allen Bradley
|
|
Part Number
|

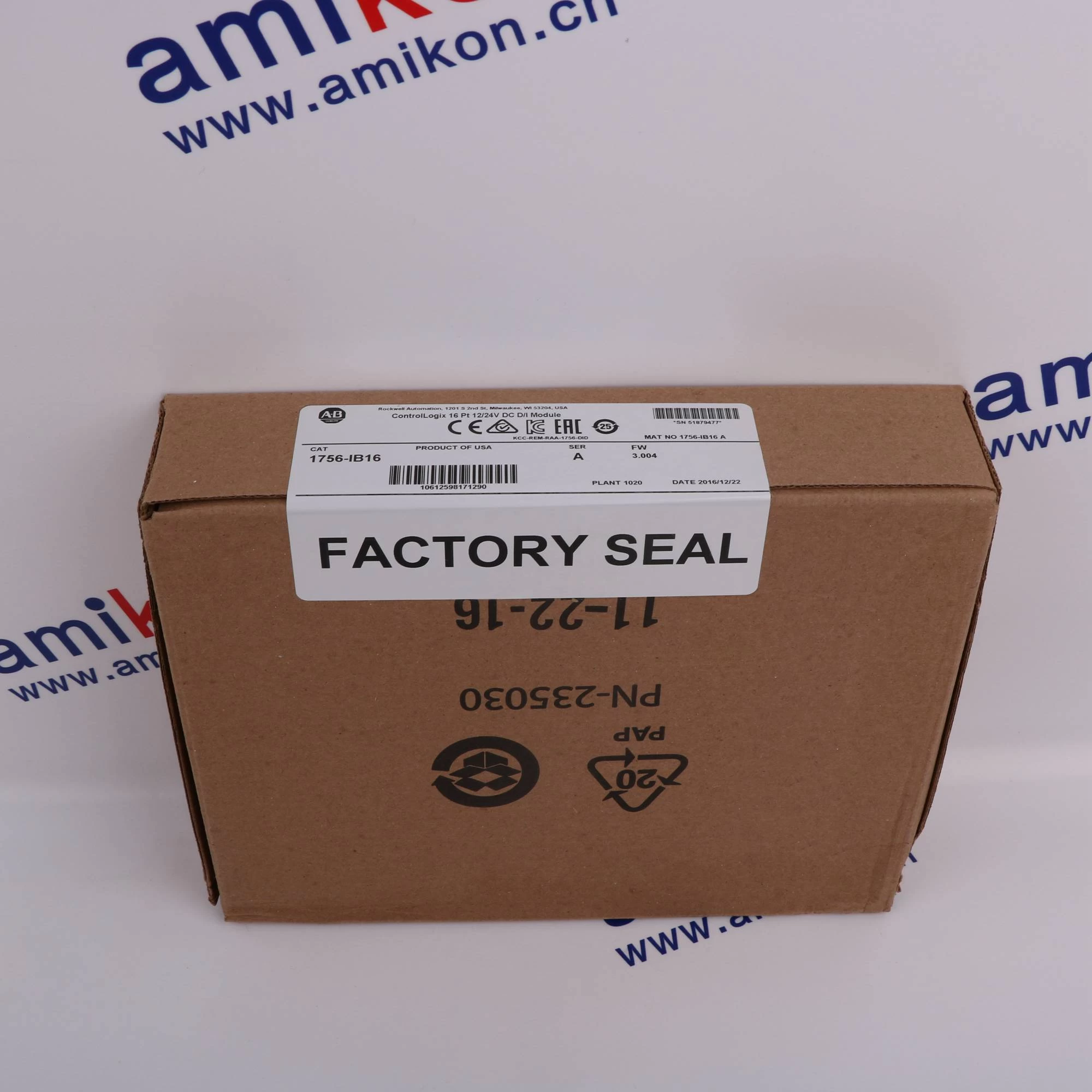

1756-IB16
|
|
Product Type
|
Input Module 16 Points (20 Pin)
|
|
Product Status
|
IN STOCK
|
|
Country of Origin
|
USA
|
|
Inputs
|
16 (8 points/group)
|
|
Voltage category
|
12/24V DC sink
|
|
Operating voltage range
|
10…31.2V DC
|
|
Input voltage, nom
|
24V DC
|
|
Input delay time (screw to backplane)
|
|
|
Off to On
|
Hardware delay: 290 s nom/1 ms max + filter time
|
|
|
User-selectable filter time: 0 ms, 1 ms, or 2 ms
|
|
On to Off
|
Hardware delay: 700 s nom/2 ms max + filter time
|
|
|
User-selectable filter time: 0, 1, 2, 9, or 18 ms
|
|
Current draw @ 5.1V
|
100 mA
|
|
Current draw @ 24V
|
2 mA
|
|
Total backplane power
|
0.56 W
|
|
Power dissipation, max
|
5.1 W @ 60 °C (140 °F)
|
|
Thermal dissipation
|
17.39 BTU/hr
|
|
Off-state voltage, max
|
5V
|
|
Off-state current, max
|
1.5 mA
|
|
On-state current, min
|
2 mA @ 10V DC
|
|
On-state current, max
|
10 mA @ 31.2V DC
|
|
1756-RM
|
1762-IQ16
|
|
1756-RM/A
|
1762-IQ32T
|
|
1756-RMC10
|
1762-IQ8
|
|
1756SC-IF8U
|
1762-IQ8OW6
|
|
1756-TBCH
|
1762-IT4
|
|
1756-TBNH
|
1762-L24AWA
|
|
1756-TBS6H
|
1762-L24BWA
|
|
1761-CBL-HM02
|
1762-L24BXB
|
|
1762-IF2OF2
|
1762-L40BWA
|
|
1762-IF4
|
1762-OA8
|
EMAIL: sales2@amikon.cn (click!)
1)100% full New! - Original Factory Seal
2)Warranty: 12 months!
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3 days after payment
5)Payment: T/T 100% in advance
