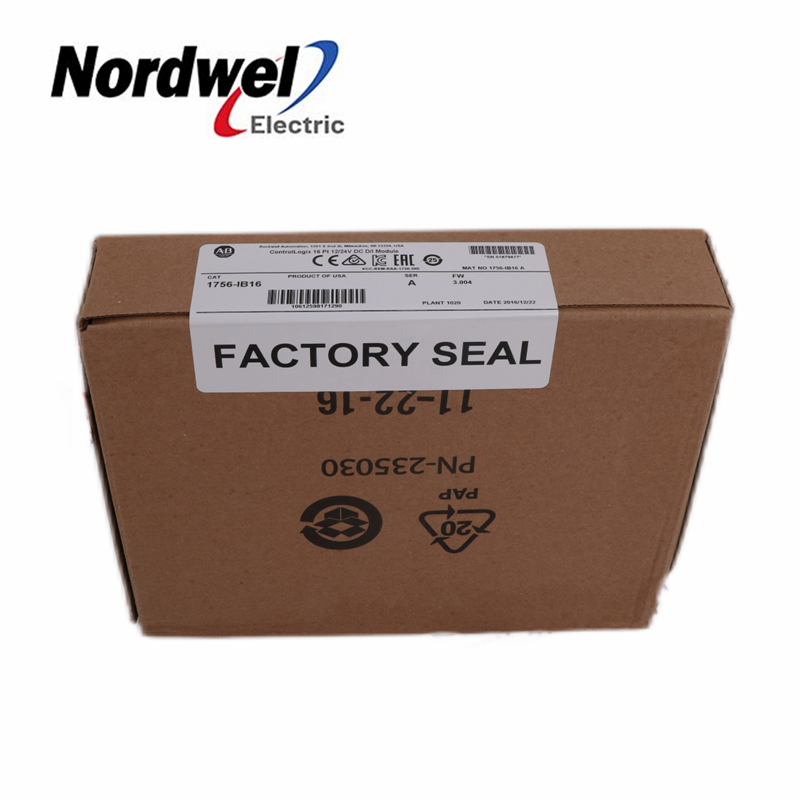

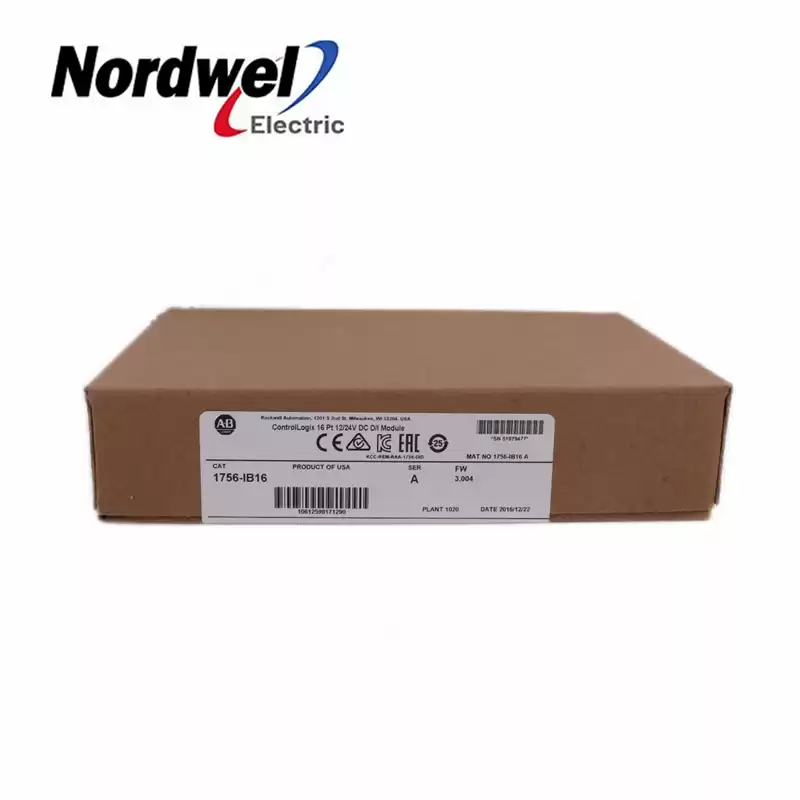

Technical Specifications for 1756-IB16
Introduction: Input Module | ControlLogix
Enclosure Type: None (Open-Style)
Inputs: 16 (8 Points/Group)
Voltage Category: 12/24V DC Sink
Operating Voltage Range: 10-31.2 Volts DC
Input Voltage, Nom: 24V DC
Current Draw @ 5.1V: 100 mA
Current Draw @ 24V: 2 mA
Total Backplane Power: 0.56 W
Power Dissipation, Max: 5.1 W @ 60 C (140 F)
Thermal Dissipation: 17.39 BTU/hr
Isolation Voltage: 250V (Continuous)
Reverse Polarity Protection: Yes
