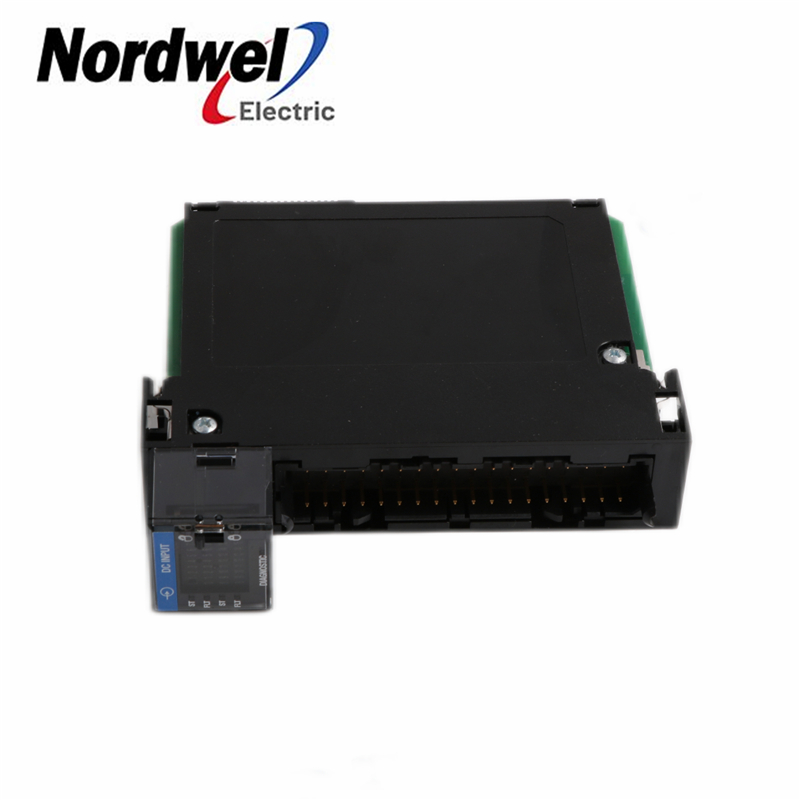

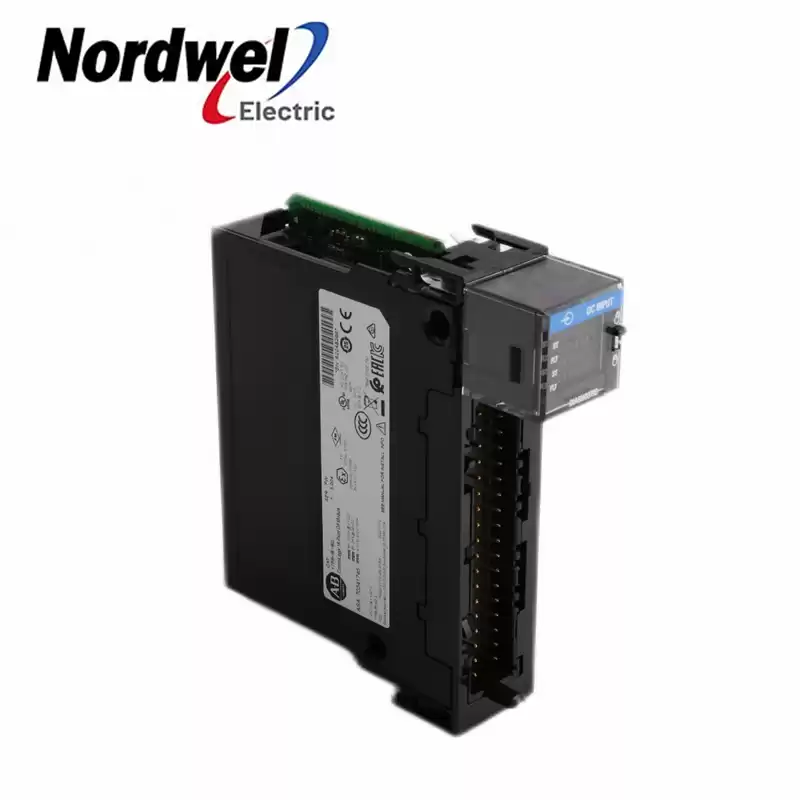

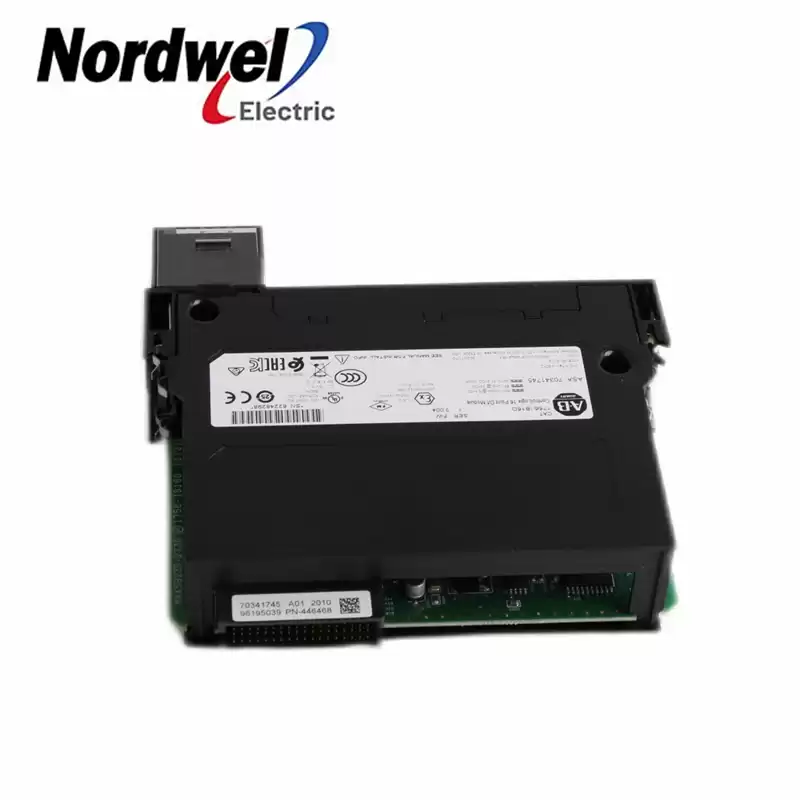

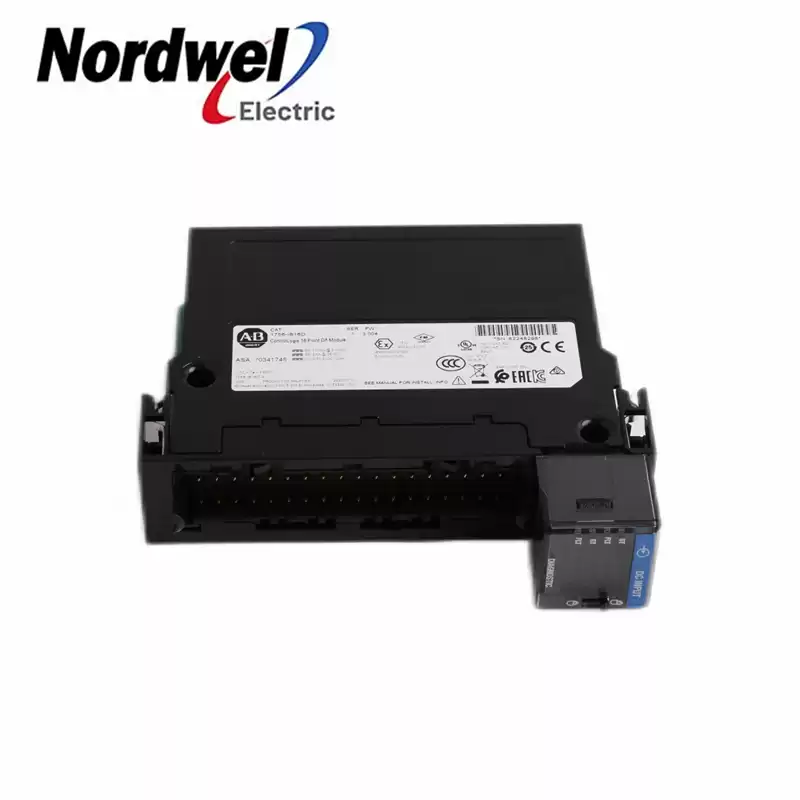

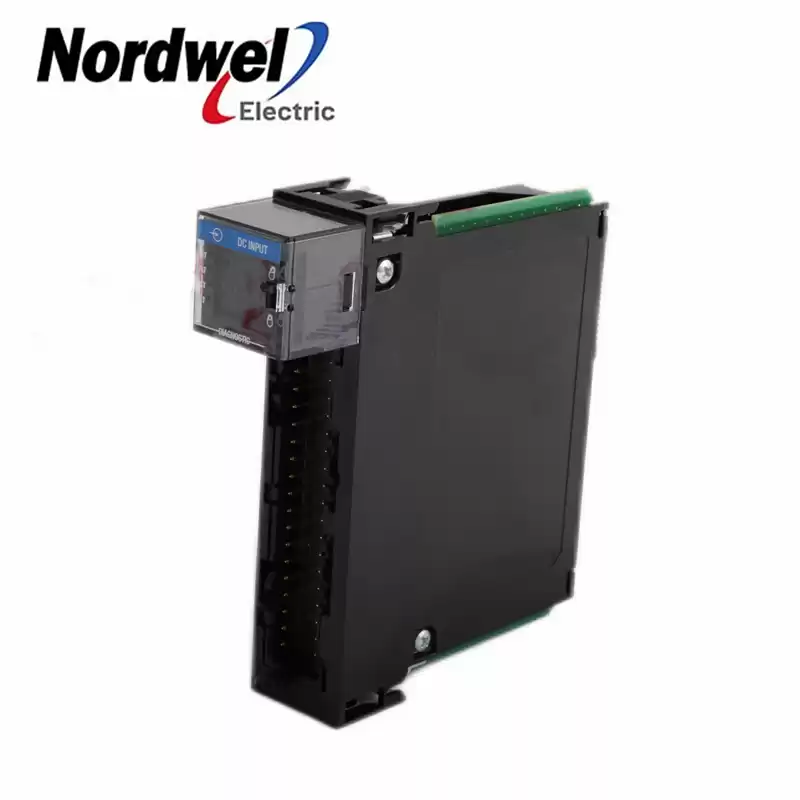

ControlLogix Digital DC Input Module with 16 Diagnostic Inputs Inputs
Technical Specifications for 1756-IB16D
Manufacturer Automation
Brand
Part Number/Catalog No. 1756-IB16D
Series ControlLogix
Module Type Digital DC Input Module
Inputs 16 Diagnostic Inputs
Input Voltage 12-24 Volts DC Sink
Operating Voltage Range 10-30 Volts DC
Input Delay Time 4 milliseconds plus selected filter time
Minimum Operating Current 2 milliamperes at 10 Volts DC
Maximum Operating Current 13 milliamperes at 30 Volts DC
Maximum Input Current, Off-State 1.5 milliamperes per point
Power Dissipation (Max) 5.8 Watts at 60 degrees Celsius
Backplane Current at 5 Volts 150 milliamperes
Removeable Terminal Block(s) 1756-TBCH, 1756-TBS6H
