1756-IB16ISOE A-B IN STOCK WITH HIGH QUALITY

Allen Bradley ControlLogix Digital DC Isolated Input Sequence of Events with 16 Individually Isolated; Sequence of Events Inputs















1756-IB16ISOE/A-B IN STOCK WITH HIGH QUALITY

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450



Brand Name                 AB


Product reference       1756-IB16ISOE


The Allen-Bradley 1756-IB16ISOE is a ControlLogix Digital I/O Module.

This digital input module has 16 inputs available which are all individually isolated. The module has features, such as change-of-state, that are configured and monitored via RSLogix 5000 software. This module requires a removable terminal block housing, or RTB, of either 1756-TBCH or 1756-TBS6H.


The operating voltage range of this module is from 10 to 55V DC with a nominal input voltage of 24V DC and a voltage category of 24/48V DC sink/source. It has a current draw of 320 mA at 5.1V and 2mA at 24V, with a total backplane power of 1.7W. The thermal dissipation of this module is 17.22 BTU/hour while power dissipation is 5.5 W at 60 Degrees Celsius. The on-state current for this module varies from 2.0 mA at 9V DC to 5.1 mA at 48 to 55V DC, although the nominal current is 4.5 mA at 4 to 31V DC. The maximum off-state current is 1.5 mA and the maximum voltage is 5V.

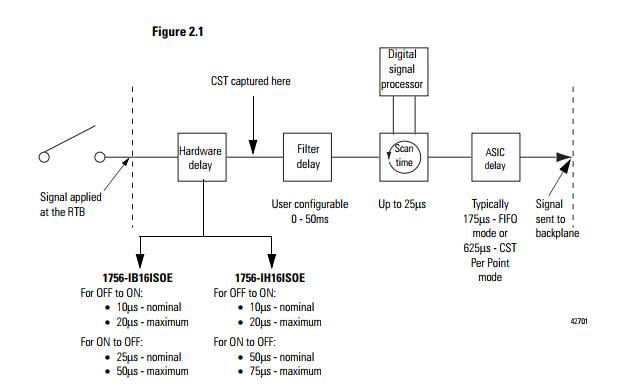

The input delay times of this module vary based on the following factors: hardware delay time, firmware scan time, filter time, and ASIC delay. Off-to-On has a hardware delay time of up to 20 µs, a firmware scan time of up to 25 µs, a filter time between 0 to 50 ms, and an ASIC delay of 175 µs FIFO or 625 µs per point. On-to-Off has a hardware delay time of up to 50 µs and a firmware scan that lasts up to 25 µs with the same filter time range and ASIC delay times as off-to-on.

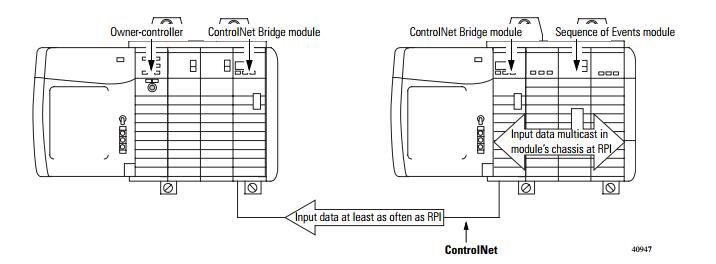

Remote Input Module Connected Via ControlNet When a Sequence of Events module resides in a remote chassis connected by a scheduled ControlNet network, the RPI: • instructs the module to multicast data in its own chassis at a specific interval. • reserves a “spot” in the stream of data flowing across the ControlNet network. The timing of this “reserved” spot may or may not coincide with the exact value of the RPI, but the control system guarantees that the owner-controller receives data at least as often as the specified RPI.
