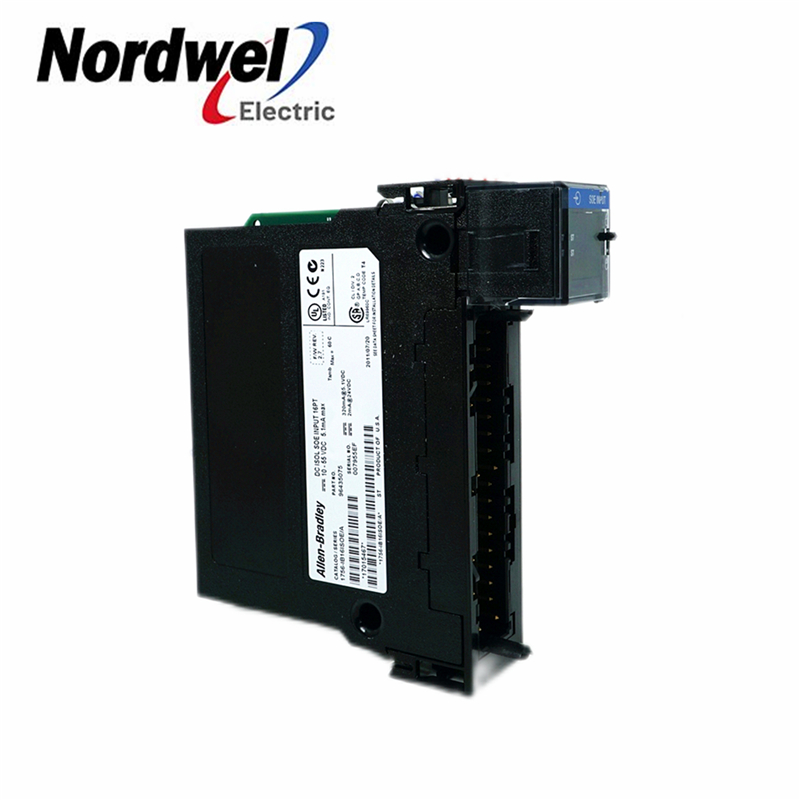

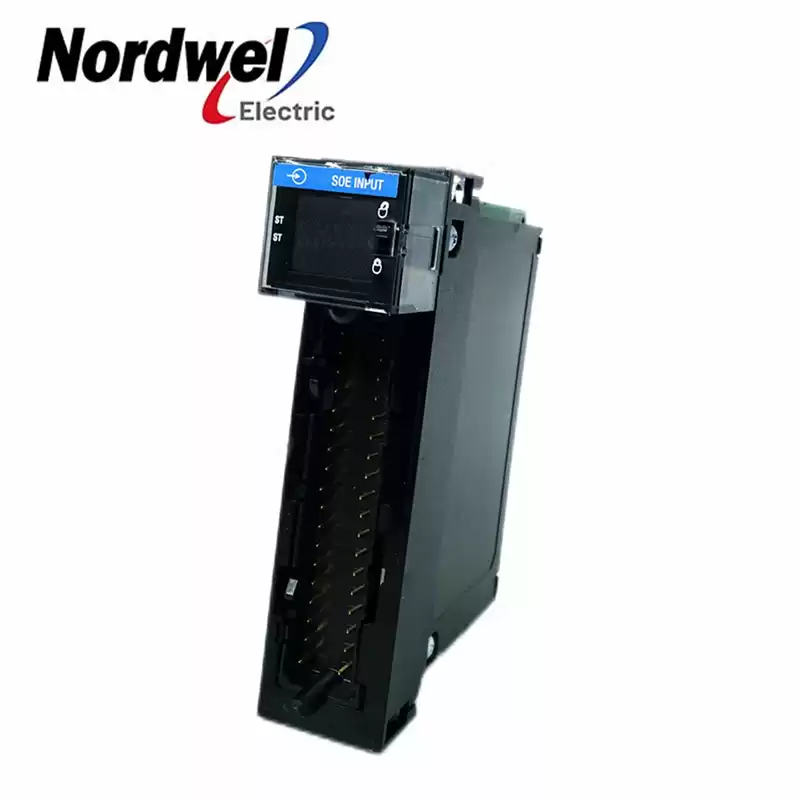

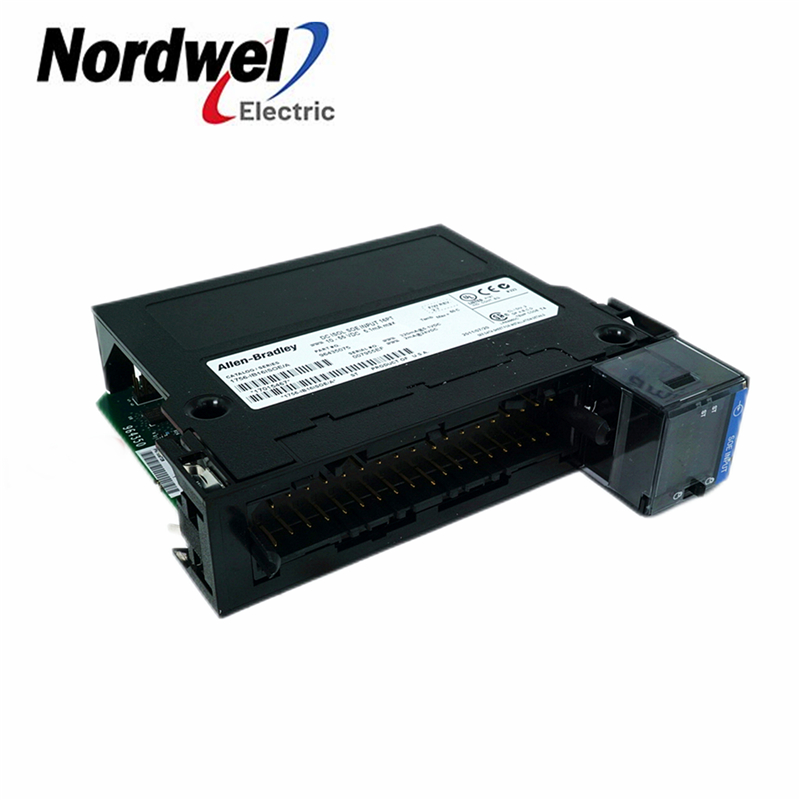

Introduction: Input Module | ControlLogix
Enclosure type: None (open-style)
Inputs: 16 individually isolated, sequence of events
Voltage category: 24/48V DC sink/source
Operating voltage range: 10-55V DC
Input voltage, nom: 24V DC
Current draw @ 5.1V: 320 mA
Current draw @ 24V: 2 mA
Total backplane power: 1.7 W
Power dissipation, max: 5.5 W @ 60 C (140 F)
Thermal dissipation: 17.22 BTU/hr
Isolation voltage: 250V (continuous) inputs-to-backplane | 125V (continuous) input-to-input
Reverse polarity protection: Yes
