Technical Specifications for 1756-IC16
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Inputs
|
16
|
|
Part Number/Catalog No.
|
1756-IC16
|
Input Delay Time
|
4 milliseconds
|
|
Module Type
|
DC Input Module
|
Voltage Range
|
30-60 Volts DC
|
|
Manufacture Year
|
2021
|
Input Voltage
|
48 Volts DC
|
|
Product Package
|
Original Package
|
UPC
|
10612598115946
|

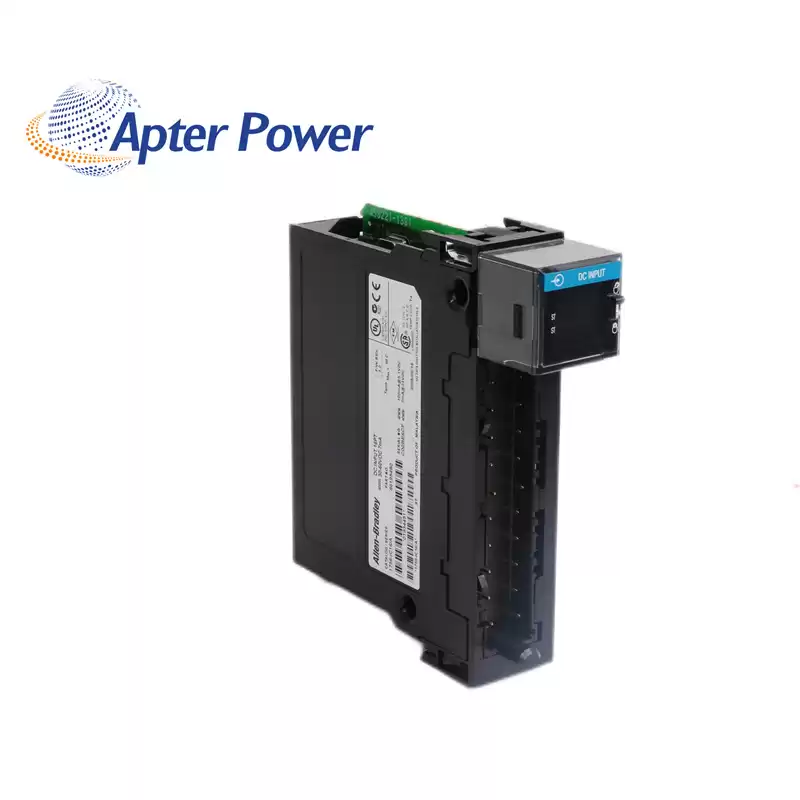

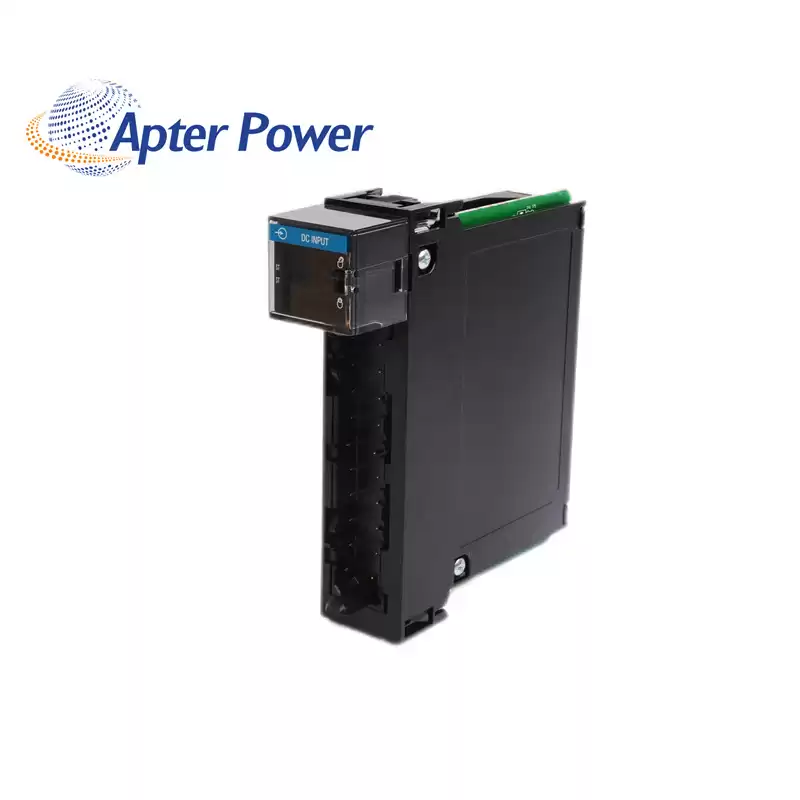

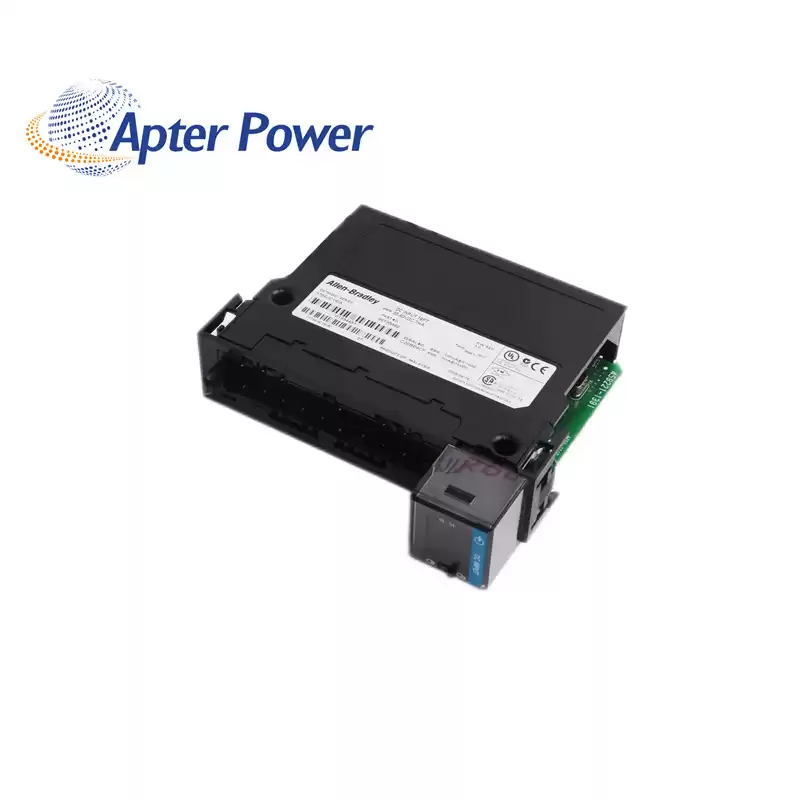

About 1756-IC16
|
The 1756-IC16 has a nominal input voltage of 48V DC and a similar voltage category, at 48V DC sink. Its operating voltage range varies depending on the temperature; at 60 Degrees Celsius, it ranges from 30 to 55V DC and at 55 Degrees Celsius, it goes from 30 to 60V DC. The backplane current of this module at 5.1V is 100 mA, while at 24V, it is 3 mA. For the current during an on-state, it has a minimum of 2 mA at 30V and a maximum of 7 mA at 60V.
The 1756-IC16 has a maximum power dissipation of 5.2W at 60 Degrees Celsius and a maximum thermal dissipation of 17.73 BTU/hr. It also has a maximum inrush current of 250 mA.The input delay time for Off-to-On and On-to-Off differ. For Off-to-On, there is a hardware delay of up to 1 ms plus a user-configurable filter time of either 0, 1, or 2 ms.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
