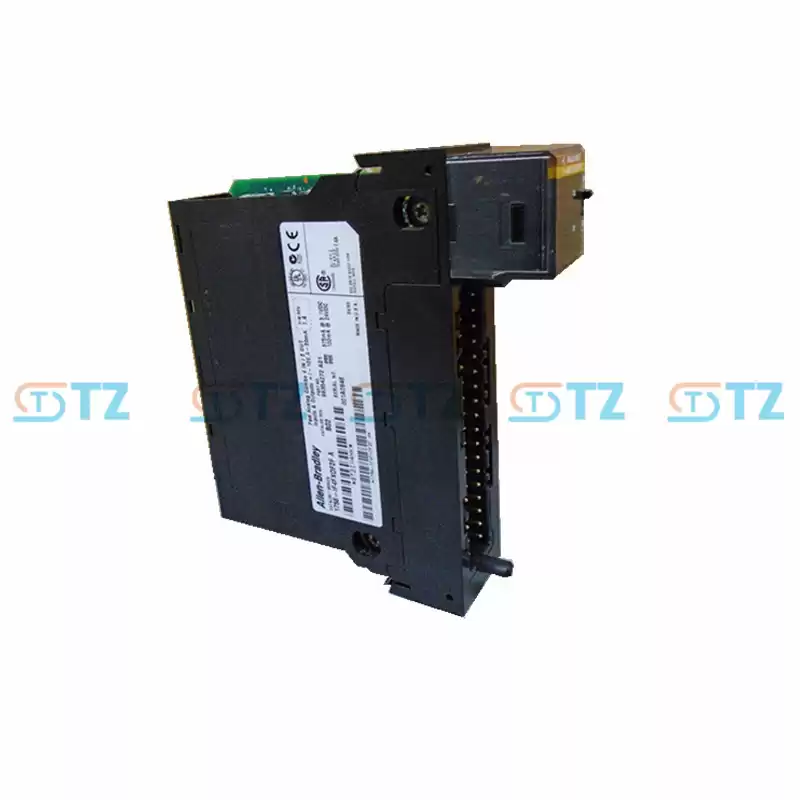

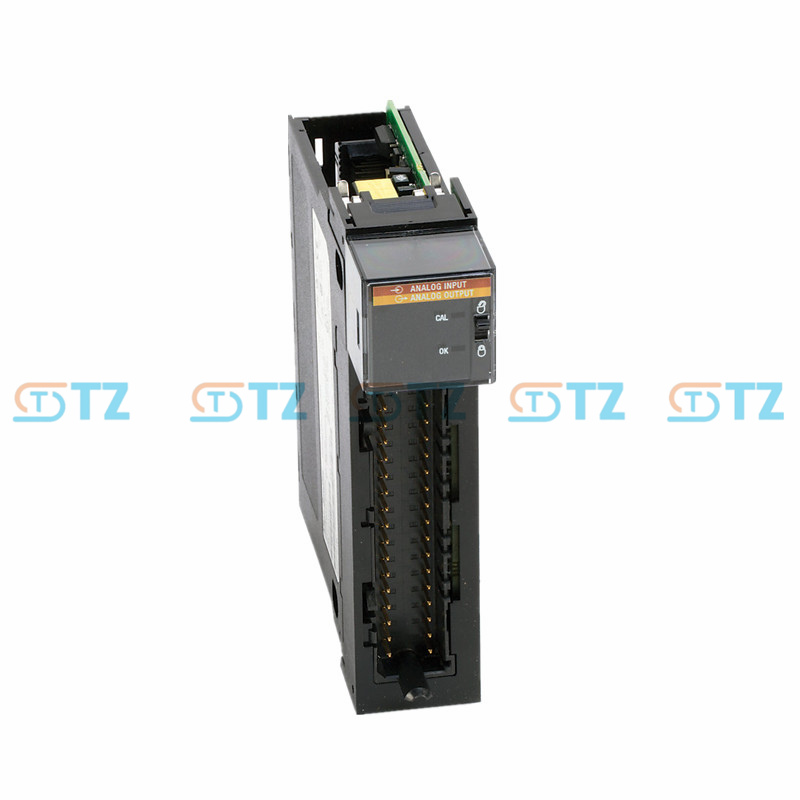

1756-IF4FXOF2F Allen Bradley Rockwell Analog Combination Module

1756-IF4FXOF2F is a ControlLogix module.

HS CODE : 8538909200



Type of electric connection Screw-/spring clamp connection

Output range ±10V, 0…20 mA

Terminal block torque specifications 1756-TBCH: 0.5 Nm (4.4 lb.in)

Input conversion method Successive approximation

Module keying Electronic, software configurable

Offset drift 50 µV/°C, 1 µV/°C

Output conversion method R-Ladder DAC, monotonicity with no missing codes

Drive capability Voltage: >2000 Ω, Current: 0...750 Ω

Input range ±10V, 0...10V, 0...5V, 0...20 mA

Data format Integer mode (left justified, 2 s complement) IEEE 32-bit floating point

Wire category 2 - on signal ports

Overvoltage protection Voltage: 30V DC, input, Current: 8V AC/DC, input, Output: 24V DC

Module error Input: 0.2% of range, Voltage: 0.2% of range, output, Current: 0.3% of range, output

Gain drift with temperature Voltage: 25 ppm/°C maximum, input, Current: 35 ppm/°C maximum, input, Voltage: 25 ppm/°C maximum, output, Current: 50 ppm/°C maximum, output

Voltage and current ratings Backplane: 375 mA @ 5.1V DC, 100 mA @ 24V DC, Analog inputs: -10...+10V, 4...20 mA, Analog outputs: -10...+10V, 4...20 mA

Module scan time 300 µs minimum

Thermal dissipation Voltage: 14.66 BTU/hr, Current: 16.02 BTU/hr

Current draw 375 mA @ 5.1V, 100 mA @ 24V

Power dissipation Voltage: 4.3 W, Current: 4.7 W

Resolution Input: Approx 14 bits across ±10.5V DC (21V total), ±10.5V range: 1.3 mV/bit, 14 bit effective, 0...10.5V range: 1.3 mV/bit, 13 bit effective, 0...5.25V range: 1.3 mV/bit, 12 bit effective, Approx 12 bits across 21 mA, 0...21 mA range: 5.25 μA/bit, Output

Wire size Single wire connection (1756-TBCH): 0.33...2.1 mm² (22...14 AWG) solid or stranded shielded copper wire, rated at 105 °C (221 °F) or greater, 1.2 mm (3/64 in.) insulation maximum, Single wire connection (1756-TBS6H): 0.33...2.1 mm² (22...14 AWG) solid or

Calibrated accuracy Input: 0.05% of range immediately after calibration Better than 0.1% of range within calibration interval @ 25 °C (77 °F), Output: 0.05% of range immediately after calibration Better than 0.1% of range within calibration interval @ 25 °C (77 °F)

Open circuit detection time Input: Positive full-scale reading within 1 s, Output: Current output only (output must be set to >0.1 mA)
