Technical Specifications for 1756-IF8H
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Isolation Voltage
|
10-55 Volts DC
|
|
Part Number/Catalog No.
|
1756-IF8H
|
Current Draw
|
300 mA
|
|
Module Type
|
Analog Input Module
|
Backplane Current
|
70 milliamps
|
|
Manufacture Year
|
2022
|
Power Dissipation
|
3.21-4.01 Watts
|
|
Product Package
|
Original Package
|
UPC
|
10612598345479
|

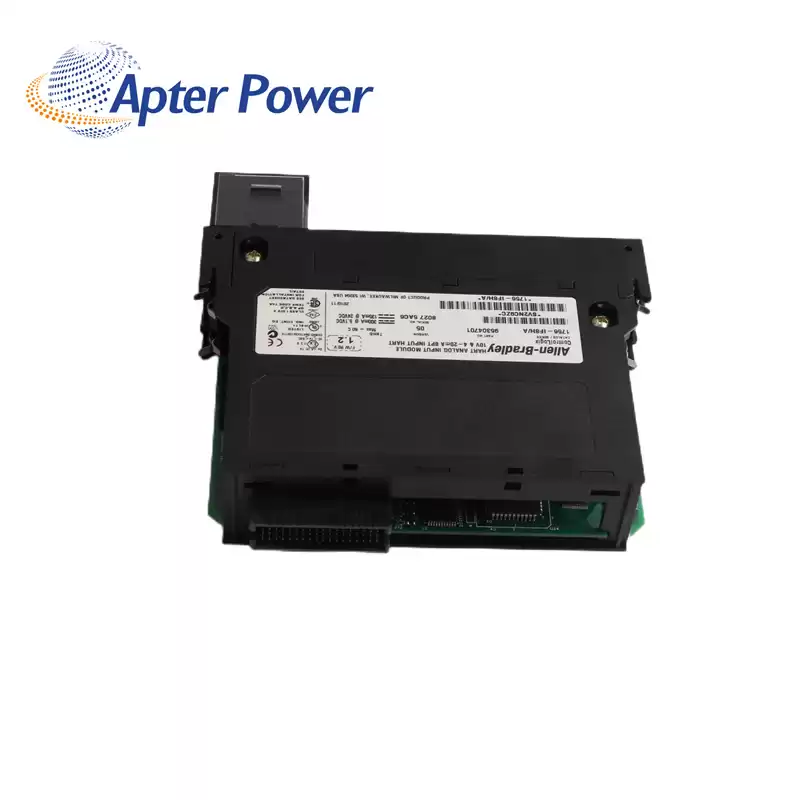

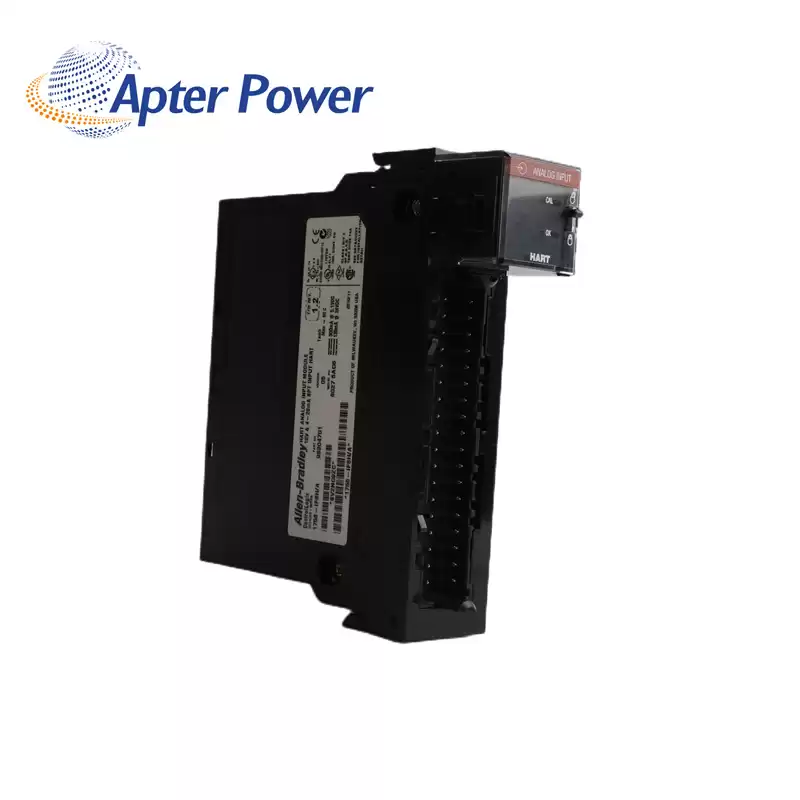

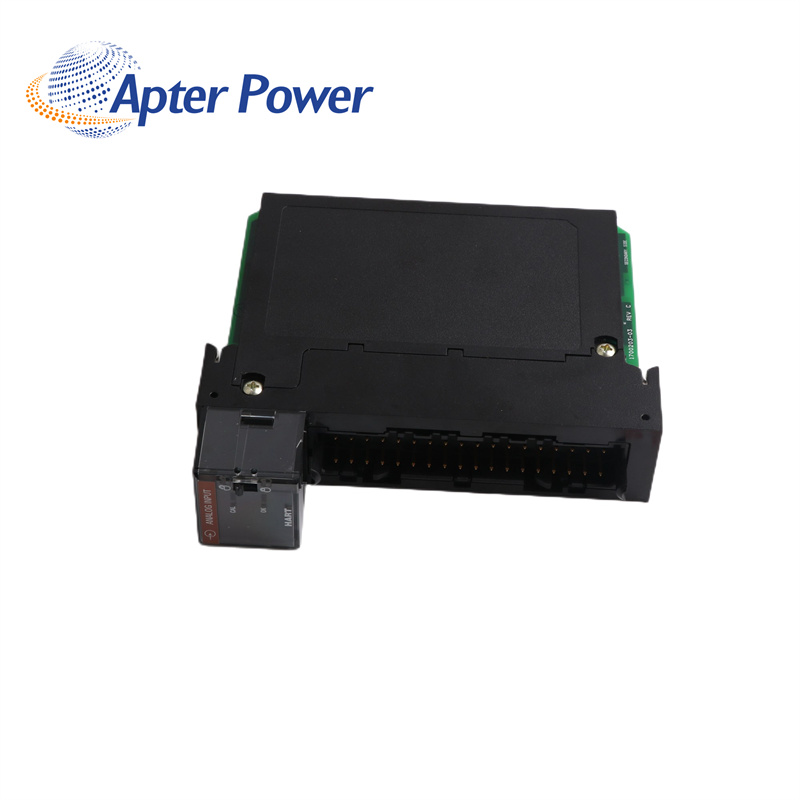

About 1756-IF8H
|
This 1756-IF8H input module receives signals from process value transmitters and then converts them to the corresponding measurement values for use in the Logix controller. The 1756-IF8H has three data formats for you to choose from using the Studio 5000 Logix Designer: analog only, analog and HART PV, and analog and HART by channel.
The 1756-IF8H has a HART scan time of 18...488 ms and 1 second if HART enabled while with all channels HART activated, the estimated scan time is 10 seconds. Module passthrough configuration and communication to HART communication and devices may significantly increase scan time. The 1756-IF8H uses successive approximation as input conversion method while output conversion method is via R-Ladder DAC, monotonicity with no missing codes.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
