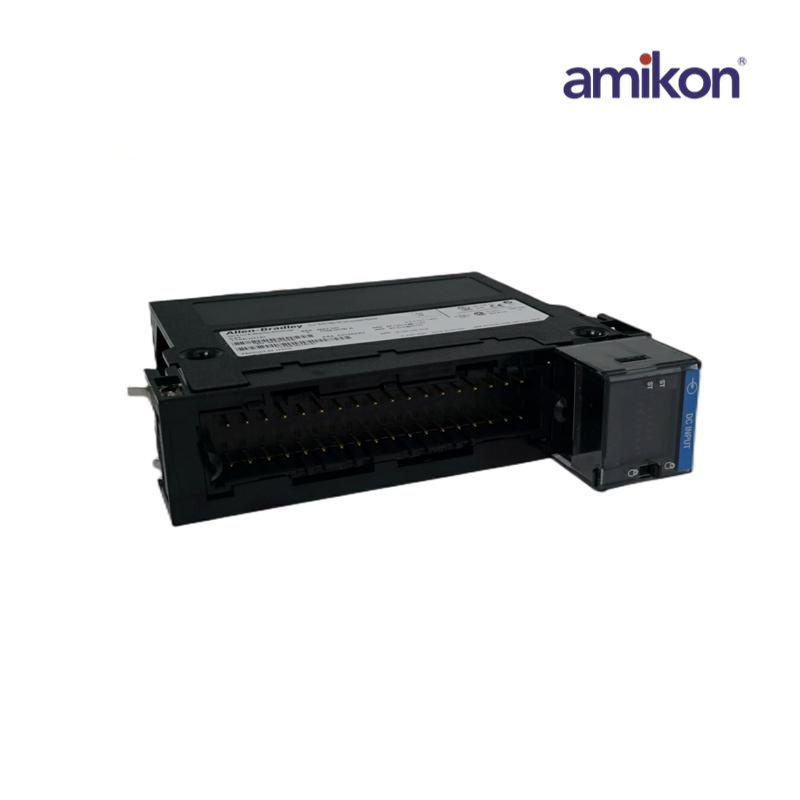

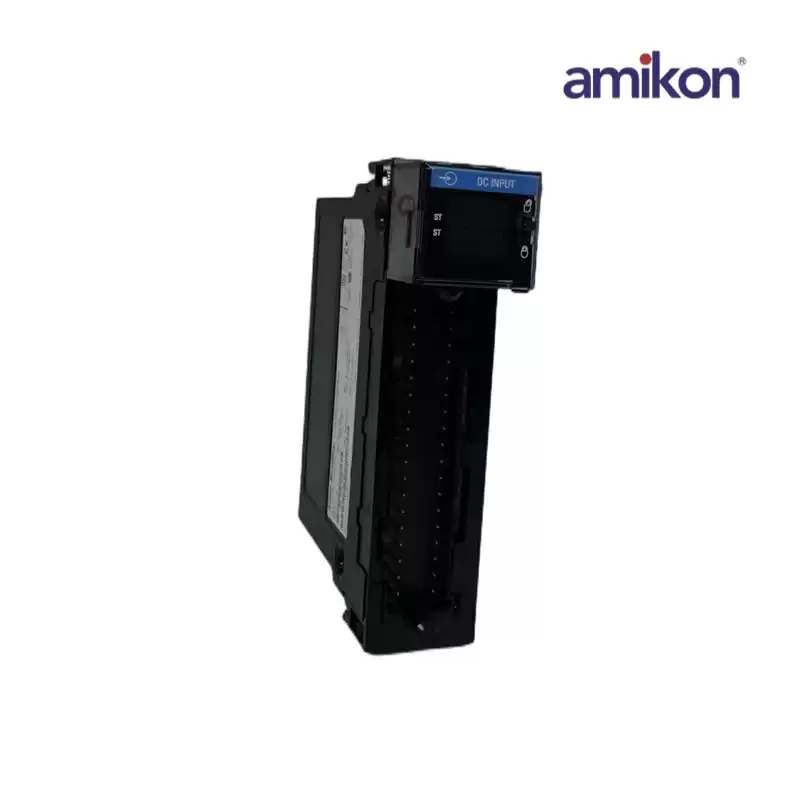

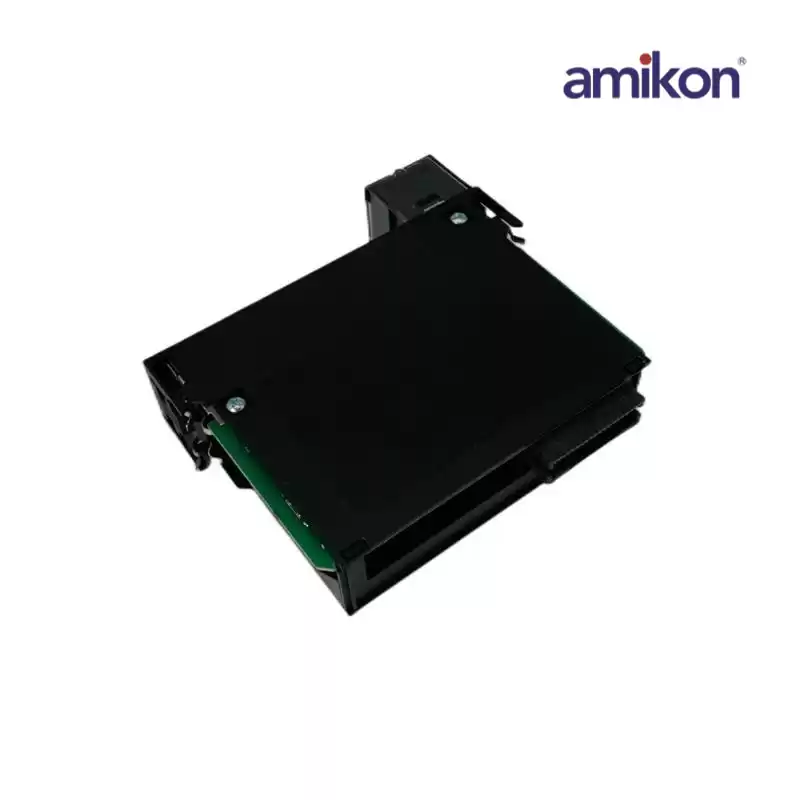

1756-IH16I
|
|
Dimensions ：
|
28.3cmx18.2cmx5.2cm
|
Weight：
|
0.5KG
|
|
The 1756-IH16I has a total backplane power of 0.71 Watts, a maximum inrush current of 250 milliamps, a maximum power dissipation of 5 Watts at 60 Degrees Celsius, and a thermal dissipation of 17.05 BTU/hour. Isolation is continuous between inputs at 250 Volts. During an off-state, the 1756-IH16I has a maximum voltage of 20 Volts DC and a maximum current of 0.8 milliamps.
The 1756-IH16I is a sink/source digital input module with 16 individually isolated inputs available. It requires a 36-pin RTB, or removable terminal block housing, of either the 1756-TBCH or 1756-TBS6H before it can be connected to a compatible ControlLogix chassis. This module features per point isolation and displays the module health and input and communication status.
|
|
