Technical Specifications for 1756-IM16I
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
2.5 Miliamperes
|
|
Part Number/Catalog No.
|
1756-IM16I
|
Input Voltage
|
240 Volts AC
|
|
Module Type
|
Digital I/O Module
|
Power Dissipation
|
5.8 Watts
|
|
Manufacture Year
|
2022
|
Power Consumption
|
110 mA at 24 Volts DC
|
|
Product Package
|
Original Package
|
UPC
|
10612598171344
|

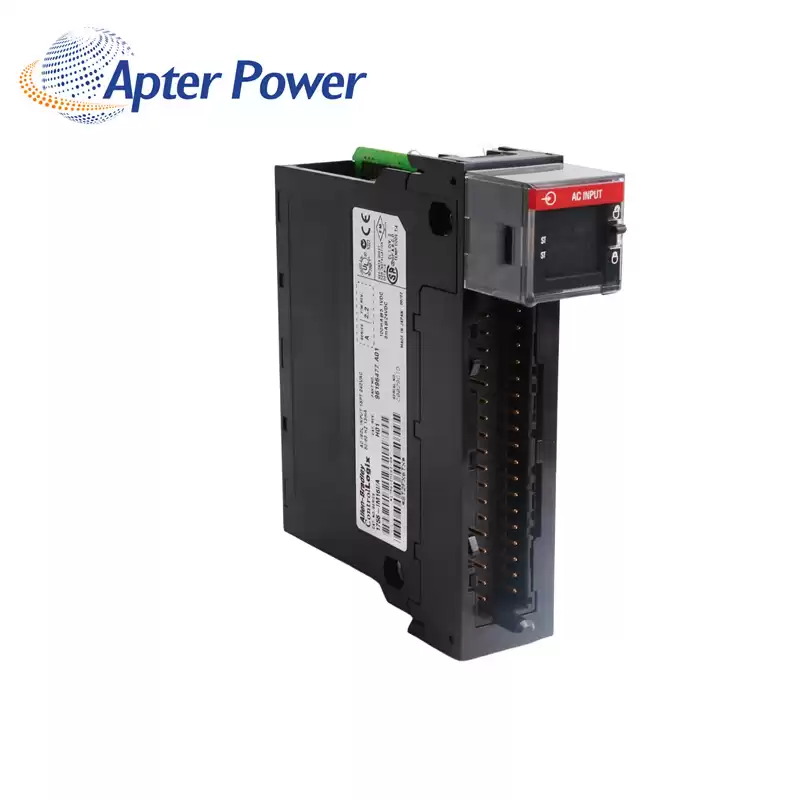

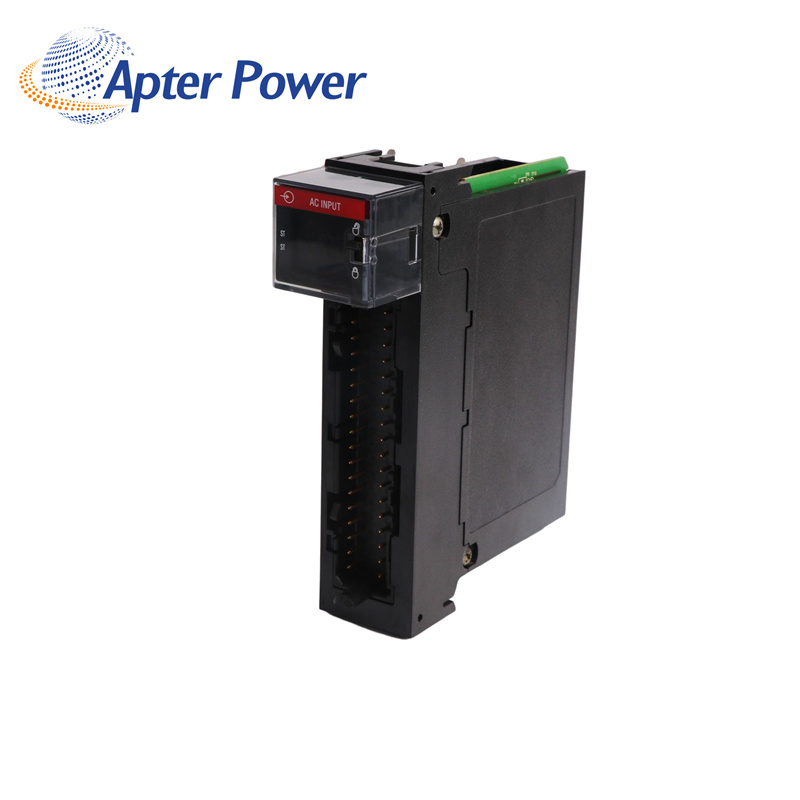

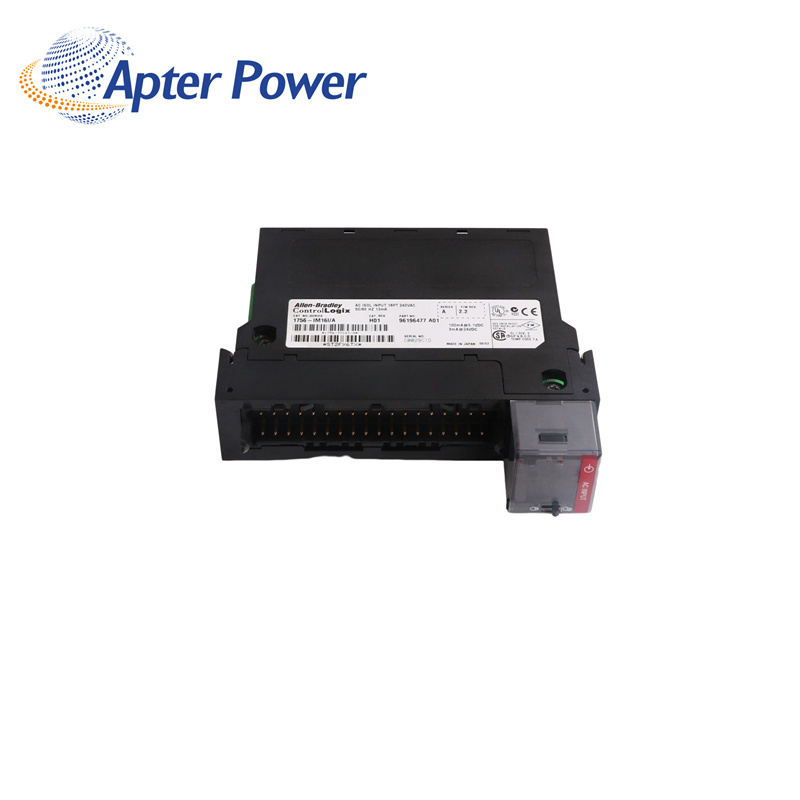

About 1756-IM16I
|
The 1756-IM16I has a screw to backplane input delay time when going from an off to on state, and vice versa. From 'off' to 'on', the input delay time is the hardware delay of 10 milliseconds max plus the input filter time (user-selectable at 1 or 2 milliseconds), while from 'on' to 'off', it is the hardware delay time of 8 milliseconds max plus the input filter time (user-selectable at 9 or 18 milliseconds).
The 1756-IM16I is an AC digital input module. It has 16 individually isolated inputs, per point isolation, and you can configure a change of state and the input filter times. Compatible with the 1756 ControlLogix chassis, it requires either the 1756-TBS6H or 1756-TBCH 36-pin removable terminal block housing (RTB) to connect it to the chassis.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
