has a screw to backplane input delay time when going from an off to on state, and vice versa. From 'off' to 'on', the input delay time is the hardware delay of 10 milliseconds max plus the input filter time (user-selectable at 1 or 2 milliseconds).
|
|

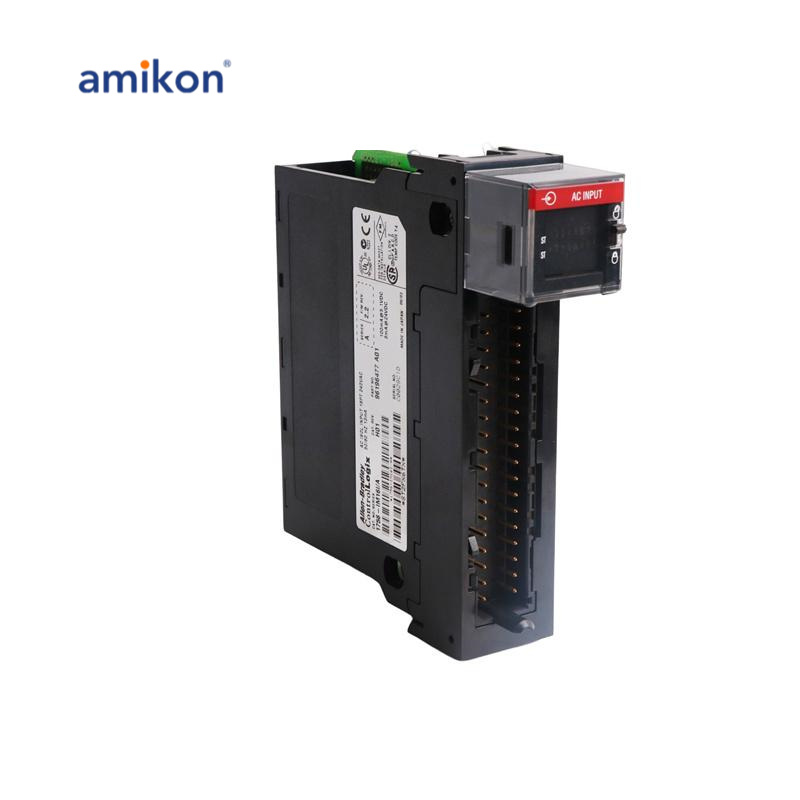

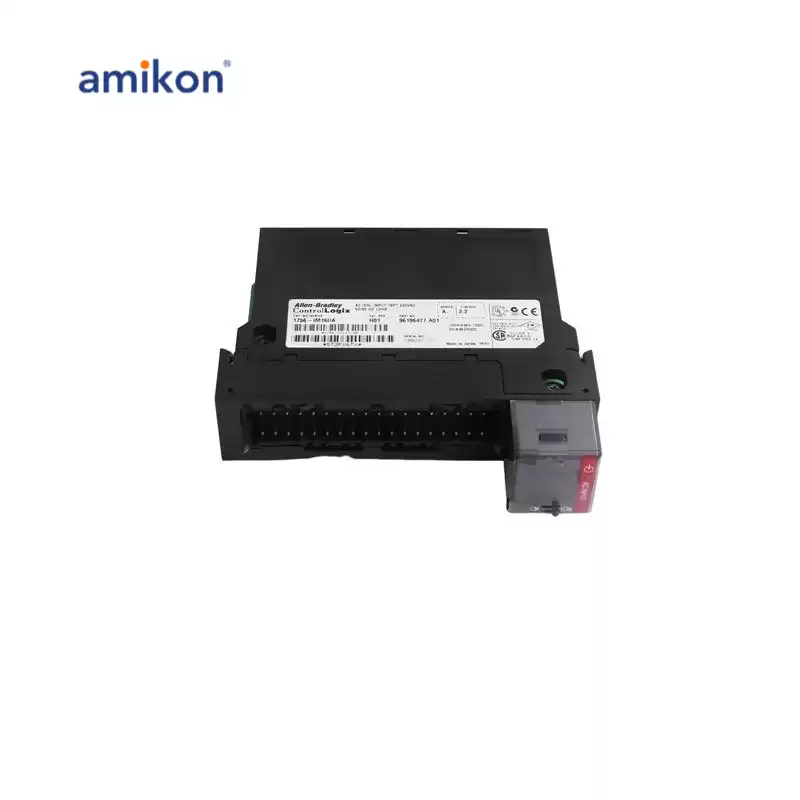

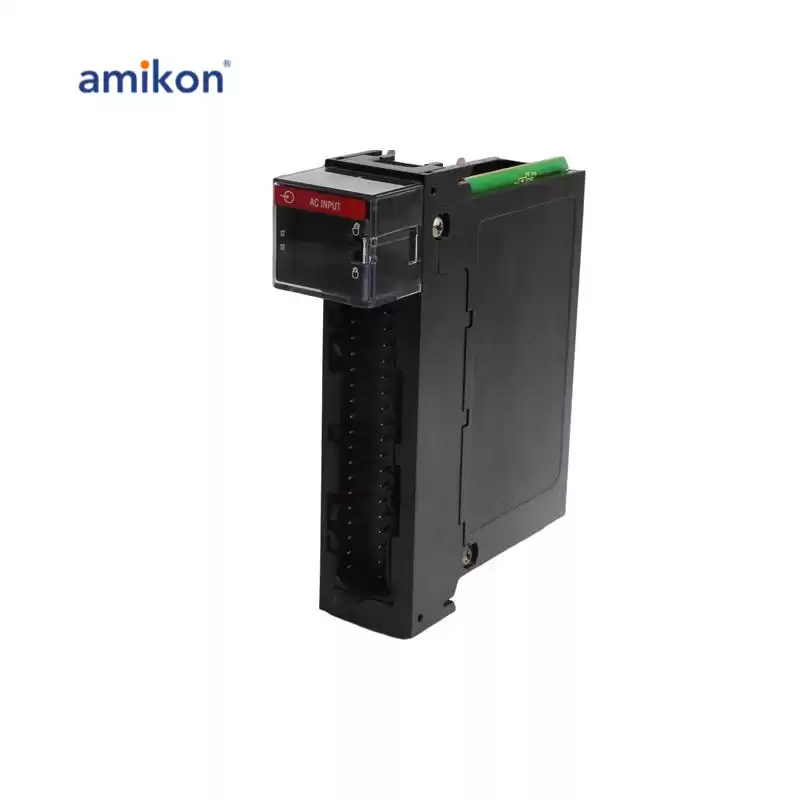

1756-IM16I Description:
|
while from 'on' to 'off', it is the hardware delay time of 8 milliseconds max plus the input filter time (user-selectable at 9 or 18 milliseconds).
|
|
AC digital input module. It has 16 individually isolated inputs, per point isolation, and you can configure a change of state and the input filter times.
|
|
Compatible with the 1756 ControlLogix chassis, it requires either the 1756-TBS6H or 1756-TBCH 36-pin removable terminal block housing (RTB) to connect it to the chassis.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
