Technical Specifications for 1756-IR12
Manufacturer |
Automation |
|
Condition |
100% New Original |
Brand |
|
Current Draw |
700 mA |
|
Part Number/Catalog No. |
1756-IR12 |
Thermal Dissipation |
12.6 BTU/hr |
|
Module Type |
Analog input module |
Backplane Current |
24 Volts DC |
|
Manufacture Year |
2022 |
Power Dissipation |
3.7 W |
|
Product Package |
Original Package |
UPC |
887172654879 |

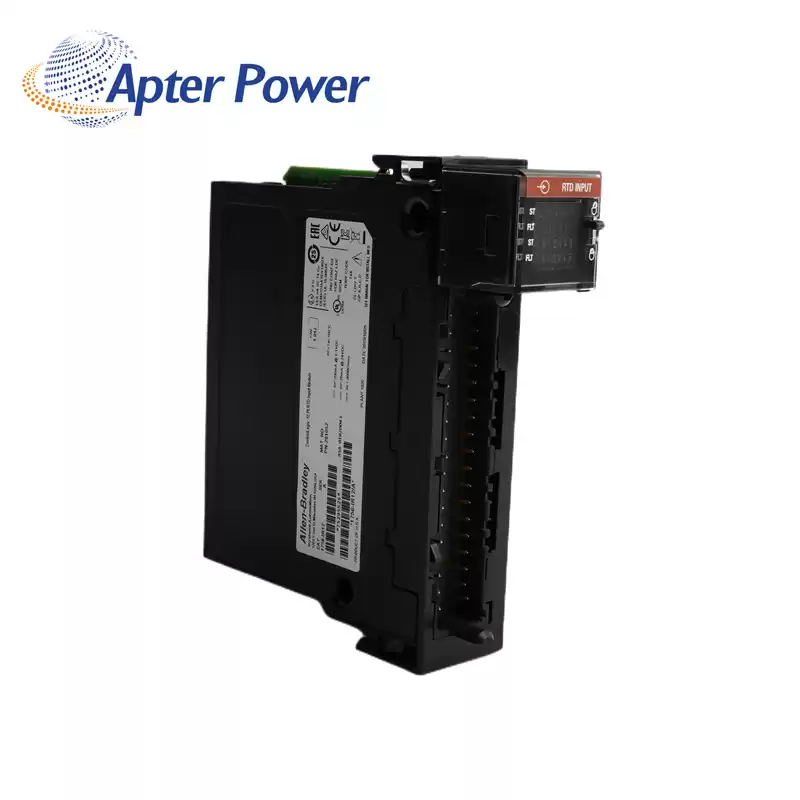

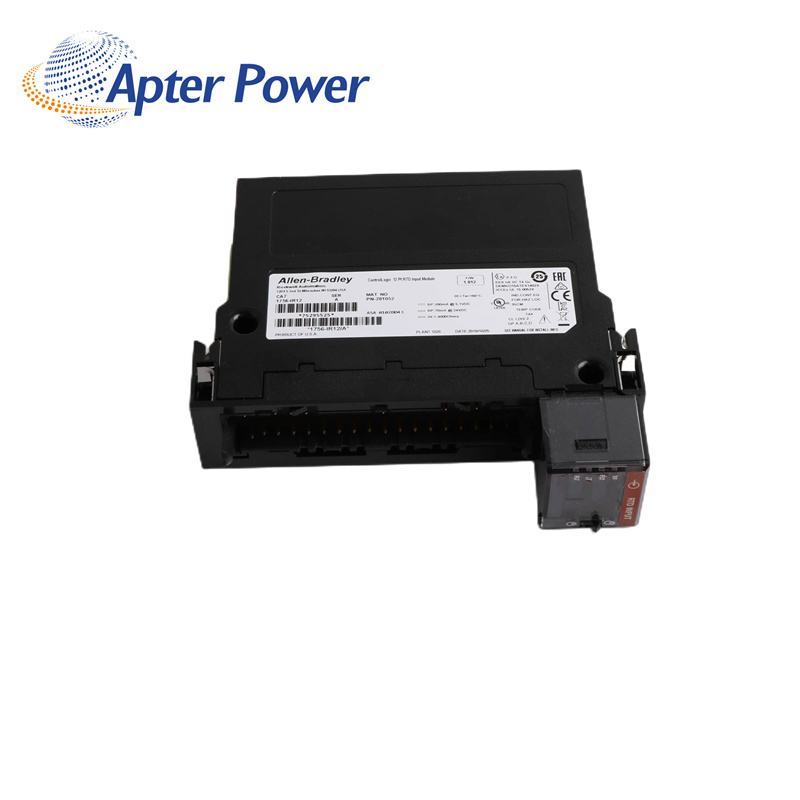

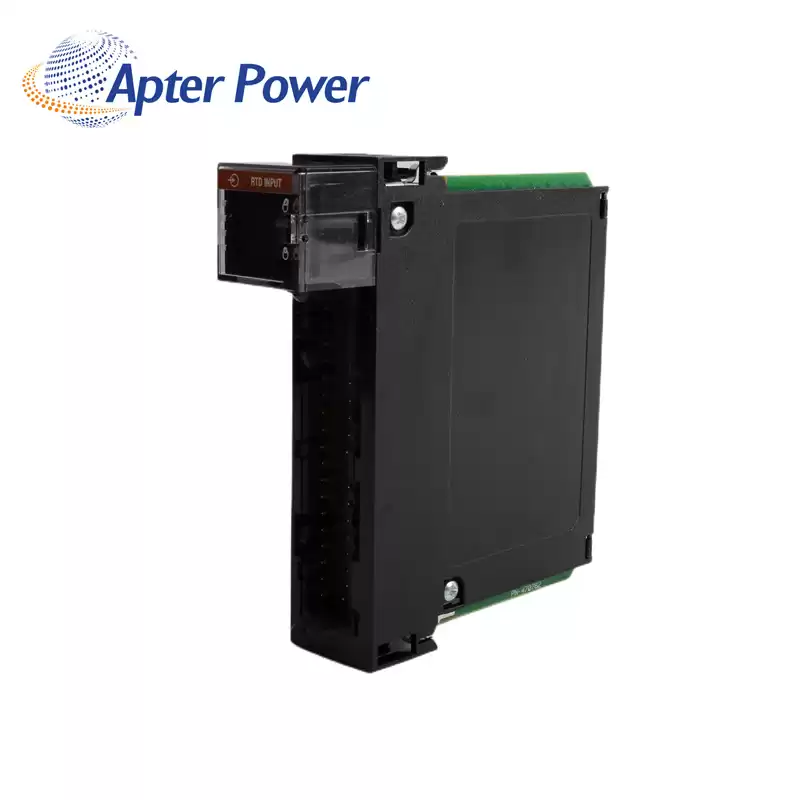

The 1756-IR12 module provides different input ranges for different sensor types and has the ability to automatically select the last used range-sensor configuration. The unit is part of the Bulletin 1756/ControlLogix product family which offers several other input modules with specifications geared to meet the demands of different applications in industrial environments.
The 1756-IR12 module has a current draw of 200 milliAmps at 5.1 Volts and one of 70 milliAmps at 24 Volts. This component dissipates up to 2.7 Watts of power and it has a thermal dissipation of 9.2 BTU per hour. The module features overvoltage protection of up to +/- 30 Volts DC and it has a channel bandwidth that is dependent on the notch filter configuration. |
