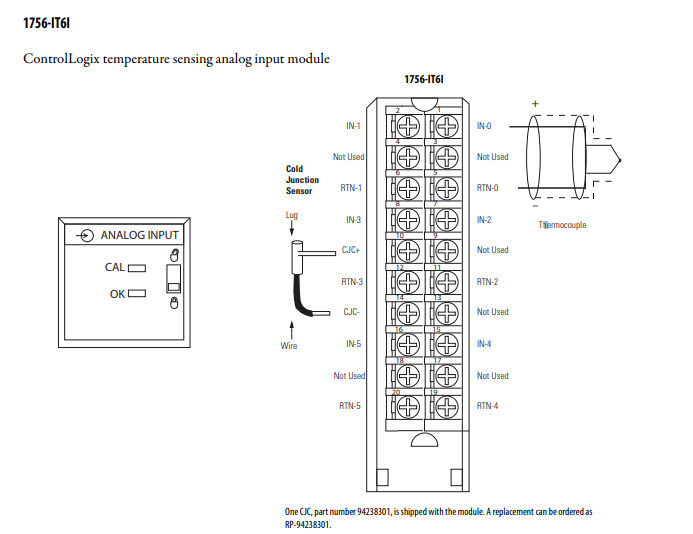

The Allen-Bradley 1756-IT6I is a temperature sensing analog module. It is a 6 inputs analog RTD and thermocouple module, with channels that are individually isolated and also has 1 CJC. It requires either the 1756-TBNH or 1756-TBSH removable terminal block housing, or RTB, before it can be attached to a chassis. It has a sensor accuracy of +/-0.3 to 3.2 Degrees Celsius, depending on channel, for a local CJC and +/-0.3 Degrees Celsius for a remote CJC.
Features of the 1756-IT6I module include multiple input ranges, notch filter, real-time sampling, under-range/over-range detection, digital filter, process alarms, rate alarm, 10-ohm offset, wire off detection, sensor type, temperature units, an input signal to user count conversion, and wire length calculations. You have the option to choose from two data formats with the 1756-IT6I, the integer mode or the floating point mode.
The input ranges available with the module are -12 to 78 millivolts and -12 to 30 millivolts for the high-resolution range. It also has a 16-bit resolution, with -12 to 78 millivolts: 1.4 microvolts per bit the typical range and 12 to 30 millivolts: 0.7 microvolts per bit the high-resolution range. It has a maximum overvoltage protection of 120 Volts AC/DC. The thermocouple types of the module are B, E, J, K, R, S, T, N, C, D, and L (TXK/XK). It has a thermocouple linearization of ITS-90.
|
Attribute
|
|
1756-IT6I
|
|
|
|
|
|
Inputs
|
|
Six individually isolated thermocouple
|
|
|
|
1 CJC
|
|
|
|
|
|
Input range
|
|
-12…78 mV
|
|
|
|
-12…30 mV (high-resolution range)
|
|
|
|
|
|
Resolution
|
|
16 bits
|
|
|
|
-12…78 mV: 1.4 V/bit (typical)
|
|
|
|
-12…30 mV: 0.7 V/bit (high-resolution range)
|
|
|
|
|
|
Thermocouple linearization
|
|
ITS-90
|
|
|
|
|
|
Current draw @ 5.1V
|
|
250 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
125 mA
|
|
|
|
|
|
Total backplane power
|
|
4.3 W
|
|
|
|
|
|
solation voltage
|
|
250V (continuous), basic insulation type, input channels-to-backplane, and input channel-to-channel
|
|
|
|
Routine tested at 1350V AC for 2 s
|
Allen Bradley 1756-IT6I
1756-IT6I | Allen Bradley | ControlLogix Analog I/O Modules
Email:sales3@amikon.cn
Part Number:
|
1756-IT6I
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Isolated Thermocouple Input Module
|
|
Inputs:
|
6 Isolated Thermocouple, 1 CJC
|
|
Input Resolution :
|
12 to 78 millivolts, 12 to 38 millivolts
|
