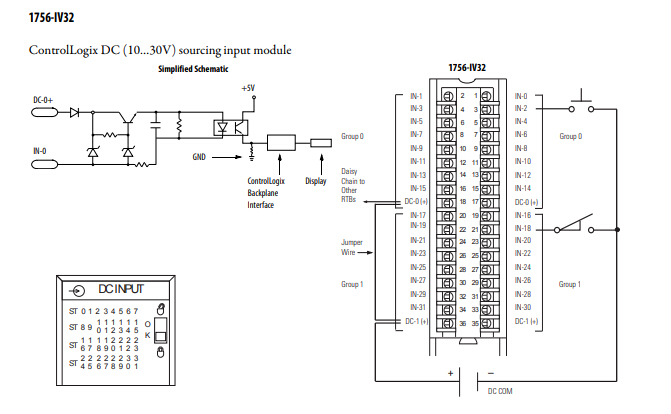

The Allen-Bradley 1756-IV32 is a digital input module having 32 inputs with 16 points per group. You can configure the module's change of state and/or input filter times via the RSLogix 5000 software. The 1756-IV32 module is compatible with the ControlLogix 1756 chassis but before you can connect the module to the chassis, you will need an RTB, or removable terminal housing, for the module.
For the 1756-IV32 module, you can only use the 1756-TBCH or 1756-TBS6H RTB. The 1756-IV32 has an operating voltage range of 10 to 30 Volts DC and is a 12/24 Volts DC source module. The current draw of this module is 120 milliamps at 5.1 Volts and 2 milliamps at 24 Volts. It has a total backplane power of 0.66 Watts and a nominal input voltage of 24 Volts DC. The module also has a continuous voltage of 250 Volts. The maximum power dissipation of the 1756-IV32 module is 4.1 Watts at 60 Degrees Celsius, while its thermal dissipation is 14 BTU/hour also at 60 Degrees Celsius.
It has a maximum inrush current of 250 milliamps, decaying to <37% in 22 milliseconds, without activation, and a maximum input impedance of 8.6 kΩ at 30 Volts DC. The screw to backplane input delay times of the 1756-IV32 are as follows: from 'on' to 'off', it is the hardware delay of a nominal of 540 microseconds up to a maximum of 2 milliseconds plus the user-configurable filter time of either 0 milliseconds, 1 milliseconds, 2 milliseconds, 9 milliseconds, or 18 milliseconds.
From 'off' to 'on', it is the hardware delay of a nominal of 350 microseconds up to a maximum of 1 milliseconds plus the user-configurable filter time of either 0 milliseconds, 1 milliseconds, or 2 milliseconds. When the 1756-IV32 module is on an off-state, it has a maximum current of 1.5 mA and a maximum voltage of 5 Volts. But when it is on an on-state, the module has a minimum current of 2 milliamps at 10 Volts DC and a maximum current of 3.5 milliamps at 30 Volts DC.
|
Attribute
|
|
1756-IV32
|
|
|
|
|
|
Inputs
|
|
32 (16 points/group)
|
|
|
|
|
|
Voltage category
|
|
12/24V DC source
|
|
|
|
|
|
Operating voltage range
|
|
10…30V DC
|
|
|
|
|
|
Input voltage, nom
|
|
24V DC
|
|
|
|
|
|
Input delay time (screw to backplane)
|
|
|
|
Off to On
|
|
Hardware delay: 350 s nom/1 ms max + filter time
|
|
|
|
User-selectable filter time: 0 ms, 1 ms, or 2 ms
|
|
|
|
|
|
On to Off
|
|
Hardware delay: 540 s nom/2 ms max + filter time
|
|
|
|
User-selectable filter time: 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms
|
|
|
|
|
|
Current draw @ 5.1V
|
|
120 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
2 mA
|
|
|
|
|
|
Total backplane power
|
|
0.66 W
|
|
|
|
|
|
Power dissipation, max
|
|
4.1 W @ 60 °C (140 °F)
|
|
|
|
|
|
Thermal dissipation
|
|
14 BTU/hr @ 60 °C (140 °F)
|
|
|
|
|
|
Off-state voltage, max
|
|
5V
|
Allen Bradley 1756-IV32
1756-IV32 | Allen-Bradley | ControlLogix Digital I/O Modules
Email:sales3@amikon.cn
Part Number:
|
1756-IV32
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Digital DC Input Module
|
|
Inputs:
|
32
|
|
Input Voltage:
|
12-24 Volts DC
|
