Technical Specifications for 1756-IV32
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
120 Miliamperes
|
|
Part Number/Catalog No.
|
1756-IV32
|
Input Voltage
|
12-24 Volts DC
|
|
Module Type
|
Digital Input Module
|
Power Consumption
|
5.3 Watts
|
|
Manufacture Year
|
2022
|
Inputs
|
32
|
|
Product Package
|
Original Package
|
UPC
|
10612598264350
|

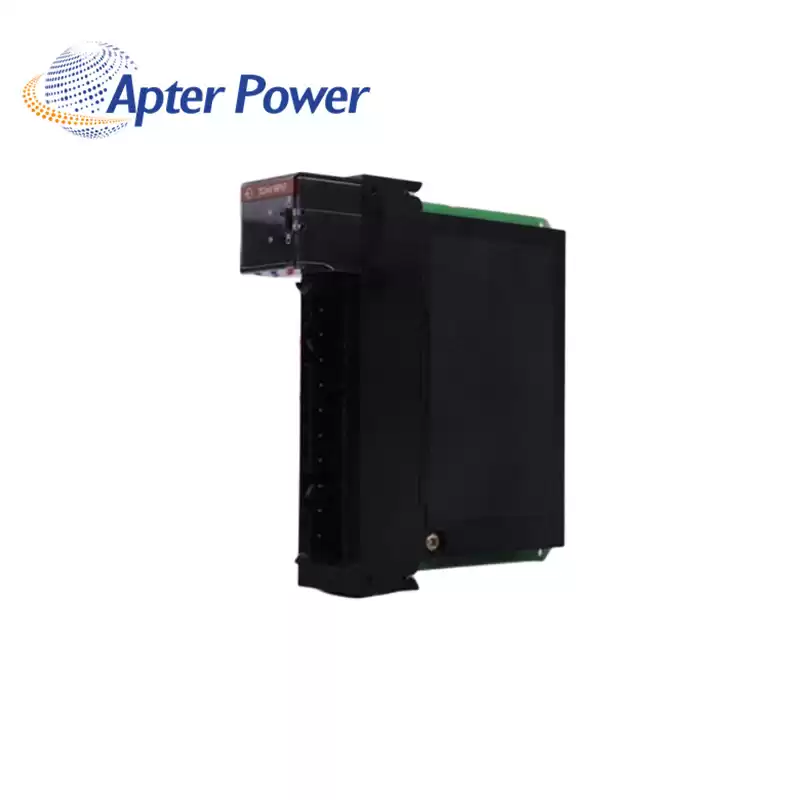

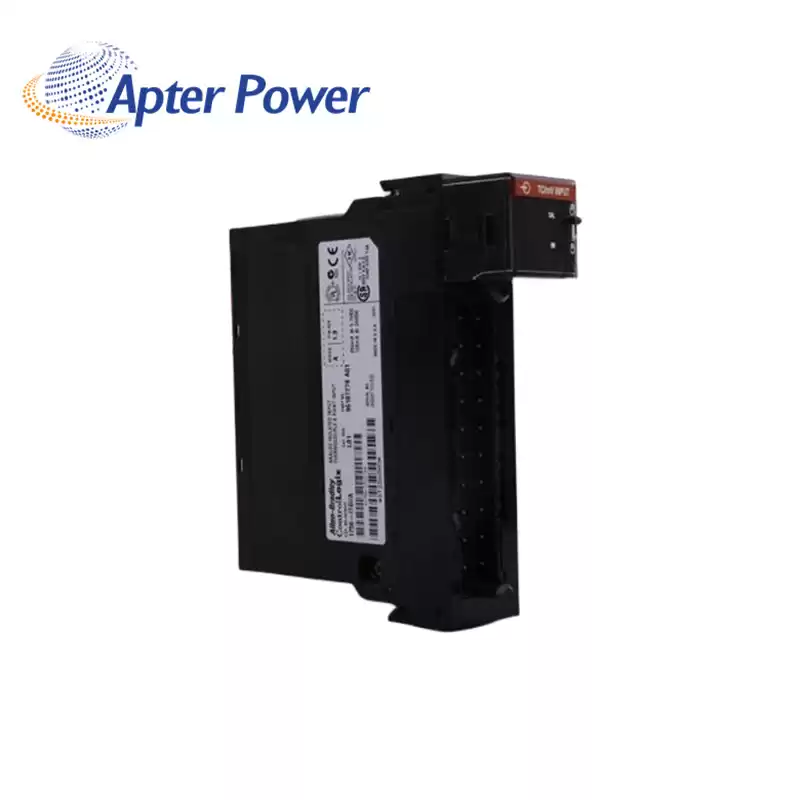

About 1756-IV32
|
The 1756-IV32 has an operating voltage range of 10 to 30 Volts DC and is a 12/24 Volts DC source module. The current draw of this module is 120 milliamps at 5.1 Volts and 2 milliamps at 24 Volts. It has a total backplane power of 0.66 Watts and a nominal input voltage of 24 Volts DC. The module also has a continuous voltage of 250 Volts.
The maximum power dissipation of the 1756-IV32 module is 4.1 Watts at 60 Degrees Celsius, while its thermal dissipation is 14 BTU/hour also at 60 Degrees Celsius. It has a maximum inrush current of 250 milliamps, decaying to <37% in 22 milliseconds, without activation, and a maximum input impedance of 8.6 kΩ at 30 Volts DC.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
