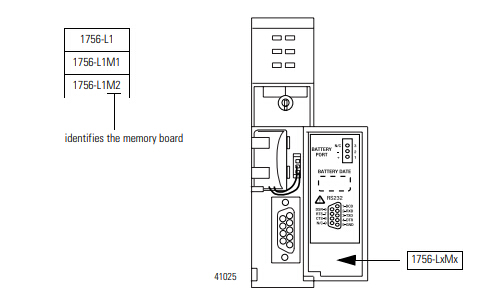

1756-L1M2 | Allen-Bradley | Controller and Memory Board

 Allen Bradley ControlLogix Processor Module with 1 MB Expansion Memory and Open Enclosure



Allen  Bradley    1756-L1M2  !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)








The Allen-Bradley 1756-L1M2 is a ControlLogix 5550 controller. It has a 1 MB user available memory but it does not have a nonvolatile memory. It has the capacity to control local and remote I/O across DeviceNet, ControlNet, and Universal Remote I/O networks. It has an open-style enclosure type rating and weighs 0.35 g or 12.5 oz. This controller has Group 1, Class A emissions.




The 1756-L1M2 has an average power dissipation of 4.8 W and an average thermal dissipation of 16.4 BTU/hr. Its average backplane current at 5V DC is 1.05 A and 0.02 A at 24V DC.

The operating temperature of this controller ranges from 0 to 60 Degrees Celsius, while its storage temperature ranges from -40 to 85 Degrees Celsius. It also has a noncondensing relative humidity between 5% to 95%.




It has a vibration of 2 G maximum peak acceleration at 10 to 500 Hz, an operating shock of 30 G peak for 11 ms, and a storage shock of 50 G peak for 11 ms. It also has an isolated voltage of 30V and this controller has been tested to withstand 500 Volts for 60 seconds.




The programming cables compatible with the 1756-L1M2 controller are the 1756-CP3 and the 1747-CP3. When needing to be replaced, the battery should only be the 0.59g lithium battery 1756-BA1.









Description: 1756-L1M2
user available memory 1M bytes
nonvolatile memory no
average power dissipation 4.8W
average thermal dissipation 16.4 BTU/hr
weight 12.5 oz
operating temperature  0° to 60° C (32 to 140° F)
storage temperature  -40° to 85° C (-40 to 185° F)
relative humidity  5% to 95% noncondensing
vibration  10 to 500 Hz
2.0 G maximum peak acceleration
operating shock  30G peak for 11ms









Allen  Bradley  1756-L1M2


1756-L1M2 | Allen-Bradley | Controller and Memory Board






Email:sales3@amikon.cn





  Part Number:
  1756-L1M2
  Series:

  ControlLogix

  Module Type:

  Processor Module

  Expansion Memory:   1 MB
  Isolation Voltage:

  30 Volts Continuous
