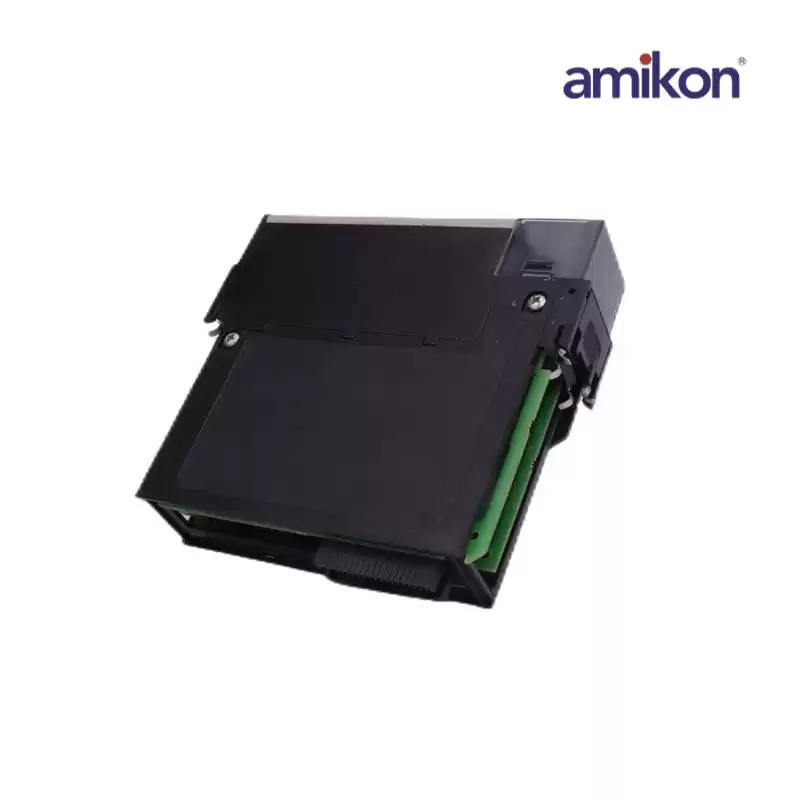

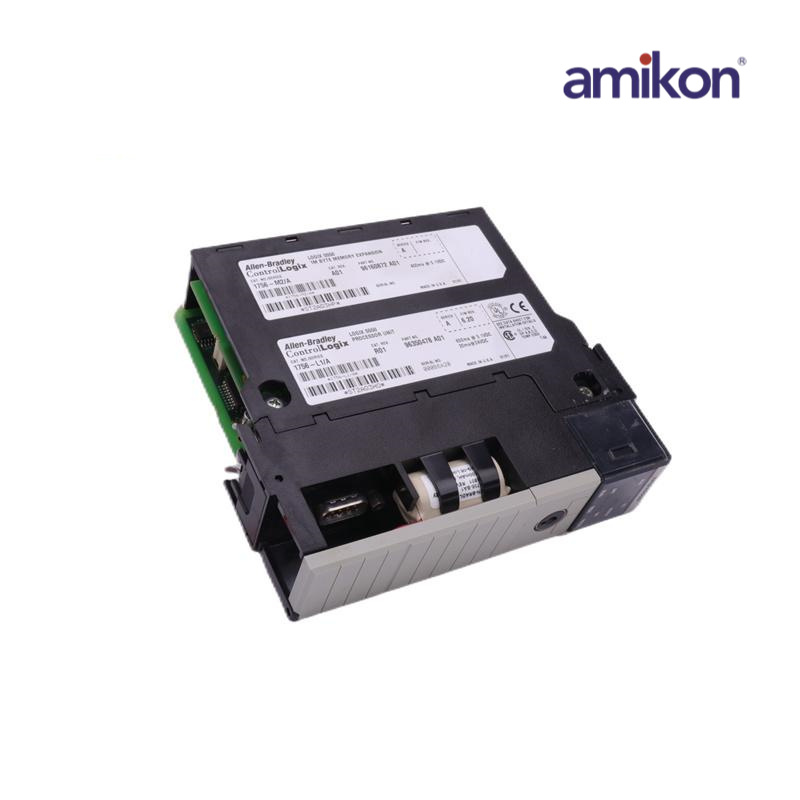

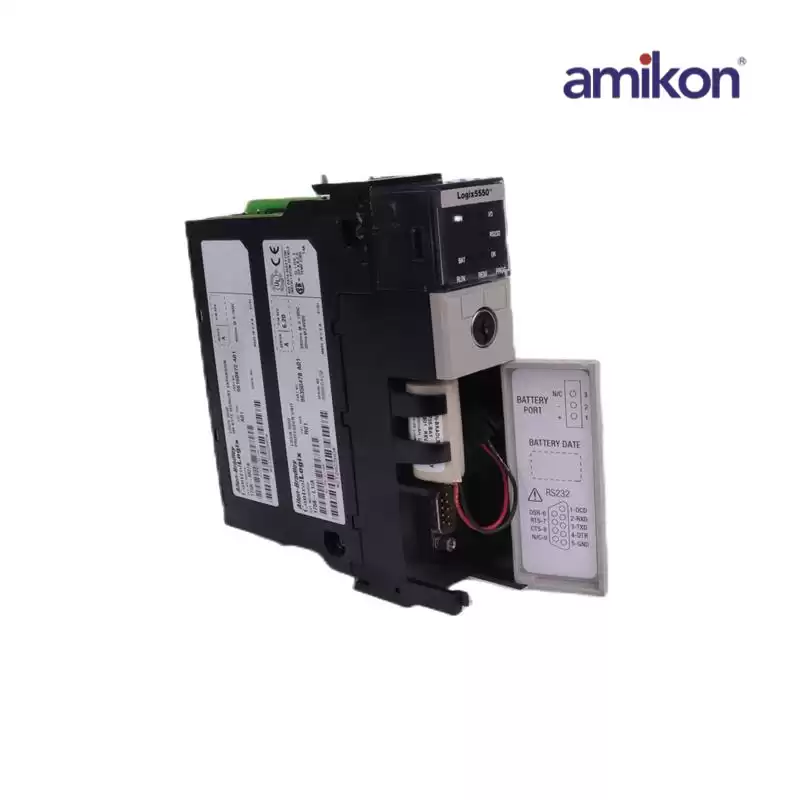

1756-L1M2
|
|
Dimensions ：
|
28.3cmx18.2cmx5.2cm
|
Weight：
|
0.5KG
|
|
The 1756-L1M2 has an average power dissipation of 4.8 W and an average thermal dissipation of 16.4 BTU/hr. Its average backplane current at 5V DC is 1.05 A and 0.02 A at 24V DC.The 1756-L1M2 has a conducted RF immunity of 10Vrms with 1 kHz sine-wave 80%AM from 150 kHz to 80 MHz. Its ESD immunity is 6 kV for contact discharges and 8 kV for air discharges.
The 1756-L1M2 is a ControlLogix 5550 controller. It has a 1 MB user available memory but it does not have a nonvolatile memory. It also has an EFT/B immunity of +/-2 kV at 5kHz on communication ports and +/-4 kV at 2.5 kHz on power ports.
|
|
