1756-L55M12
|
|
Dimensions ：
|
3.5cmx14cmx14.5cm
|
Weight：
|
0.34KG
|
|

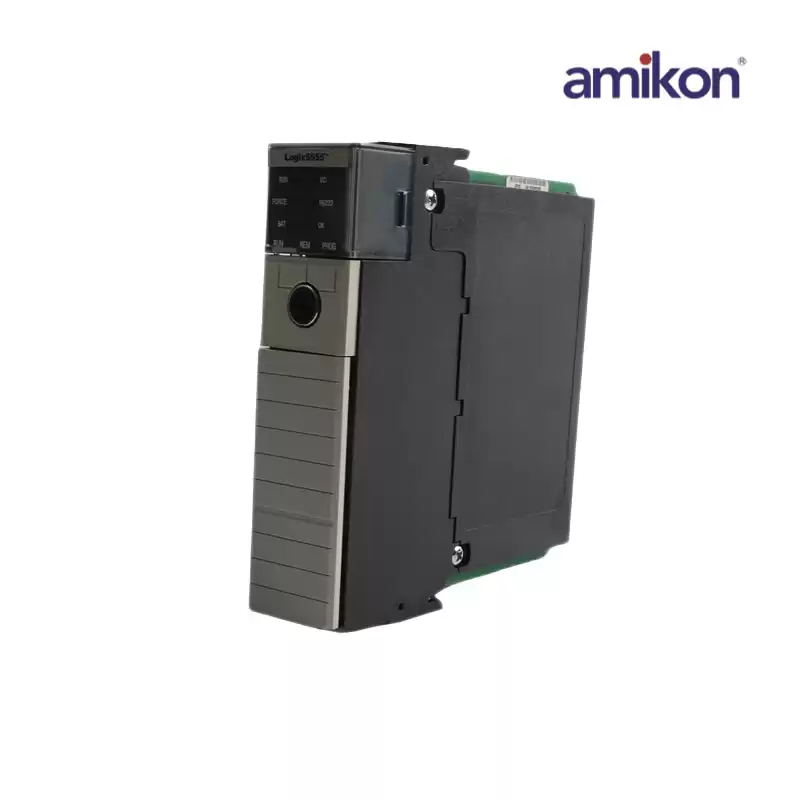

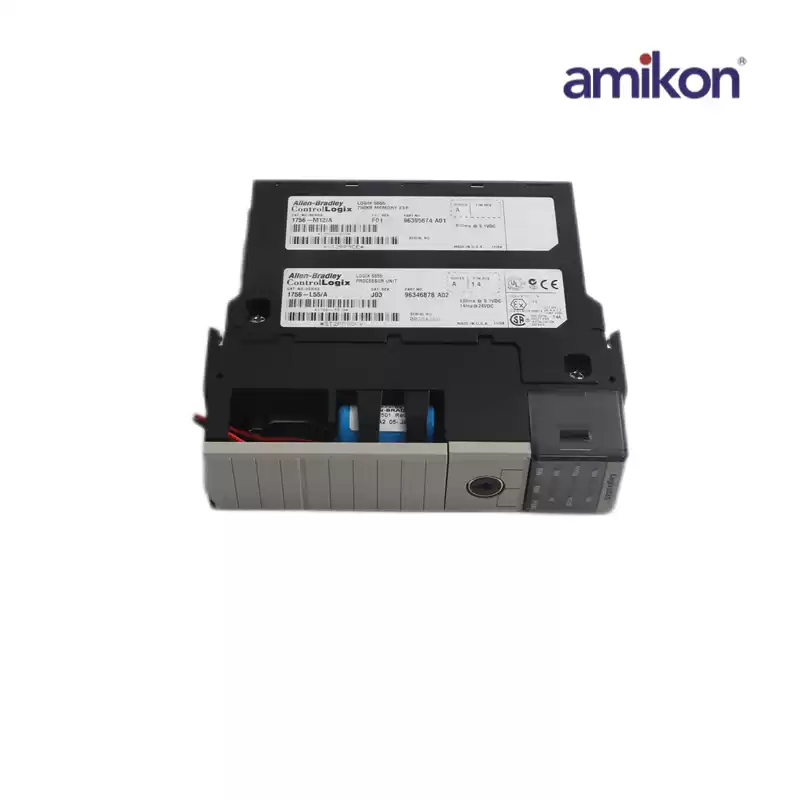

The 1756-L55M12 is a ControlLogix 5555 controller. This particular controller has an available memory of 750 kbytes for data and logic. It also has an I/O memory of 208 kbytes but it does not have a nonvolatile memory. It weighs 0.35 kg or 12.5 oz and has an open style enclosure type rating.
The backplane current of the 1756-L55M12 controller is 1.23 A at 5.1V DC and 0.014 A at 24V DC. It has a power dissipation of 5.6W and a thermal dissipation of 19.1 BTU/hr. It has a conducted RF immunity of 10V rms with 1 kHz sine-wave 80% AM from 150 kHz to 80 MHz. It also has an isolation voltage of 30V, which is continuous and a basic insulation type. The 1756-L55M12 controller has been tested to withstand 707V DC for 60 s.
It has an operating temperature between 0 to 60 Degrees Celsius and a storage temperature of -40 to 85 Degrees Celsius. It also has a relative humidity of 5% to 95% (noncondensing). The controller also has an operating shock of 30 g, a non-operating shock of 50 g, and a vibration of 2 g at 10 to 500 Hz.
|
|
