1756-L55M13
|
|
Dimensions ：
|
3.5cmx14cmx14.5cm
|
Weight：
|
0.34KG
|
|
The 1756-L55M13 has backplane currents of 0.014A at 24V DC and 1.23 A at 5.1V DC. Its thermal dissipation is 19.1 BTU/hr, while its power dissipation is 5.6W. It has a basic insulation type and a continuous isolation voltage of 30V and has also been tested to withstand 707V DC for 60s. The conducted RF immunity of the 1756-L55M13 controller is 10V rms with 1 kHz sine-wave 80%AM from 150 kHz to 80 MHz.

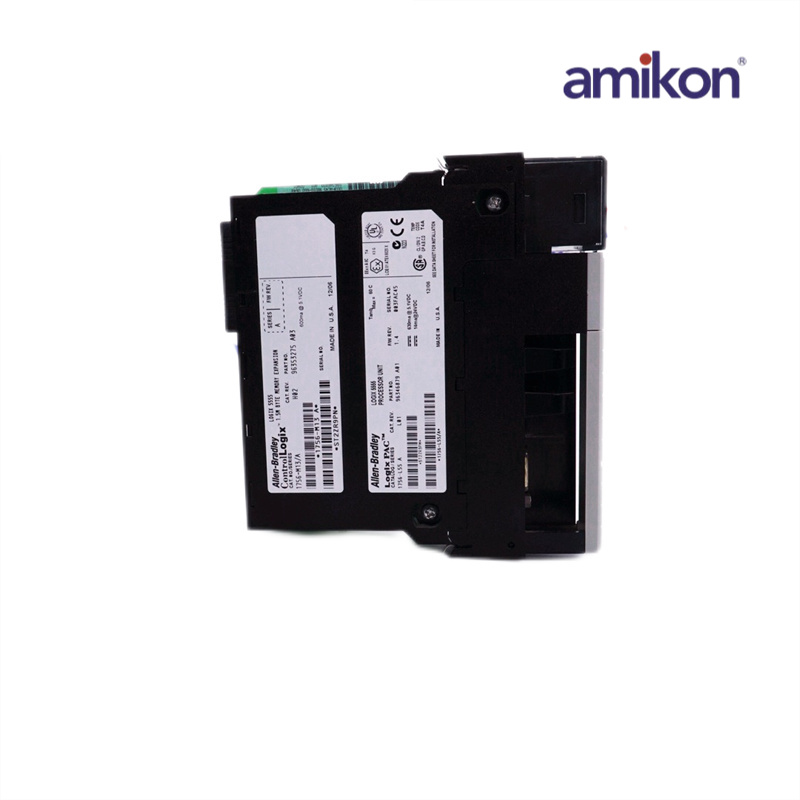

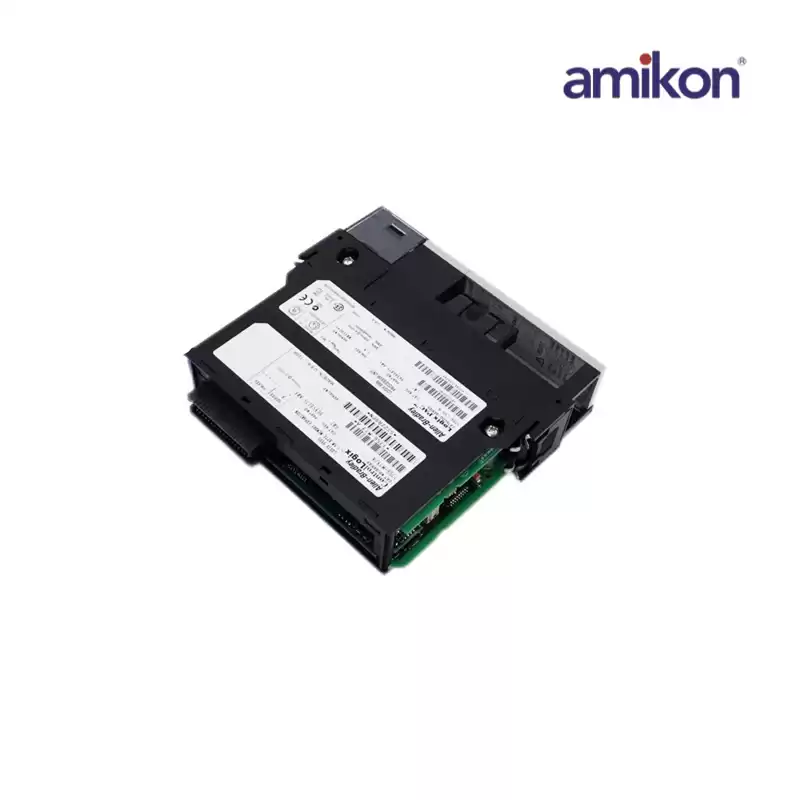

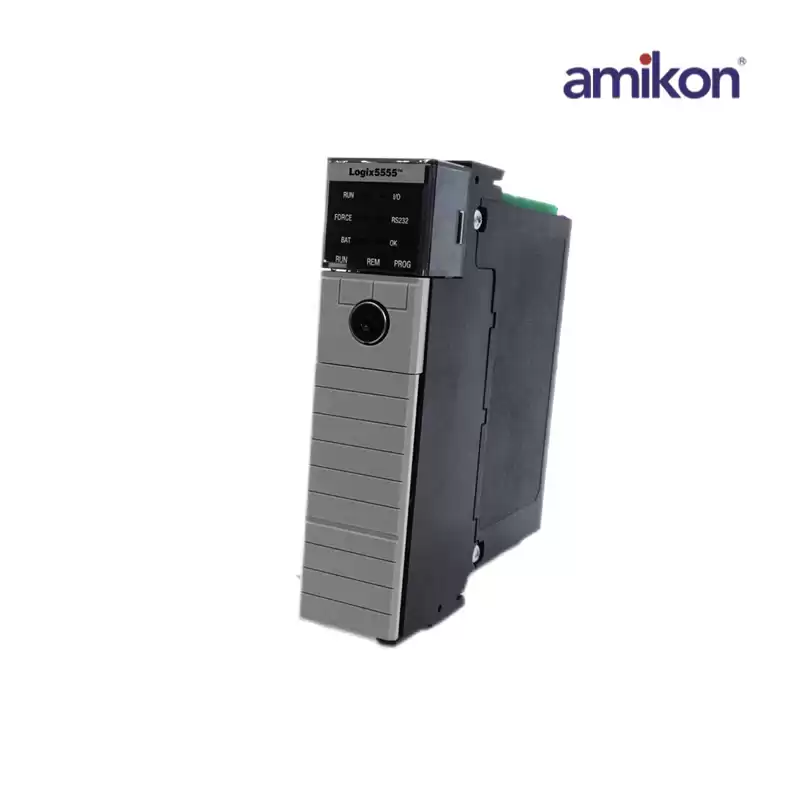

The 1756-L55M13 is a Series A ControlLogix 5555 controller. While this particular controller does not have a nonvolatile memory available, it does have a 1.5 Mbytes data and logic memory and 208 kbytes I/O memory available. The 1756-L55M13 controller also has a weight of 0.35 g or 12.5 oz. It does not have an enclosure type rating since it is an open-style controller.
The 1756-L55M13 controller can be used in a redundant controller system but it needs to be located in the same ControlNet network.
|
|
