Brand Name AB
Product reference 1756-L63S
The ControlLogix® architecture provides a wide range of input and output modules to span
many applications, from high-speed digital to process control. The ControlLogix architecture
uses Producer/Consumer technology, which allows input information and output status to be
shared among multiple ControlLogix controllers.
Each ControlLogix I/O module mounts in a ControlLogix chassis and requires either a
removable terminal block (RTB) or a 1492 interface module (IFM) to connect all field-side
wiring. RTBs and IFMs are not included with the I/O modules. They must be ordered
separately
1756 ControlLogix and GuardLogix Controllers
ControlLogix Controller Catalog Numbers 1756-L61, 1756-L62, 1756-L63, 1756-L63XT, 1756-L64, 1756-L65
1756-L71, 1756-L72, 1756-L73, 1756-L73XT, 1756-L74, 1756-L75
1756-L71K, 1756-L72K, 1756-L73K, 1756-L74K, 1756-L75K

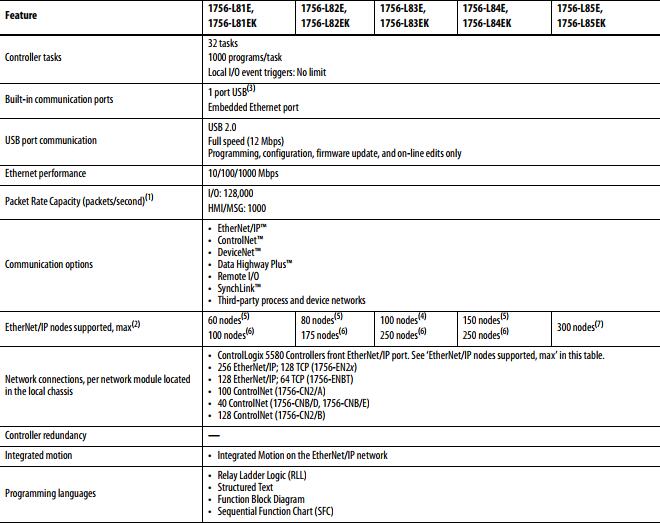

1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E,
1756-L81EK, 1756-L82EK, 1756-L83EK, 1756-L84EK, 1756-L85EK
GuardLogix Controller Catalog Numbers 1756-L61S, 1756-L62S, 1756-L63S, 1756-LSP
1756-L71S, 1756-L71SK, 1756-L72S, 1756-L72SK, 1756-L73S, 1756-L73SK, 1756-L7SP,
1756-L7SPK, 1756-L73SXT, 1756-L7SPXT
1756-L81ES, 1756-L81ESK, 1756-L82ES,1756-L82ESK, 1756-L83ES, 1756-L83ESK,
1756-L84ES, 1756-L84ESK, 1756-L8SP, 1756-L8SPK
Armor ControlLogix Catalog Numbers 1756-L72EROM, 1756-L73EROM
Armor GuardLogix Catalog Numbers 1756-L72EROMS, 1756-L73EROMS
ControlLogix Redundancy Catalog Numbers 1756-RM2, 1756-RM2XT
1756 ControlLogix Controllers
The ControlLogix® controller provides a scalable controller solution that is capable of addressing many I/O points. You
can place the ControlLogix controller into any slot of a ControlLogix I/O chassis, and install multiple controllers in the
same chassis.
ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, and over network links. The
ControlLogix 5580 controllers have an embedded Ethernet port for a direct connection to Ethernet-enabled devices and
networks, and also support communication interface modules in the local chassis. To provide communication for
ControlLogix 5570 or ControlLogix 5560 controllers, install the appropriate communication interface module into the
local chassis.
ControlLogix 5580 and ControlLogix 5570 controllers are available with a conformal coating. A conformal coating
provides a layer of protection against contaminants and humidity to help protect the assembly and extend product life in
harsh, corrosive environments. Products with a conformal coating have a ‘K’ suffix at the end of the catalog number.
1756 ControlLogix-XT Controllers
The ControlLogix-XT™ controllers function in the same way as the traditional ControlLogix controllers.
The ControlLogix-XT products include control and communication system components that are conformally coated
for extended protection in harsh, corrosive environments:
• When used with FLEX I/O-XT™ products, the ControlLogix-XT system can withstand temperature ranges of -
20…+70 °C (-4…+158 °F).
• When used independently, the ControlLogix-XT system can withstand temperature ranges of -25…+70 °C (-
13…+158 °F).
• Customers who previously used the LXT chassis should now migrate to the K version of the chassis.
1756-L73XT ControlLogix Controller Specifications
Technical Specifications - 1756-L73XT ControlLogix Controller

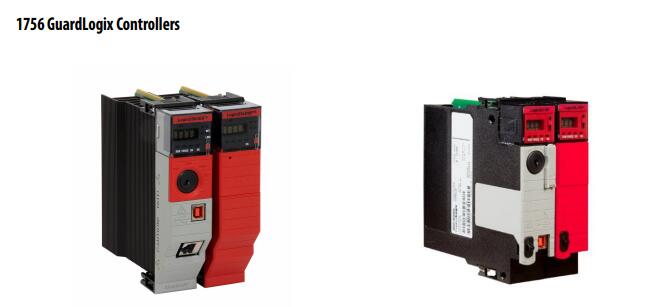

A GuardLogix® controller is a ControlLogix controller that also provides the ability to perform safety functions. You
must use a primary safety controller and a safety partner to achieve up to SIL CL 3/PLe/Cat. 4. A major benefit of this
system is that it is still one project, safety and standard together. The safety partner is a part of the system, is automatically
configured, and requires no user setup.
With the introduction of the GuardLogix 5580 controller, users can achieve up to SIL 2/PLd (Category 3) with a single
controller and the use of the safety task and safety I/O.
During development, safety and standard have the same rules; multiple programmers, online editing, and forcing are all
allowed. Once the safety system is validated and the safety signature applied, safety memory is protected, the safety logic
cannot be modified, and all safety functions operate with SIL integrity. If the safety partner is present, the safety integrity
will be SIL3. If no safety partner is present, the safety integrity will be SIL2.
On the standard side of the GuardLogix controller, all functions operate like a regular Logix controller. Thus, online
editing, forcing, and other activities are all allowed.
With this level of integration, safety memory can be read by standard logic and external devices, like HMIs or other
controllers, minimizing the need to condition safety memory for use elsewhere. The result is easy system-wide
integration and the ability to display safety status on displays or marquees. Use Guard I/O™ modules for field device
connectivity on Ethernet or DeviceNet networks, and for safety interlocking between GuardLogix controllers use
Ethernet or ControlNet networks. Multiple GuardLogix controllers can share safety data for zone to zone interlocking,
or one GuardLogix controller can use remote distributed safety I/O between different cells/areas.
1756 GuardLogix controllers are available with a conformal coating. The conformal coating provides a layer of
protection against contaminants and humidity to help protect the assembly and extend product life in harsh, corrosive
environments. Products with a conformal coating have a ‘K’ suffix at the end of the catalog number.
