1756-L64
|
|
Product Origin: USA
|
Manufacturer：AB
|
|
Dimension:3.6cmx14cmx15.2cm
|
Weight:0.32KG
|
|

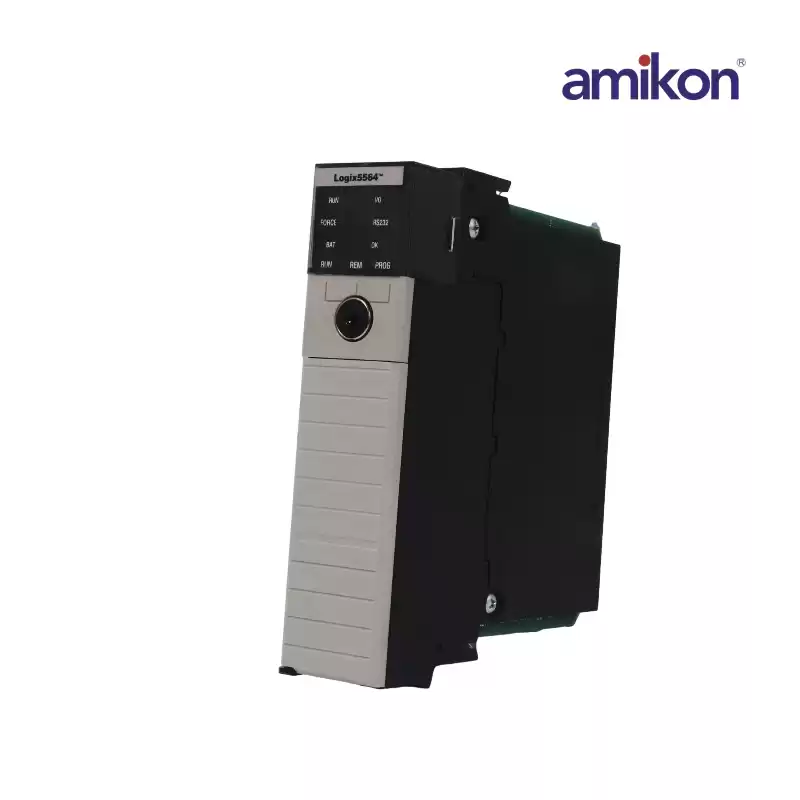

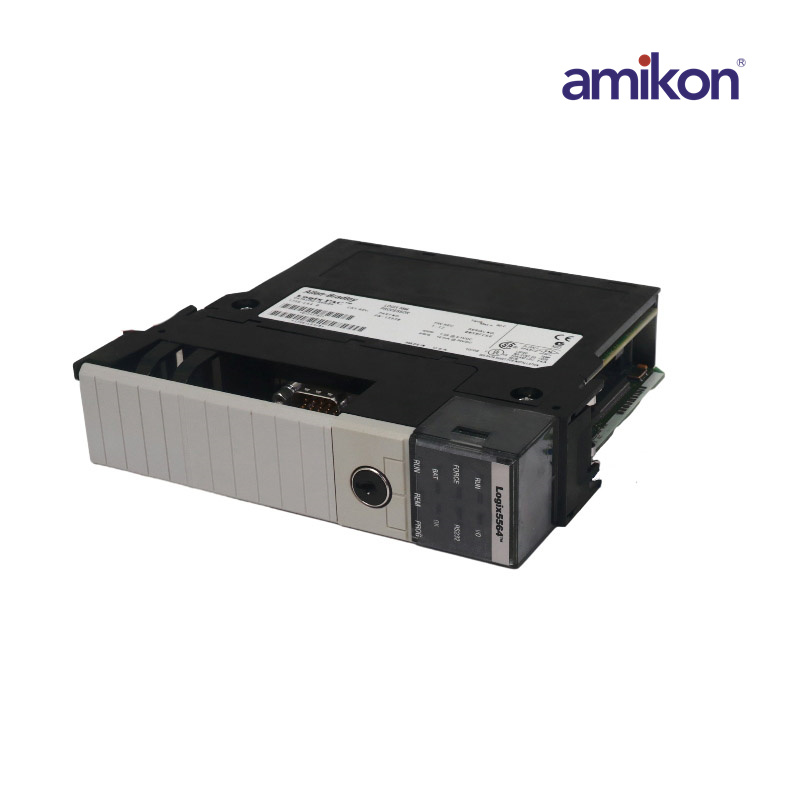

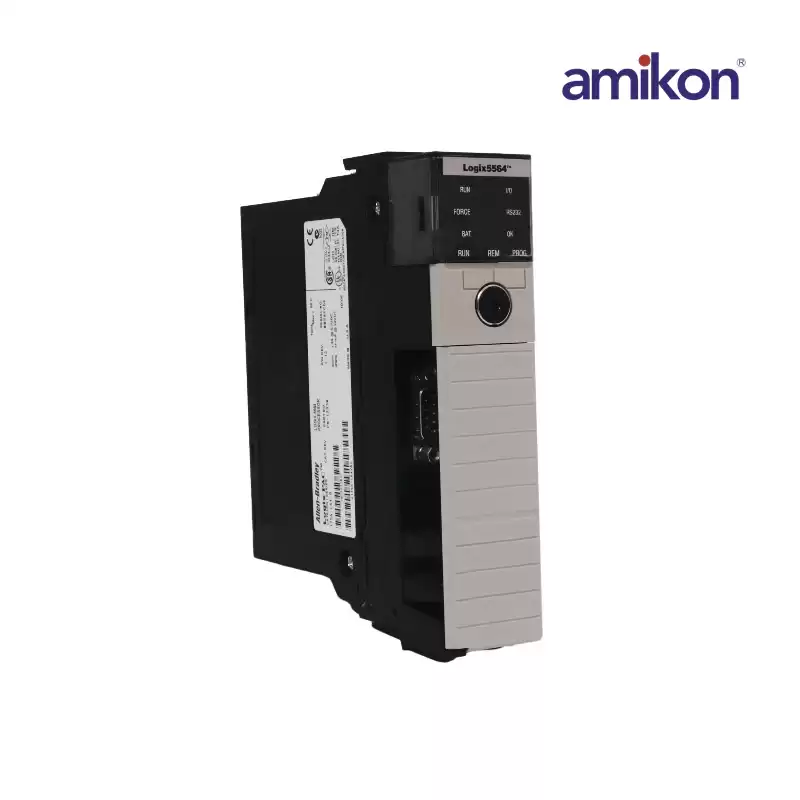

Full Description： 1756-L64 ControlLogix Logix5564 Processor with 16 Mbytes User Memory, 478 Kbytes I/O Memory.
|
|
The 1756-L64 controller also supports various communication options, particularly EtherNet/IP, Data Highway Plus, SynchLink, DeviceNet, ControlNet, Remote I/O, and Third-party process and device networks.The 1756-L64 controller has a maximum digital I/O of 128,000, which is the same with its maximum total I/O. Its maximum analog I/O is 4000.
The 1756-L64 is a ControlLogix standard controller. It has a 16 MB user memory available for data and logic and an I/O memory of 478 kb. An optional CompactFlash memory card can be used as an additional non-volatile memory of this controller. Note that the only memory card compatible with the 1756-L64 is the 128 MB 1764-CF128 model.
The 1756-L64 controller can handle a maximum of 250 controller connections. It should be mentioned that the scan time for a project loaded in this controller may be slower compared to other 1756-L6x controllers loaded with the same project. It also has full support for controller redundancy.
|
