Technical Specifications for 1756-L65
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
I-O Memory
|
478 Kilobytes
|
|
Part Number/Catalog No.
|
1756-L65
|
User Memory
|
32 MB
|
|
Module Type
|
ControlLogix Logix5565
|
Power Dissipation
|
3.5 Watts
|
|
Manufacture Year
|
2021
|
Current Draw (5.1 Volts DC)
|
1200 milliamps
|
|
Product Package
|
Original Package
|
Thermal Dissipation
|
11.9 BTU per hour
|

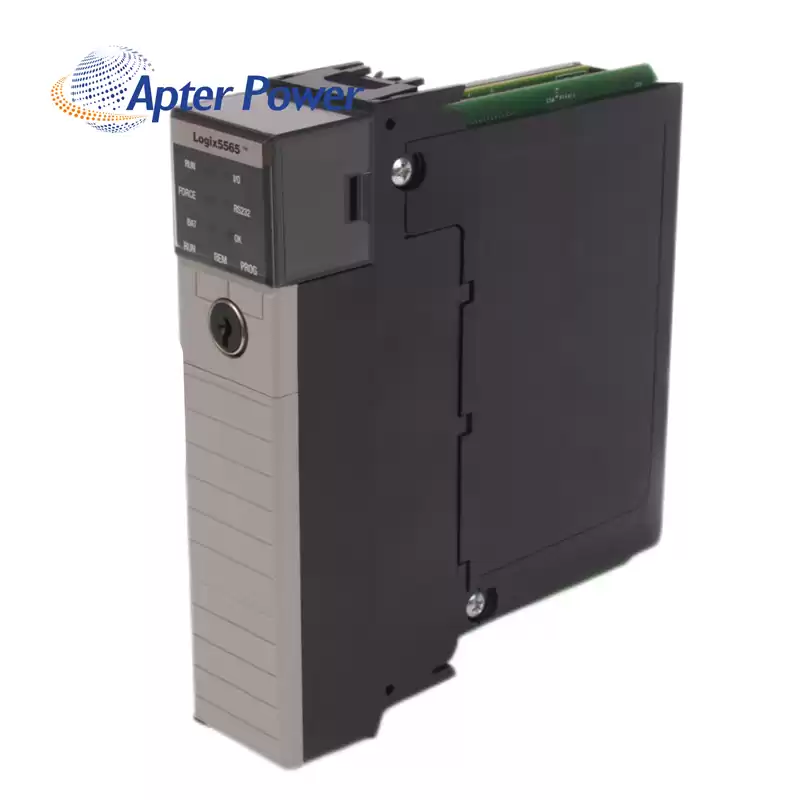

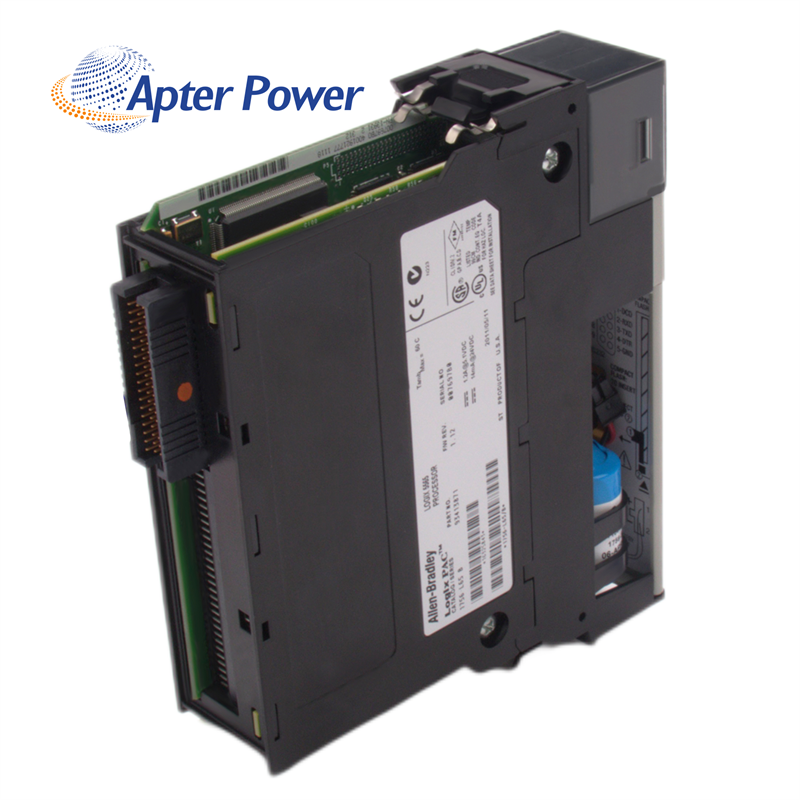

About 1756-L65
|
The 1756-L65 controller has an operating temperature that ranges from 0 to 60 Degrees Celsius, as well as a storage temperature ranging from -40 to 85 Degrees Celsius. It also has a maximum surrounding air temperature of 60 Degrees Celsius and a noncondensing relative humidity range of 5% to 95%. The controller has a vibration of 2 g at 10 to 500 Hz, an operating shock of 30 g, and a non-operating shock of 50 g.

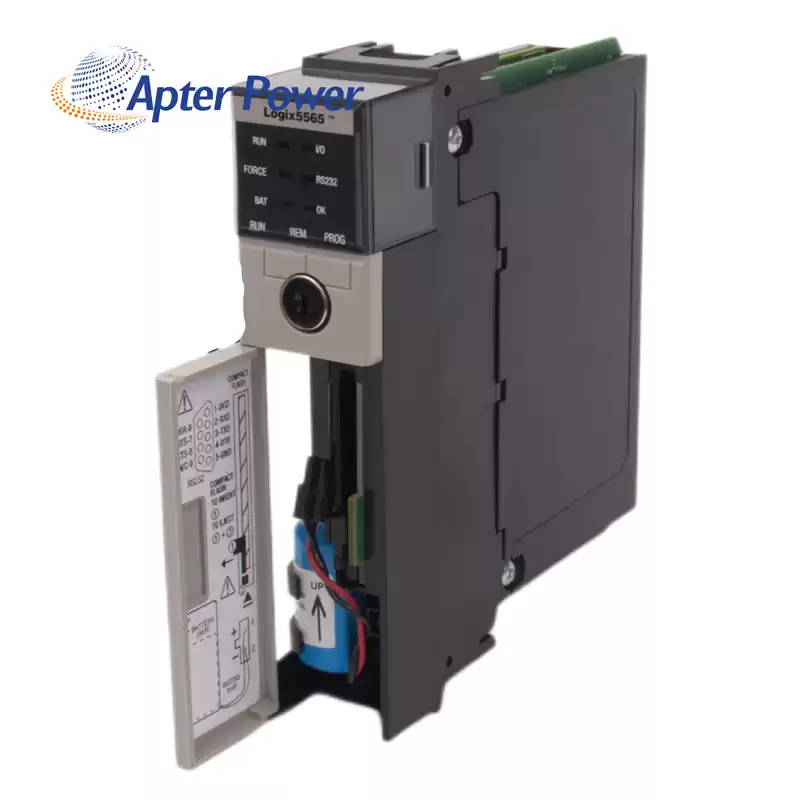

The 1756-L65 is a Series B ControlLogix controller. It has a built-in RS-232 serial port available, as well as a user memory for data and logic of 32 MB and an I/O memory of 478 kb. You can also install an optional nonvolatile memory storage with this controller. However, what can be installed is only the 128 MB CompactFlash 1756-CF128 memory card. It also has a battery that can be replaced but only when needed.
It has a maximum analog I/O of 4000 and a maximum digital I/O, as well as a maximum total I/O, of 128,000. It has a current draw of 1200 mA at 5.1V DC and 14 mA at 24V DC. Its power dissipation is 3.5 W and thermal dissipation is at 11.9 BTU/hr. It also has a continuous isolation voltage of 30V.
|
