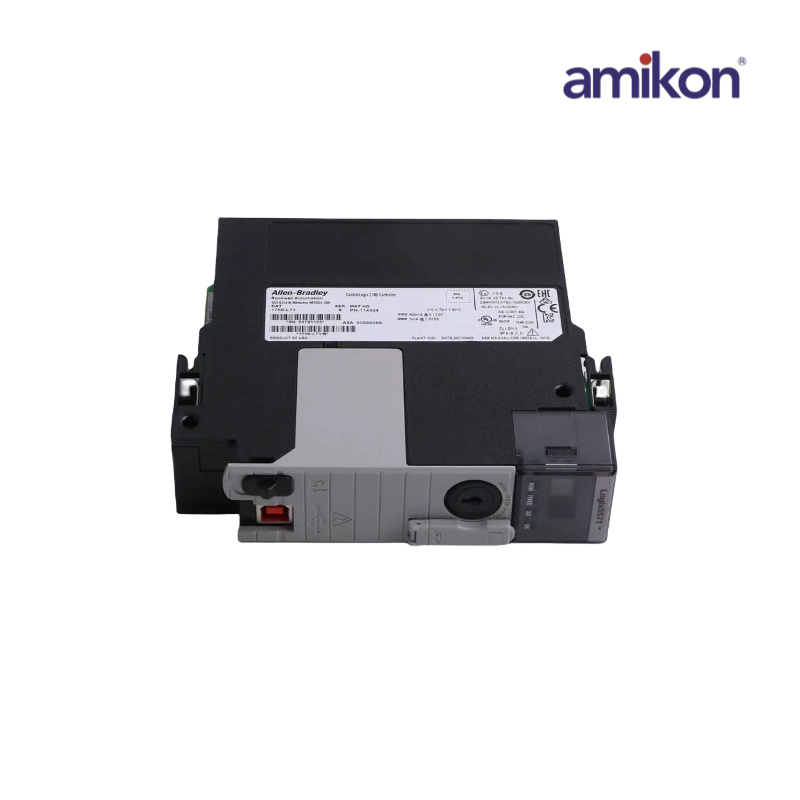

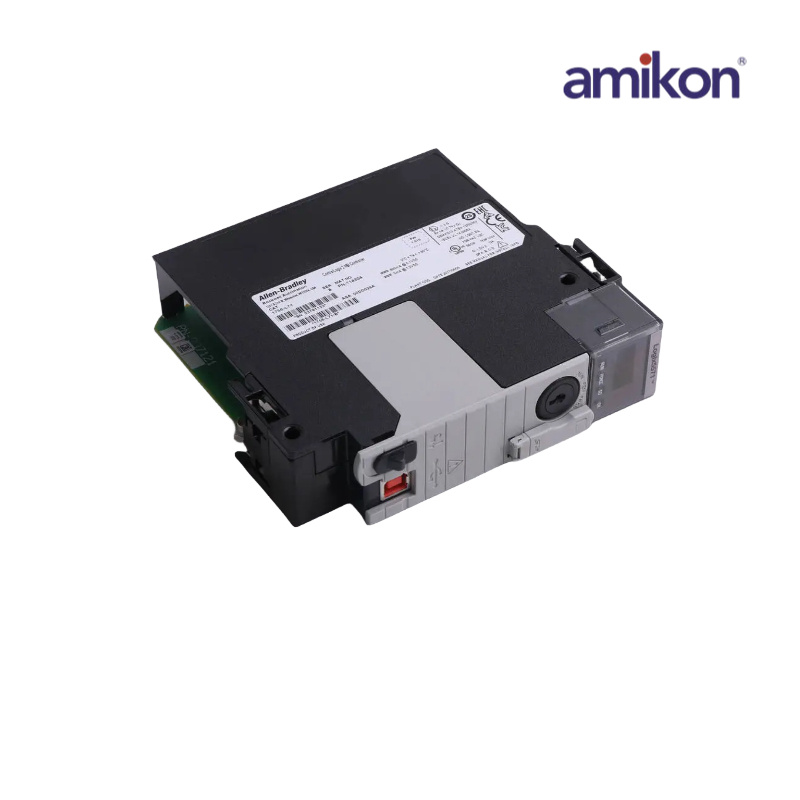

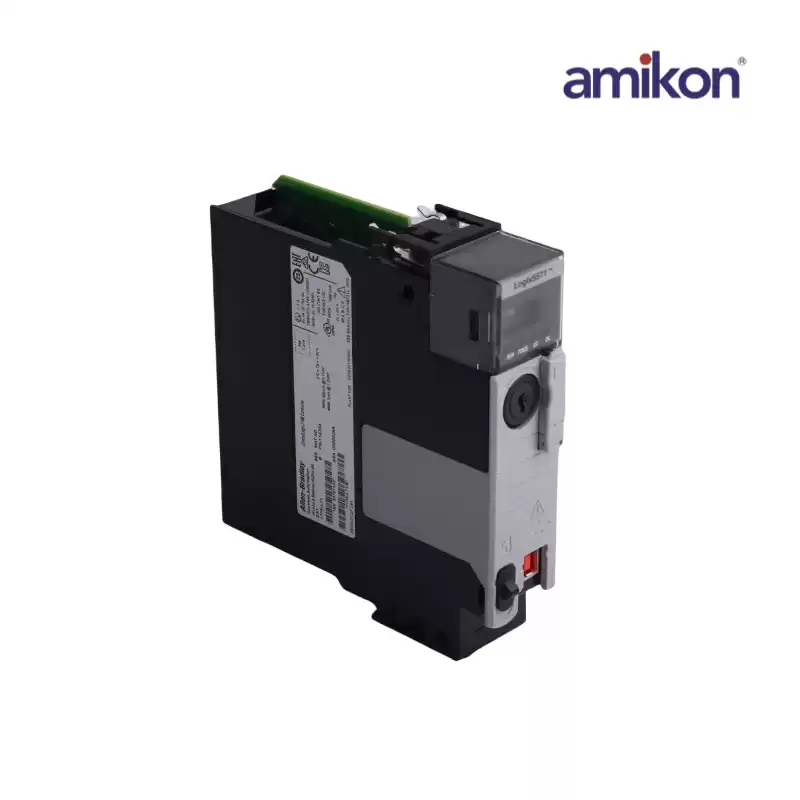

1756-L71 ControlLogix Logix5571 Controller
|
|
Product Origin: USA
|
Manufacturer：AB
|
|
Dimension: 3.8cmx14.2cmx14cm
|
Weight:0.2KG
|
|
The 1756-L71 controller ships with three capacitor energy storage modules, two of which are removable. It has a current draw of 5 mA at 1.2 Volts DC and 800 mA at 5.1 Volts DC. The 1756-L71 controller also has a continuous isolation voltage of 30 Volts, a maximum power dissipation of 2.5 Watts, and a thermal dissipation of 8.5 BTU/hour.
The 1756-L71 mainly feature 2MB user memory and 0.98 MB I/O memory. It is also shipped with a 1784-SD1 Secure Digital (SD) memory card amounting to 1 GB non-volatile memory which can be upgraded to 2GB by replacing with 1784-SD2 card.This controller can handle up to 128,000 Discrete input and output signals and 4000 Analog Input and output signals as well.
|
