Technical Specifications for 1756-L82E
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Input Current
|
0 to +20 mA
|
|
Part Number/Catalog No.
|
1756-L82E
|
Input Voltage
|
5-32 Volts DC
|
|
Module Type
|
Analog Input Module
|
Backplane Current
|
195 milliamps
|
|
Manufacture Year
|
2022
|
Power Dissipation
|
6.2 Watts
|
|
Product Package
|
Original Package
|
UPC
|
10662073735905
|

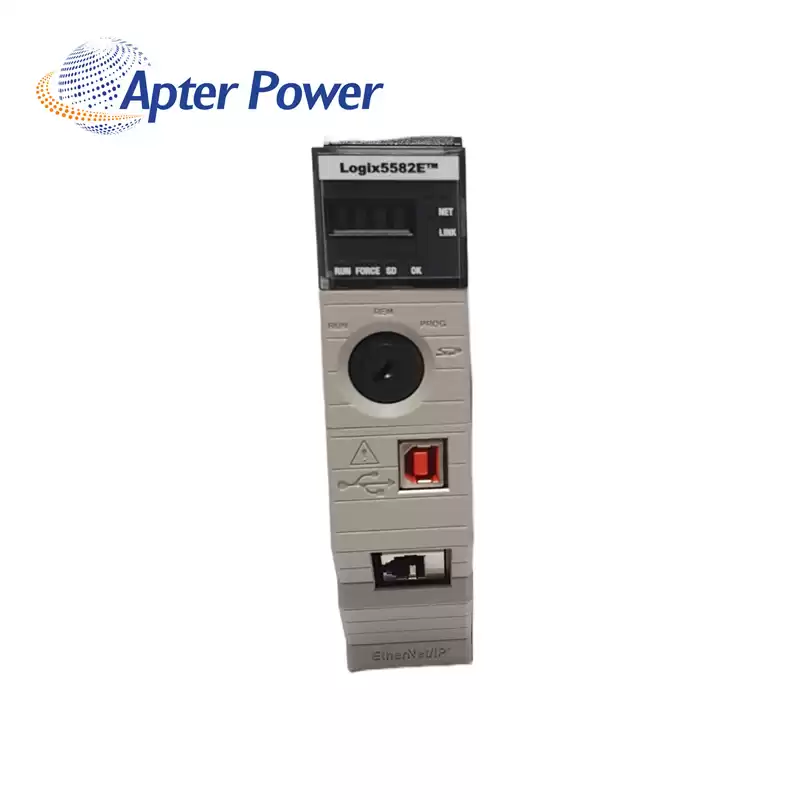

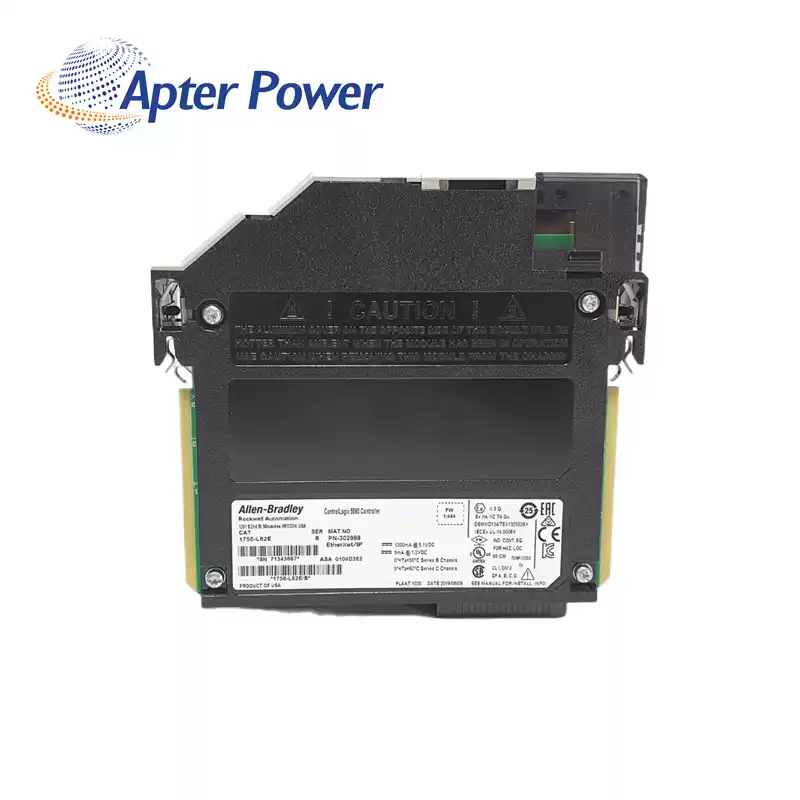

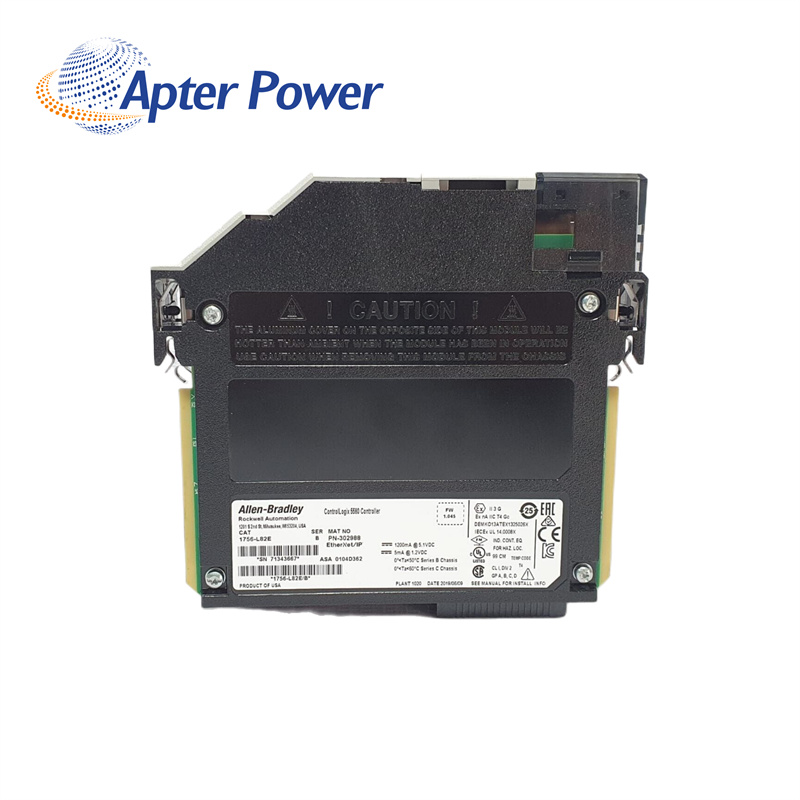

About 1756-L82E
|
The 1756-L82E has a controller-fitted energy storage module which eliminates the need for an external battery and draws 5mA current from the backplane at 1.2V DC and draws 1.2mA at 5.1V DC. A 50V circuit isolation is provided from USB port-to-Ethernet port, USB port-to-backplane, and Ethernet port-to-backplane, using a basic insulation tested at 1000V AC for 60 seconds.
The 1756-L82E comes with 5MB user memory and ships with a 1784-SD2 that holds 2GB non-volatile user memory. This controller supports up to 128,000 Discrete I/O, 4000 Analog I/O. It does not require use of batteries to retain data within the controller’s Random Access Memory (RAM) as this controller is equipped with a more environmentally friendly energy storage module that is composed of capacitors, however, this energy storage cannot be replace and removed from the controller.
|
