1756-L83E/B
|
|
Dimensions ：
|
10.2 cm x 15.2 cm x 15.2 cm
|
Weight：
|
1.1KG
|
|

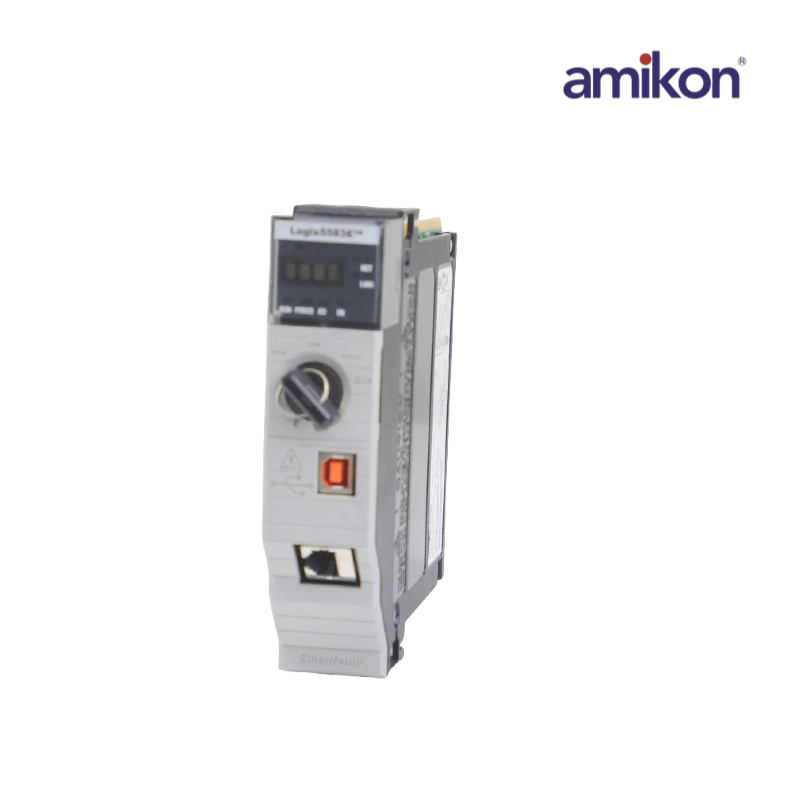

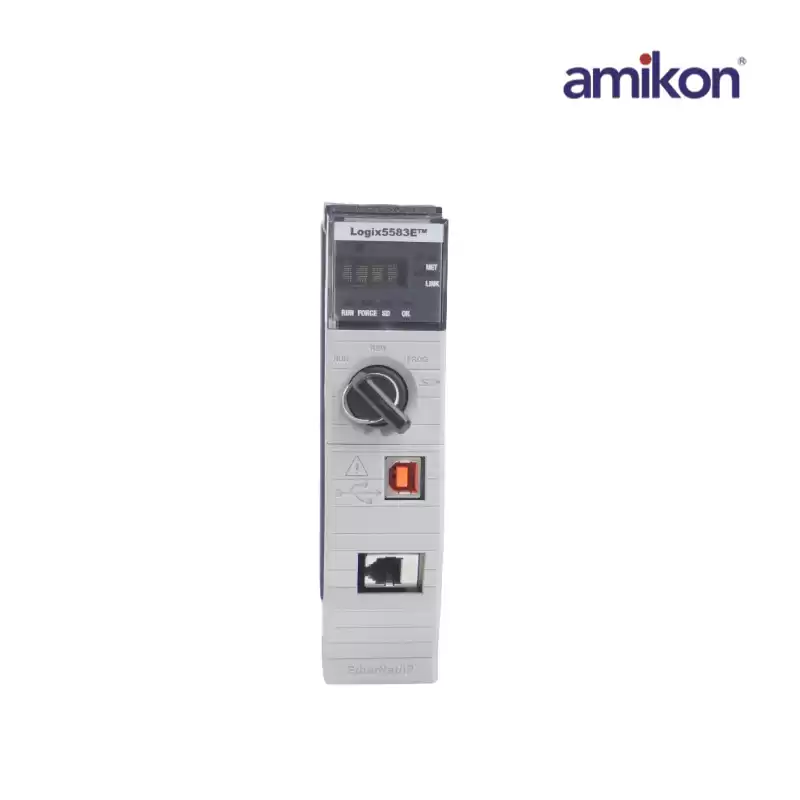

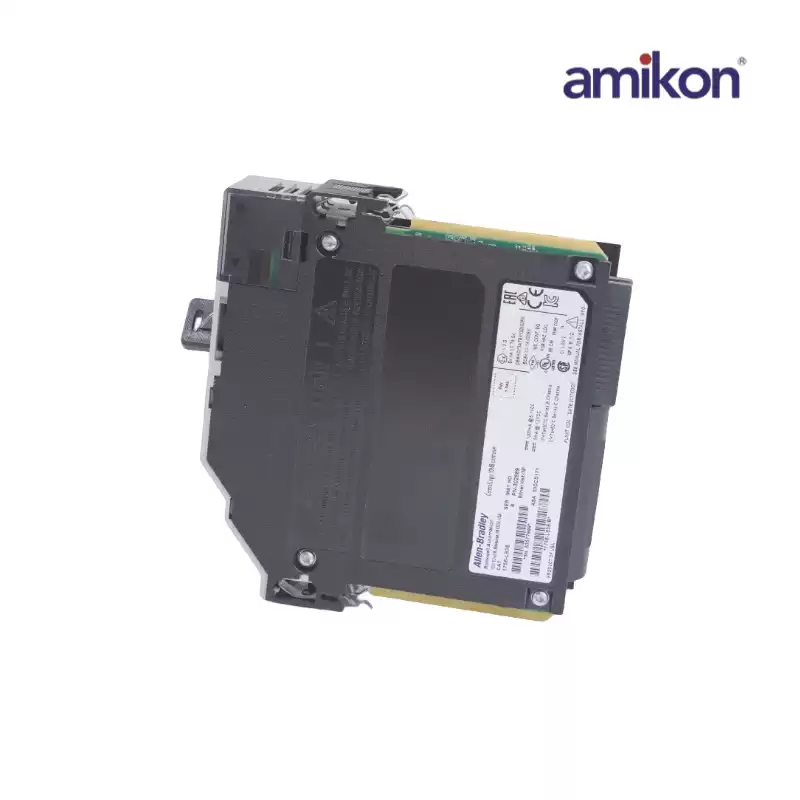

The 1756-L83E is a ControlLogix 5580 controller centered on EtherNet/IP communication. It supports 32 tasks where up to 1000 programs/task including event tasks with all event triggers being implemented. The controller has an available user memory for data and logic of 10 MB and an optional non-volatile storage memory. It ships with a 2 GB Secure Digital (SD) card, the 1784-SD2, that is already preinstalled with the controller.
The 1756-L83E controller has a continuous isolation voltage of 50V and it has been type tested at 1000V AC for 60 seconds. It also has a current draw of 5.0 mA at 1.2V DC and 1.20 A at 5.1V DC Power dissipation of this controller is 6.2 W and thermal dissipation is 21.2 BTU/hr.
|
|
