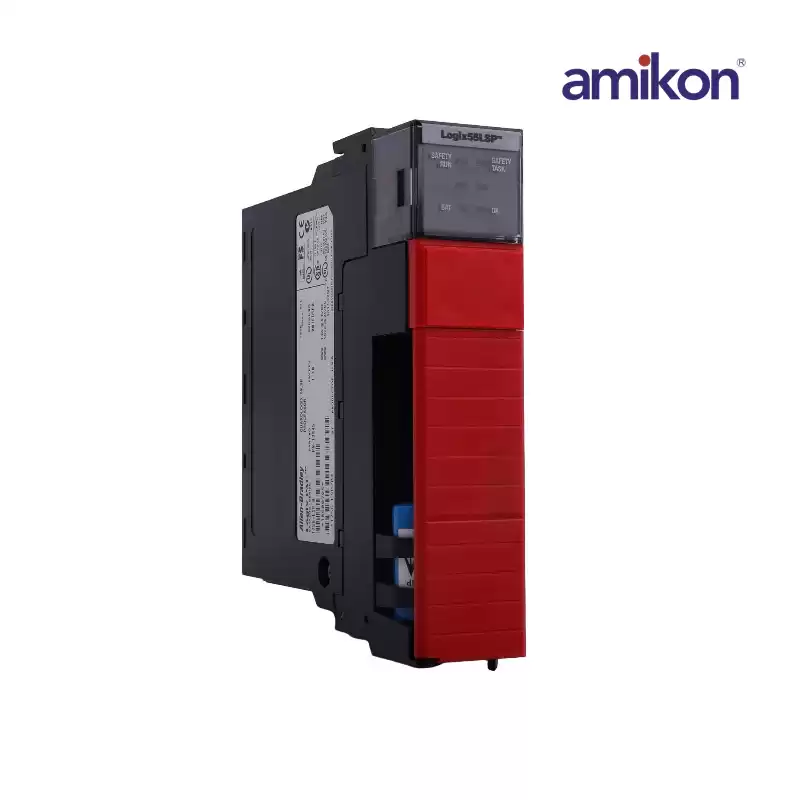

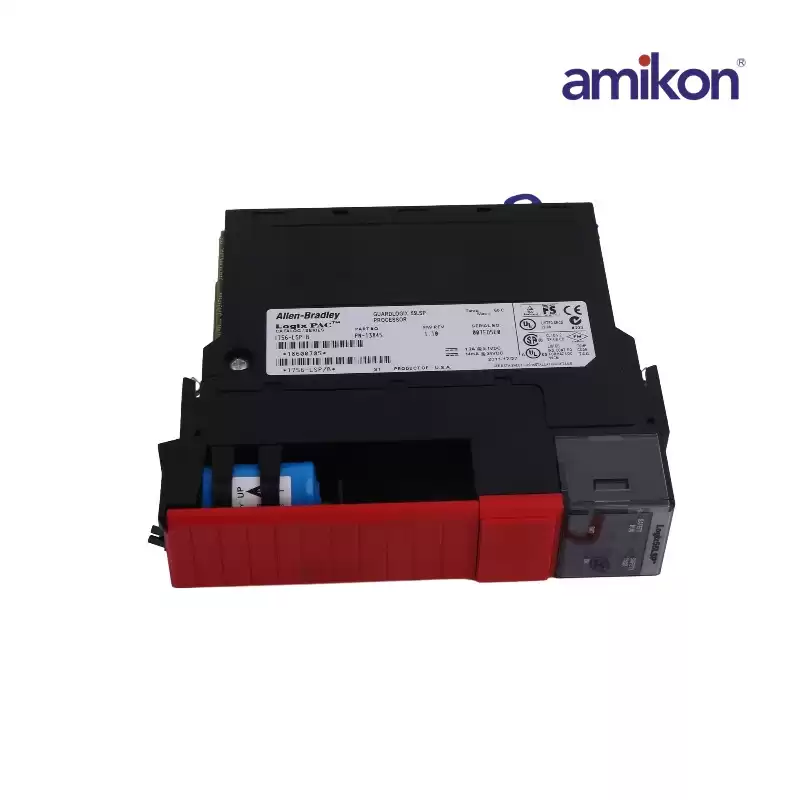

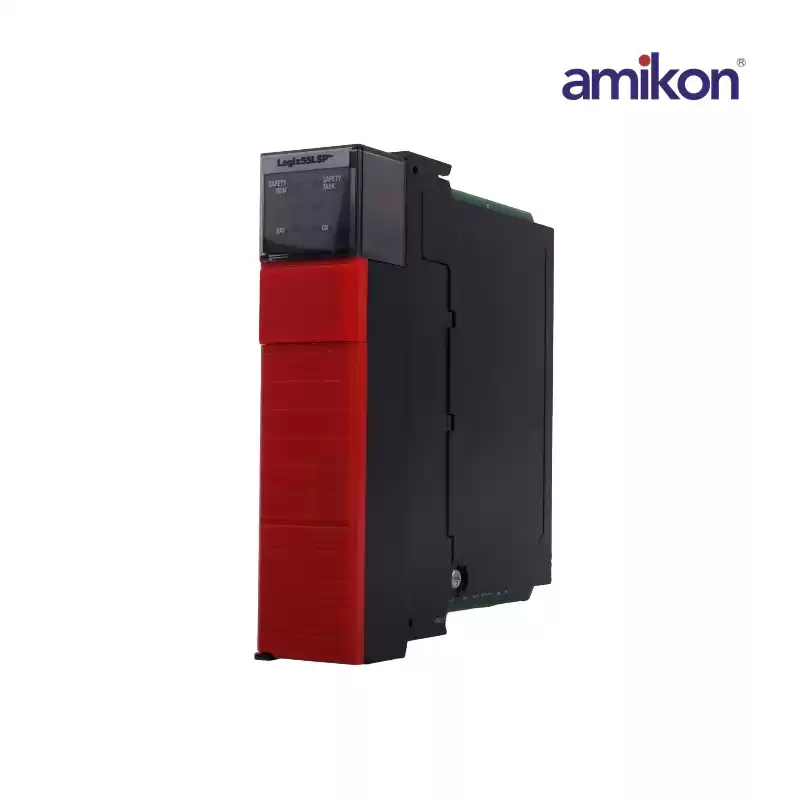

1756-LSP
|
|
Product Origin: USA
|
Manufacturer：AB
|
|
Dimension:3.6cmx14cmx15cm
|
Weight:0.35KG
|
|
Full Description: 1756LSP ControlLogix GuardLogix Safety Partner Processor. No User Memory for standard tasks; User Memory for safety task is the same as in corresponding GuardLogix primary controller.
|
|
The 1756-LSP is a 5560 GuardLogix component module. This module is a Safety Partner module, used with a primary controller for implementing safety functions that is compliant up to and including (SIL) 3 and Performance Level (e) applications. The 1756-LSP is compatible for use with 1756-L61S, 1756-L62S, and 1756-L63S primary controllers. It acts as a redundant co-processor providing an isolated safety controller functionality.
The 1756-LSP has a safety memory that corresponds to the user memory of the primary controller. If used with the 1756-L61S and 1756-L62S, the 1756-LSP safety memory is 1MB while 3.75 MB if used with the 1756-L63S.The 1756-LSP is installed to the immediate slot beside the primary controller. It occupies a single slot of the module; however, as this module requires pairing to a primary controller, the module pair occupies 2 slots of the chassis.
|
