Technical Specifications for 1756-M02AE
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
100 Miliamperes
|
|
Part Number/Catalog No.
|
1756-M02AE
|
Input Voltage
|
12-24 Volts DC
|
|
Module Type
|
ControlLogix
|
Power Consumption
|
6.2 Watts
|
|
Manufacture Year
|
2022
|
Thermal Dissipation
|
21.2 BTU-hour
|
|
Product Package
|
Original Package
|
UPC
|
10612598172396
|

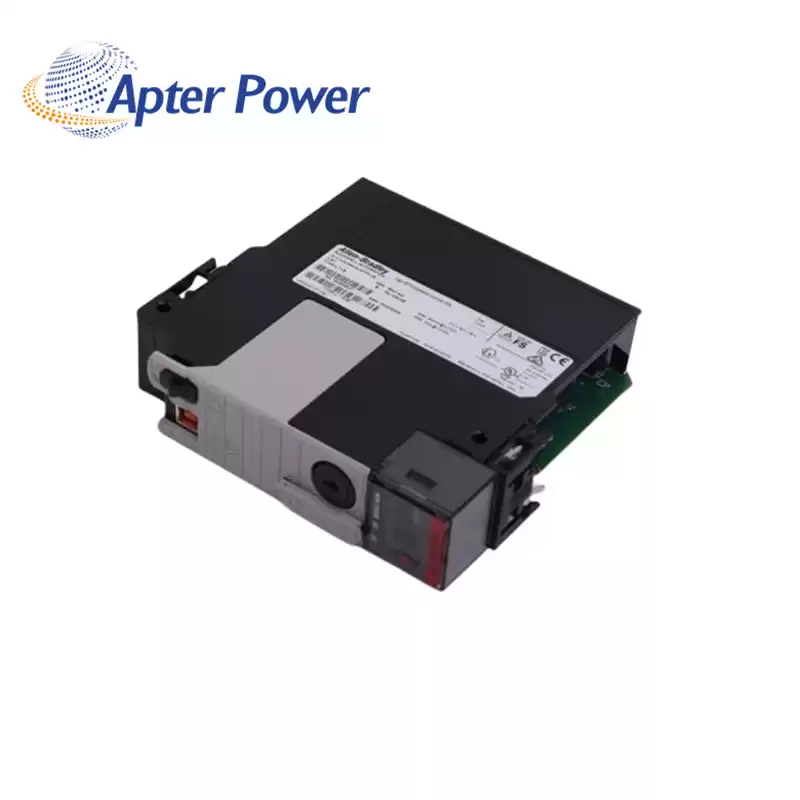

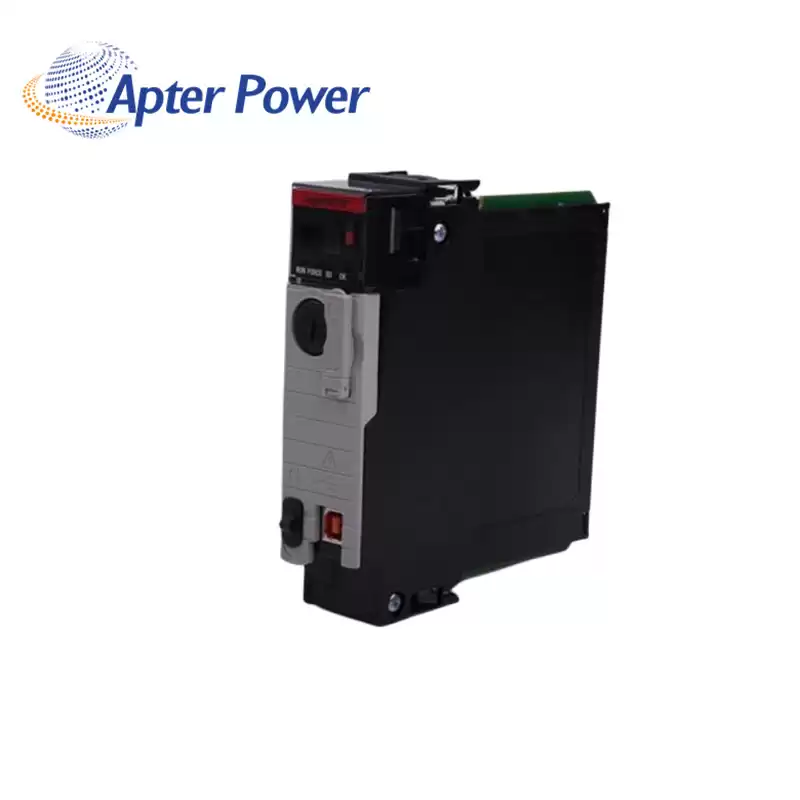

About 1756-M02AE
|
The 1756-M02AE module functions with several quadrature-output rotary and linear transducers. It can be mounted to a ControlLogix chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and the 1756-A17, but it requires an RTB, or Removable Terminal Block. The 1756-TBCH or the 1756-TBS6H RTB are both compatible this module, and they can be installed in any available slot of the chassis. Ground the chassis and power supply before installing the module with the RTB to the chassis.
The 1756-M02AE module also has home limit switch inputs, drive fault inputs, and drive enable outputs. Three direct connections are possible with the 1756-M02AE module. Its servo loop type is a nested PI digital position and velocity servo.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
