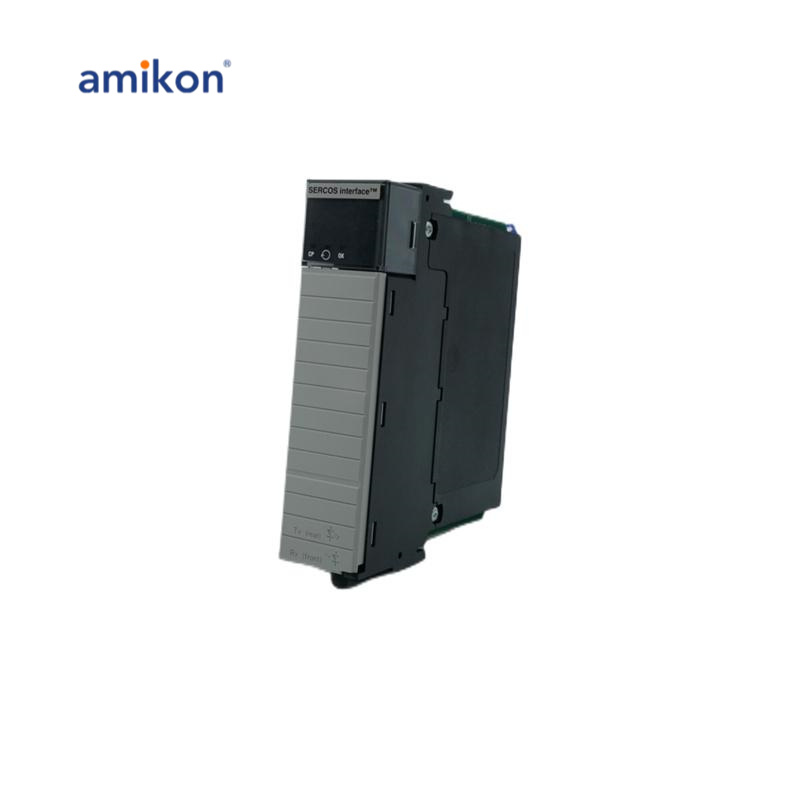

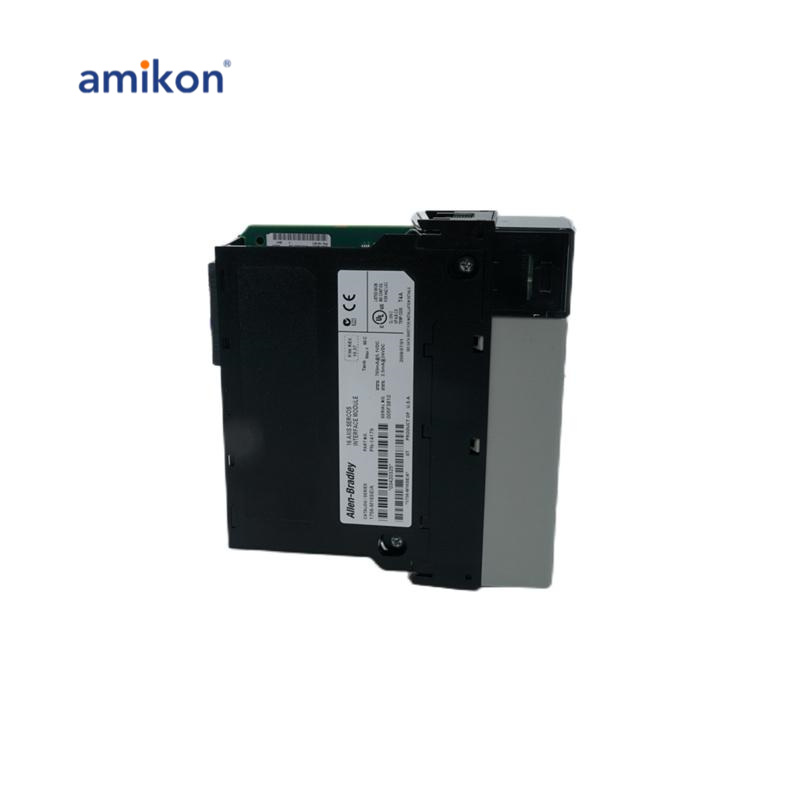

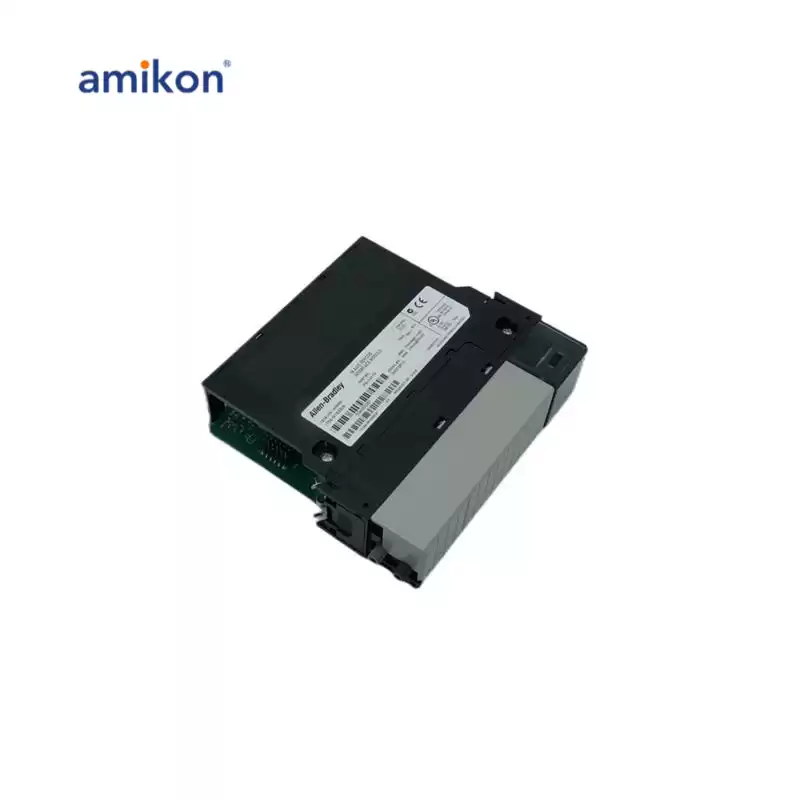

The 1756-M16SE interface module uses 1 digital fiber-optic link that eliminates the need for up to 18 digital wires per axis. The user can send detailed drive-status information from the drive to the controller and vice versa.
|
|
1756-M16SE Description:
|
It can connect to the following servo drives: the 2093 Kinetix 2000, the 2094 Kinetix 6000, the 2099 Kinetix 7000 high-power servo drive, and the 2098 Ultra3000 SERCOS servo drive.
|
|
It has 16 axes per module and 32 axes per controller. Its SERCOS data rate is either 4 or 8 Mb/s and its SERCOS cycle time is 1 ms for as many as 4 drives at 4 Mb/s and it is 0.5 ms for as many as 4 drives at 8 Mb/s.
|
|
The control modes regulate velocity, torque, and precision. The 1756-M16SE’s current draw is 760 mA at 5V DC and 2.4 mA at 24V DC.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
