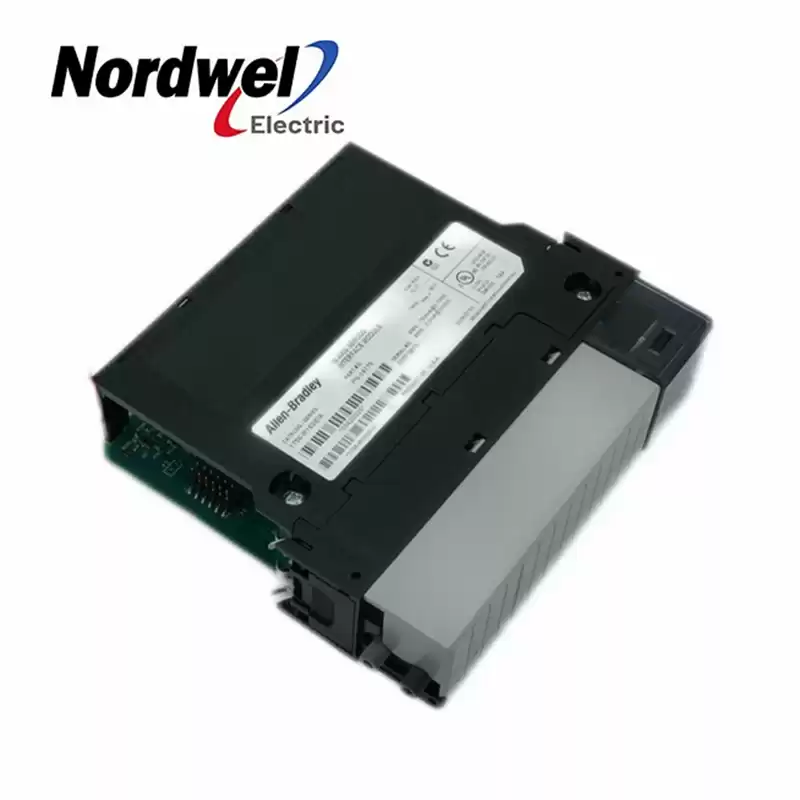

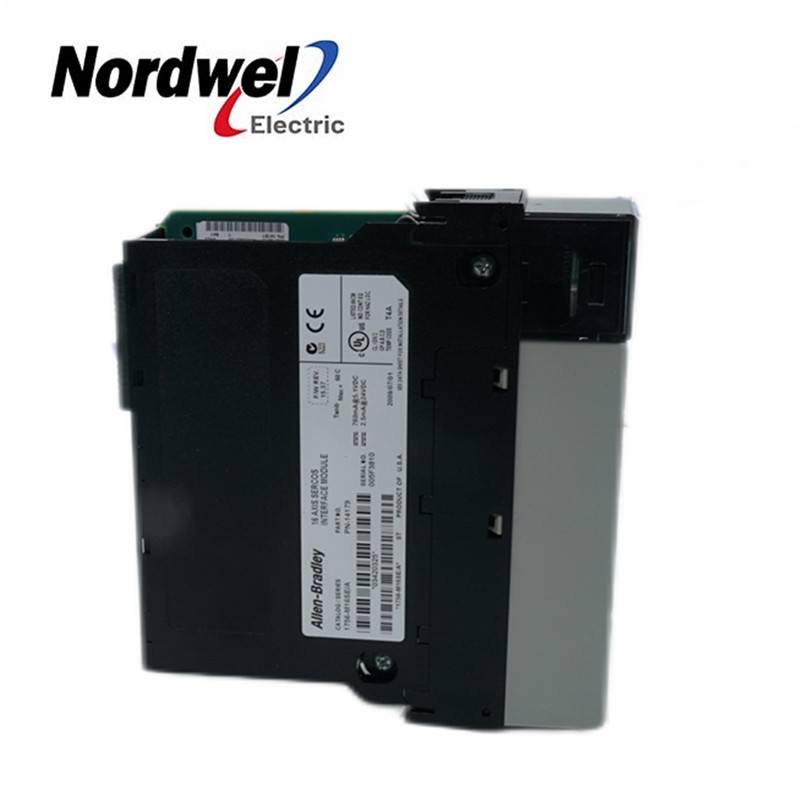

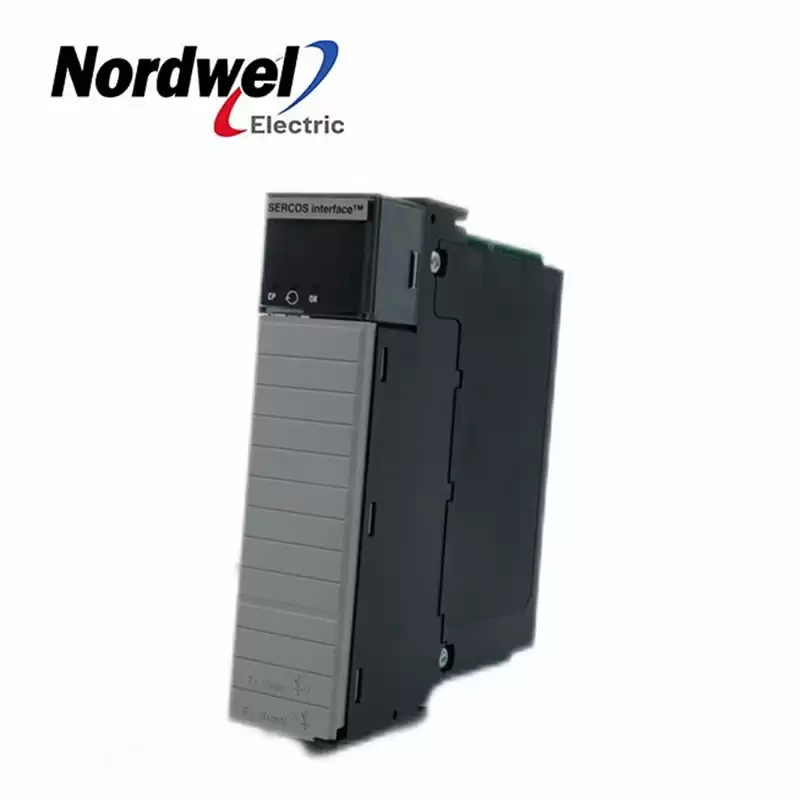

Technical Specifications for 1756-M16SE
Isolation Voltage 50 Volts Continuous
Power Dissipation 6.2 Watts
Current Draw (5.1 Volts) 1.2 amps
SERCOS Data Rate 4 or 8 Megabits-Second
Power Dissipation 6.2 Watts
Backplane Current (24Volts) 2.5 milliamps
Backplane Current (5Volts) 760 milliamps
Axes per Controller 32
Axes per Module 16
Module Type Sercos Servo Module
Series ControlLogix
Part Number/Catalog No. 1756-M16SE
Enclosure None
Brand
Manufacturer Automation
Power supply, standard 1756-PA72/C, 1756-PA75/B, 1756-PB72/C, 1756-PB75/B,
1756-PC75/B, 1756-PH75/B
Power supply, redundant 1756-PA75R, 1756-PB75R, 1756-PSCA2
Plastic fiber-optic cables 2090-SCEPxx-0 non-jacketed, chlorinated polyethylene 2090-SCVPxx-0
standard jacket, polyvinyl chloride 2090-SCNPxx-0 nylon jacket
Thermal Dissipation 21.2 BTU-hour
