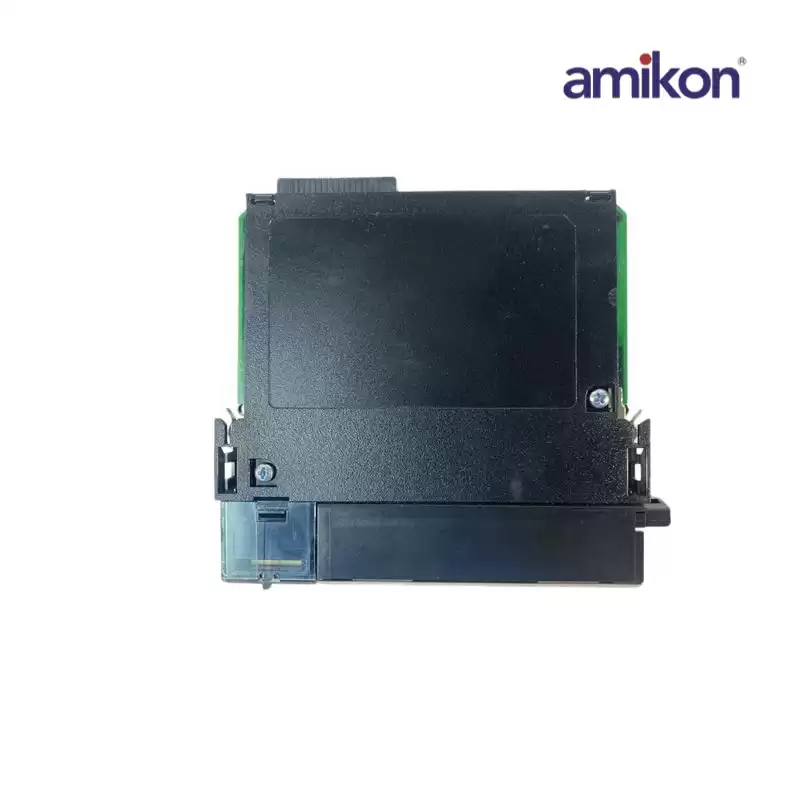

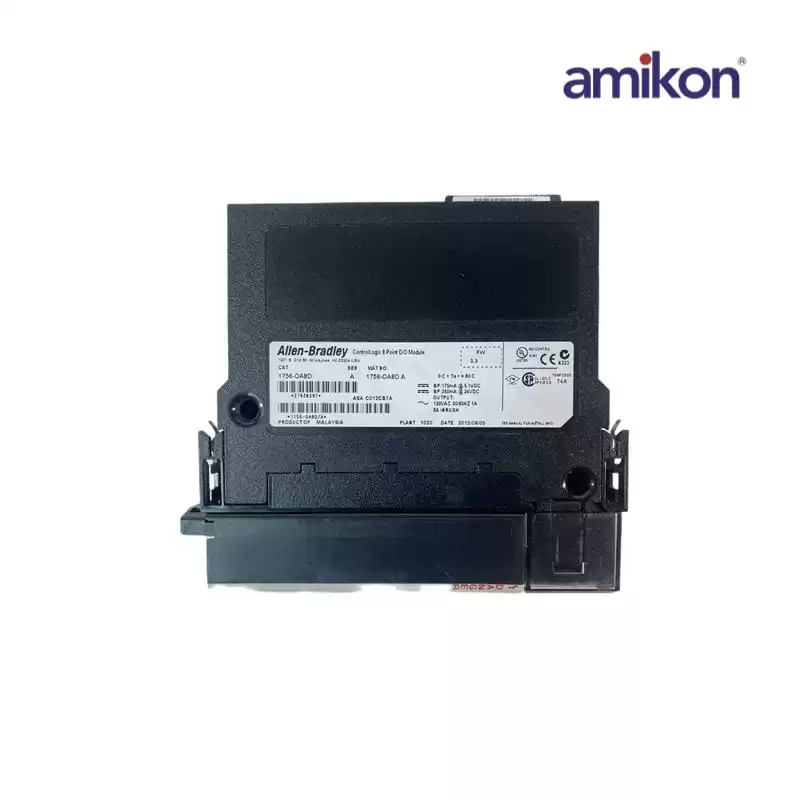

1756-OA8D
|
|
Dimensions ：
|
2.5cmx15cmx15cm
|
Weight：
|
0.2KG
|
|
The 1756-OA8D has a draw current of 175mA at 5.1V and 250mA at 24V and a power dissipation of 53W and a thermal dissipation of 18.0 BTU/hr. In its OFF state, it has a leakage current of 3mA per point and a maximum drop voltage of 3.0V at 1.0A.
The 1756-OA8D module has a maximum surge current of 8A for 43ms per point, recurring every 2s at 30 °C, and the minimum load on each output point is 10mA. It has an isolation voltage of 125V (Continuous) with basic (insulation Type) tested at 1200V AC for 2s between output group-to-group and outputs-to-backplane but there is no isolation between individual group outputs.
|
|
