It has an isolation voltage of 125V (Continuous) with basic (insulation Type) tested at 1200V AC for 2s between output group-to-group and outputs-to-backplane but there is no isolation between individual group outputs.
|
|

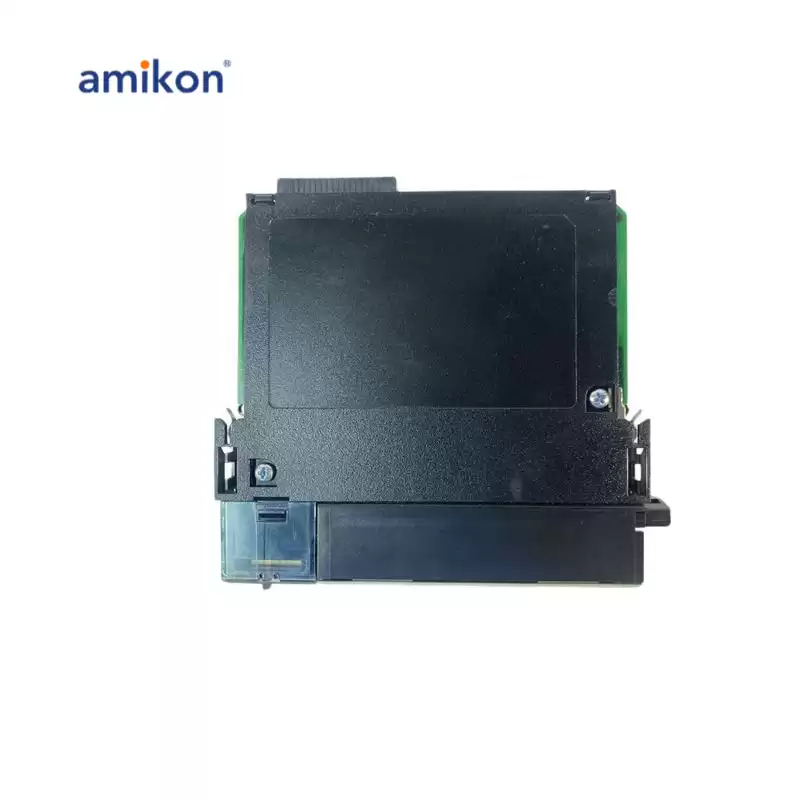

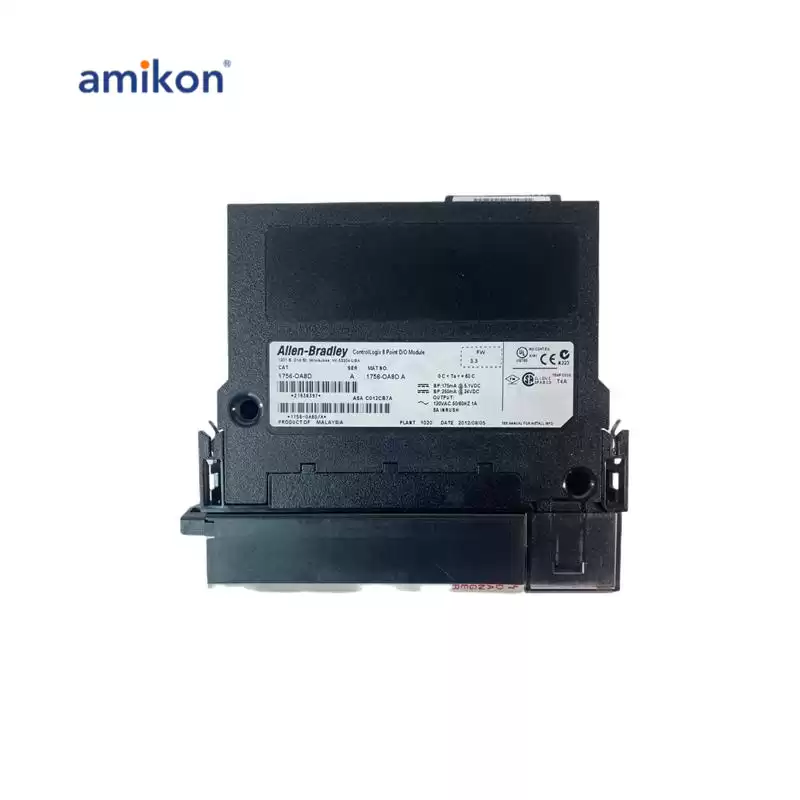

1756-OA8D Description:
|
It also has a maximum surge current of 8A for 43ms per point, recurring every 2s at 30 °C, and the minimum load on each output point is 10mA.
|
|
It has a draw current of 175mA at 5.1V and 250mA at 24V and a power dissipation of 53W and a thermal dissipation of 18.0 BTU/hr.
|
|
In its OFF state, it has a leakage current of 3mA per point and a maximum drop voltage of 3.0V at 1.0A.
|
|
