The 1756-OA8E ControlLogix 120V AC Output Digital Module by Allen-Bradley is a digital output module installed in any slot on the ControlLogix chassis and it has 8 electronically-fused 120V AC outputs. It comes with an output voltage range of 74-132V AC at 47-63 Hz and an output linger time of 9.3ms at 60 Hertz and 11ms at 50 Hertz for ON/OFF and OFF/ON.
The 1756-OA8E has a 200mA backplane draw current at 5.1V and 250mA at 24V and a total backplane power rating of 7.02 Watt. It has a power dissipation of 5.5 Watt and 18.76 BTU/hr thermal dissipation. The 1756-OA8E’s maximum OFF state leakage current is at 3mA per point and the voltage lost in its circuit peaks at 4V in the ON state.

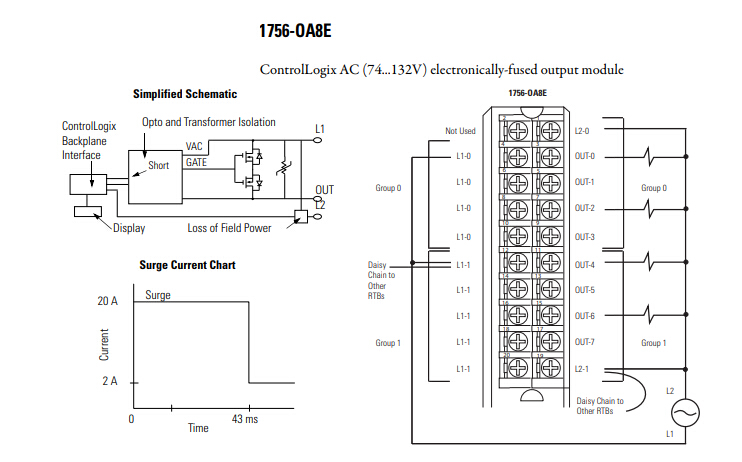

The 1756-OA8E has a maximum current of 2A on each output point, and the gross current on the module’s outputs is 8A at 30 °C. The minimum load on each point is 10mA, and the circuit has a current surge of 20A for 43ms per point recurring every 2s. The 1756-OA8E’s isolation voltage is 125V adopting basic insulation type tested at 1200V AC for 2 seconds between outputs-to-backplane and output group-to-group.
It is CE and UL-certified for industrial purpose and it is designated at the T4 temperature code and comes in an open-style enclosure. The 1756-OA8E’s optimal temperature ranges between 0 and 60 Celsius at 5-95% non-condensing relative humidity condition and it is stored and shipped at a temperature range between -40 and 85 °C.
|
Attribute
|
|
1756-OA8E
|
|
|
|
|
|
Outputs
|
|
8 electronic fusing (4 points/group)
|
|
|
|
|
|
Voltage category
|
|
120V AC
|
|
|
|
|
|
Operating voltage range
|
|
74…132V AC
|
|
|
|
47…63 Hz
|
|
|
|
|
|
Output delay time
|
|
|
|
OFF to ON
|
|
9.3 ms @ 60 Hz
|
|
|
|
11 ms @ 50 Hz
|
|
|
|
|
|
ON to OFF
|
|
9.3 ms @ 60 Hz
|
|
|
|
11 ms @ 50 Hz
|
|
|
|
|
|
Current draw @ 5.1V
|
|
200 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
250 mA
|
|
|
|
|
|
Power dissipation, max
|
|
5.5 W @ 60 °C (140 °F)
|
Allen Bradley 1756-OA8E
1756-OA8E | Allen-Bradley | AC Output Module
Email:sales3@amikon.cn
Part Number:
|
1756-OA8E
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Electronic Fused AC Output Module
|
|
Outputs:
|
8-Point Electronic Fusing
|
|
Voltage:
|
120 Volts AC
|
