Technical Specifications for 1756-OA8E
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Power Dissipation
|
5.5 Watts
|
|
Part Number/Catalog No.
|
1756-OA8E
|
Backplane Current
|
200 milliamps
|
|
Module Type
|
AC Output Module
|
Isolation Voltage
|
50 Volts
|
|
Manufacture Year
|
2021
|
Operating Voltage Range
|
74-132 Volts AC
|
|
Product Package
|
Original Package
|
UPC
|
10612598171399
|
About 1756-OA8E
|

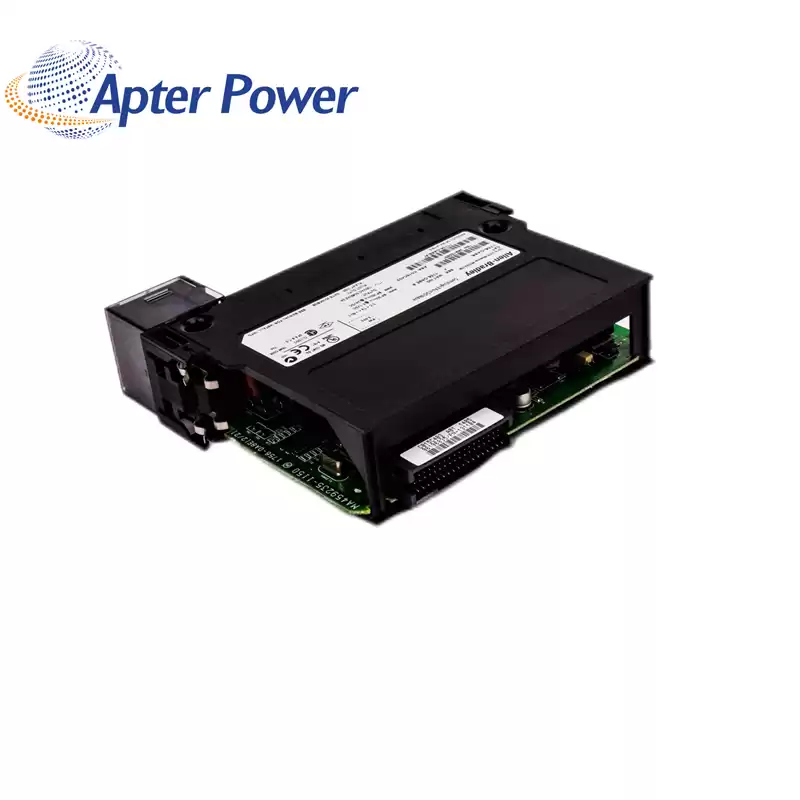

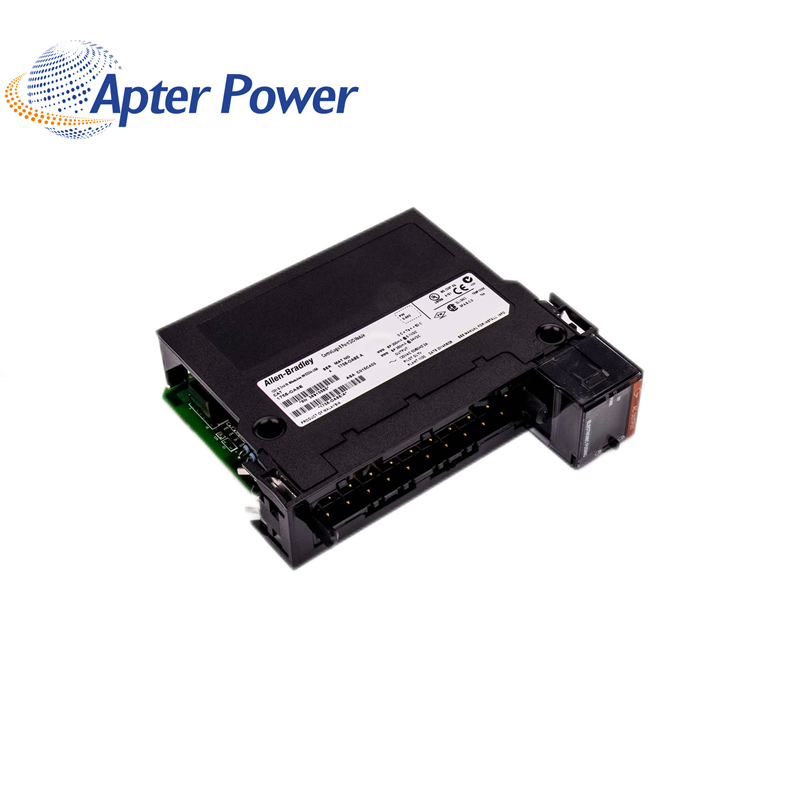

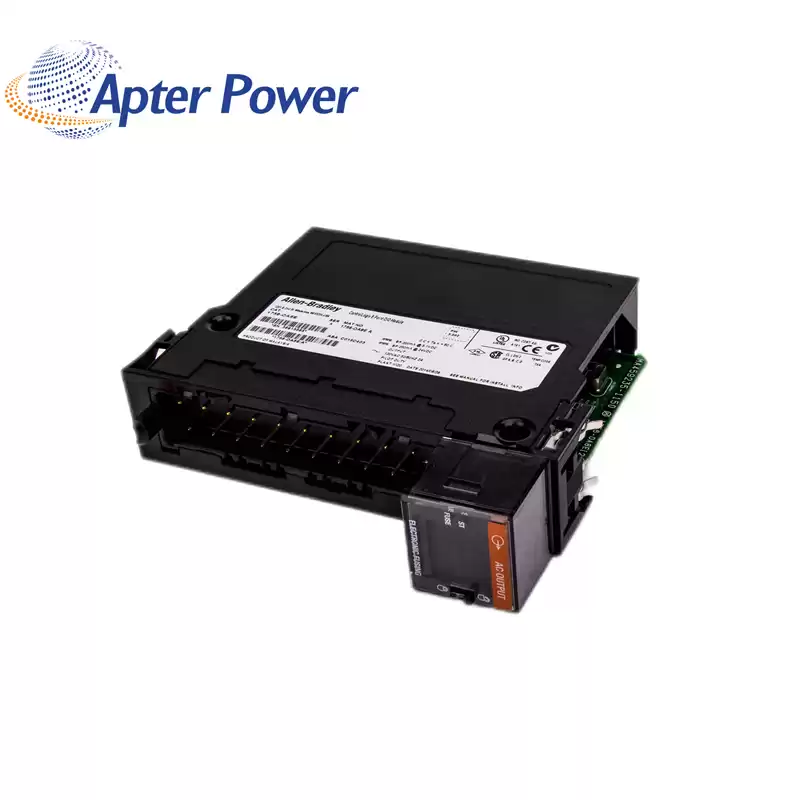

The 1756-OA8E ControlLogix 120V AC Output Digital Module by is a digital output module installed in any slot on the ControlLogix chassis and it has 8 electronically-fused 120V AC outputs. It comes with an output voltage range of 74-132V AC at 47-63 Hz and an output linger time of 9.3ms at 60 Hertz and 11ms at 50 Hertz for ON/OFF and OFF/ON.
The 1756-OA8E has a 200mA backplane draw current at 5.1V and 250mA at 24V and a total backplane power rating of 7.02 Watt. It has a power dissipation of 5.5 Watt and 18.76 BTU/hr thermal dissipation. The 1756-OA8E’s maximum OFF state leakage current is at 3mA per point and the voltage lost in its circuit peaks at 4V in the ON state.
The 1756-OA8E has an output delay time of 9.3 ms @ 60 Hz or 11 ms @ 50 Hz for Off to On and On to Off output transitions. This module may be installed to any available slot of the 1756 chassis with a current draw of 200 mA @ 5.1 VDC and 250 mA @ 24 VDC and total backplane power requirement of 7.02 Watts. It has a maximum power dissipation of 5.5 Watts @ degrees C (140 degrees F) and Thermal dissipation of 18.76 BTU/hr.
|
