Technical Specifications for 1756-OB16D
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Voltage
|
24 Volts
|
|
Part Number/Catalog No.
|
1756-OB16D
|
Isolation Voltage
|
50 Volts Continuous
|
|
Module Type
|
DC Output Module
|
Power Dissipation
|
3.3 Watts
|
|
Manufacture Year
|
2021
|
Thermal Dissipation
|
11.9 BTU per hour
|
|
Product Package
|
Original Package
|
UPC
|
10612598164537
|
About 1756-OB16D
|

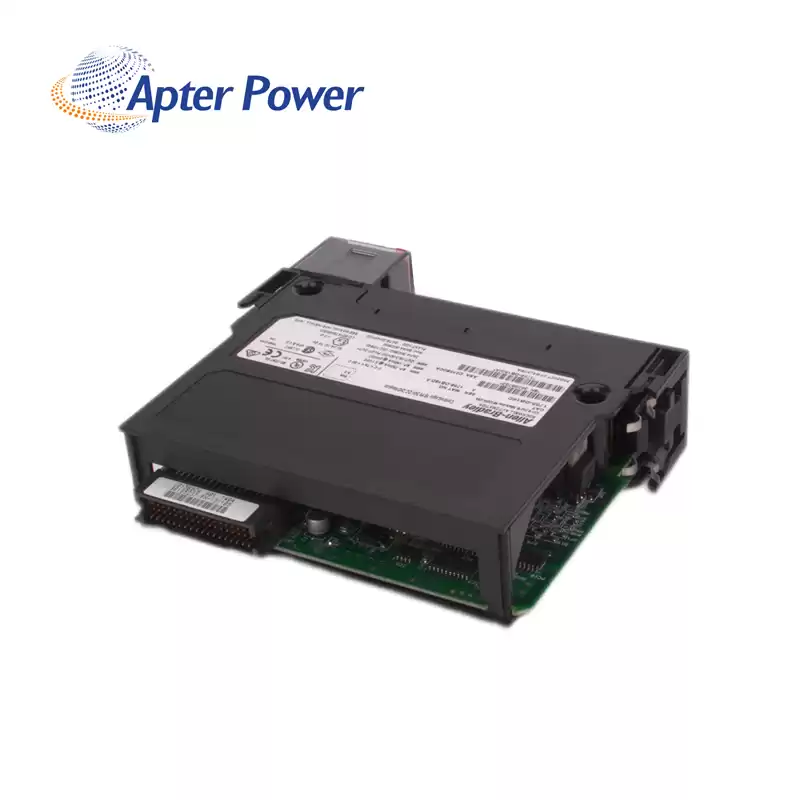

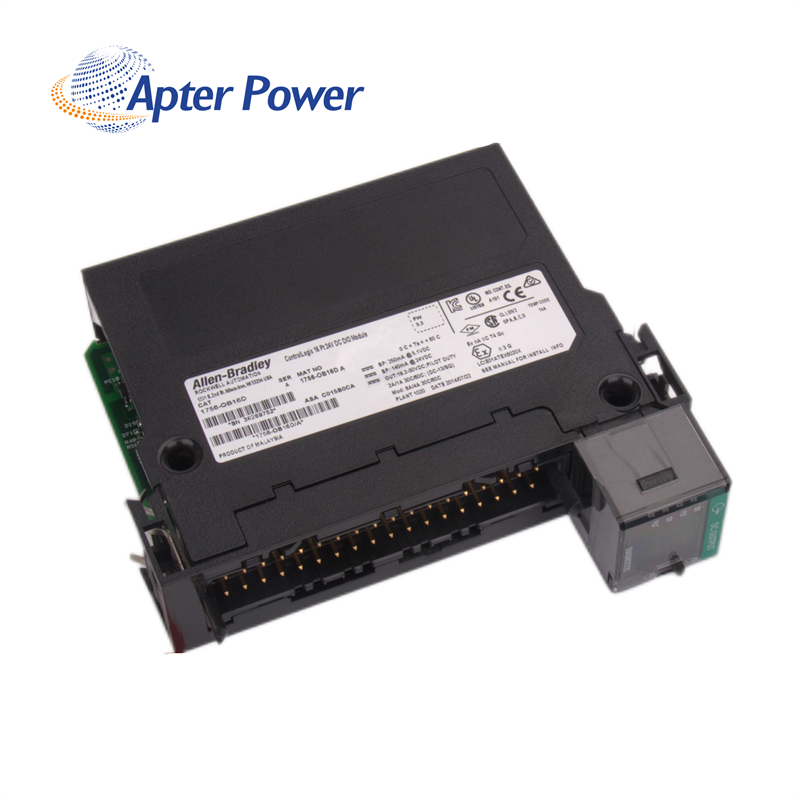

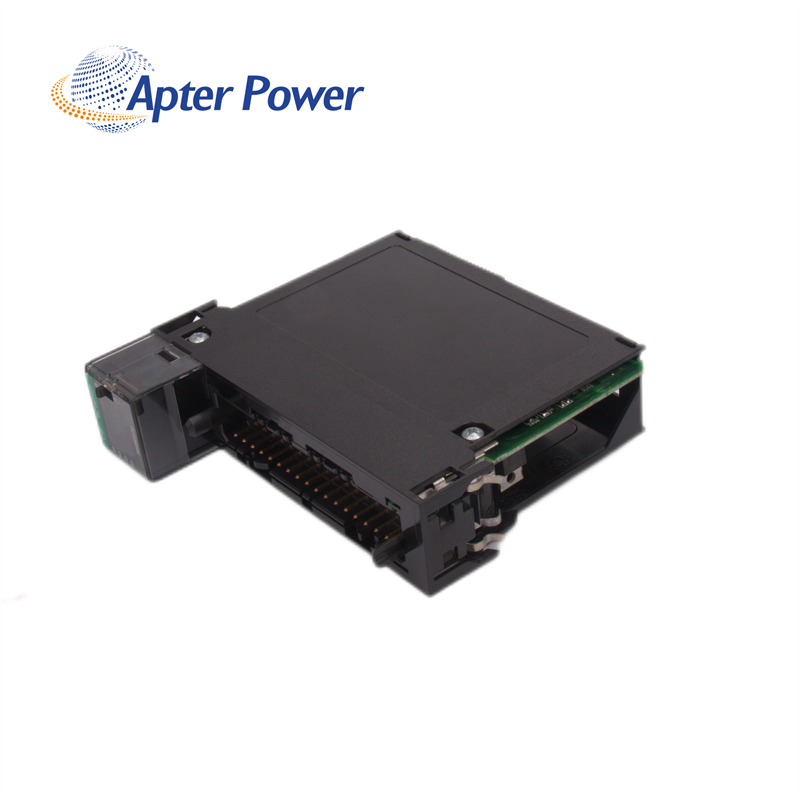

The 1756-OB16D is a ControlLogix DC diagnostic output module. It has 16 diagnostic outputs available, with 8 points per group, and has been fused electronically on a per-point basis. You can install it in any available slot in a compatible ControlLogix chassis. However, a 36-position removable terminal block housing (RTB) is required for this. The RTB can either be the 1756-TBCH or the 1756-TBS6H. It is important to install and ground the chassis and power supply before installing the module with the RTB.
This 1756-OB16D module has the following features in common with other output modules: output data echo, multiple output point densities, configurable point-level output states, electronic fusing, and isolated and non-isolated varieties of output modules. It also allows you to configure various features of the module, particularly a no-load detection, output verify detection, output state in Fault mode, output state in Program mode, transition from Program state to Fault state, and diagnostic latching.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
