1756-OB32 | Allen Bradley | 12/24V DC source digital output module

1756-OB32   ControlLogix 32 Pt 12/24V DC D/O Module



Allen Bradley   1756-OB32  !!!  --- sales3@amikon.cn


Contact:Jessica

Email:sales3@amikon.cn

Skype:jessica01235483

Wechat:hu18030235311

Mobile:86-18030235311(WhatsApp)

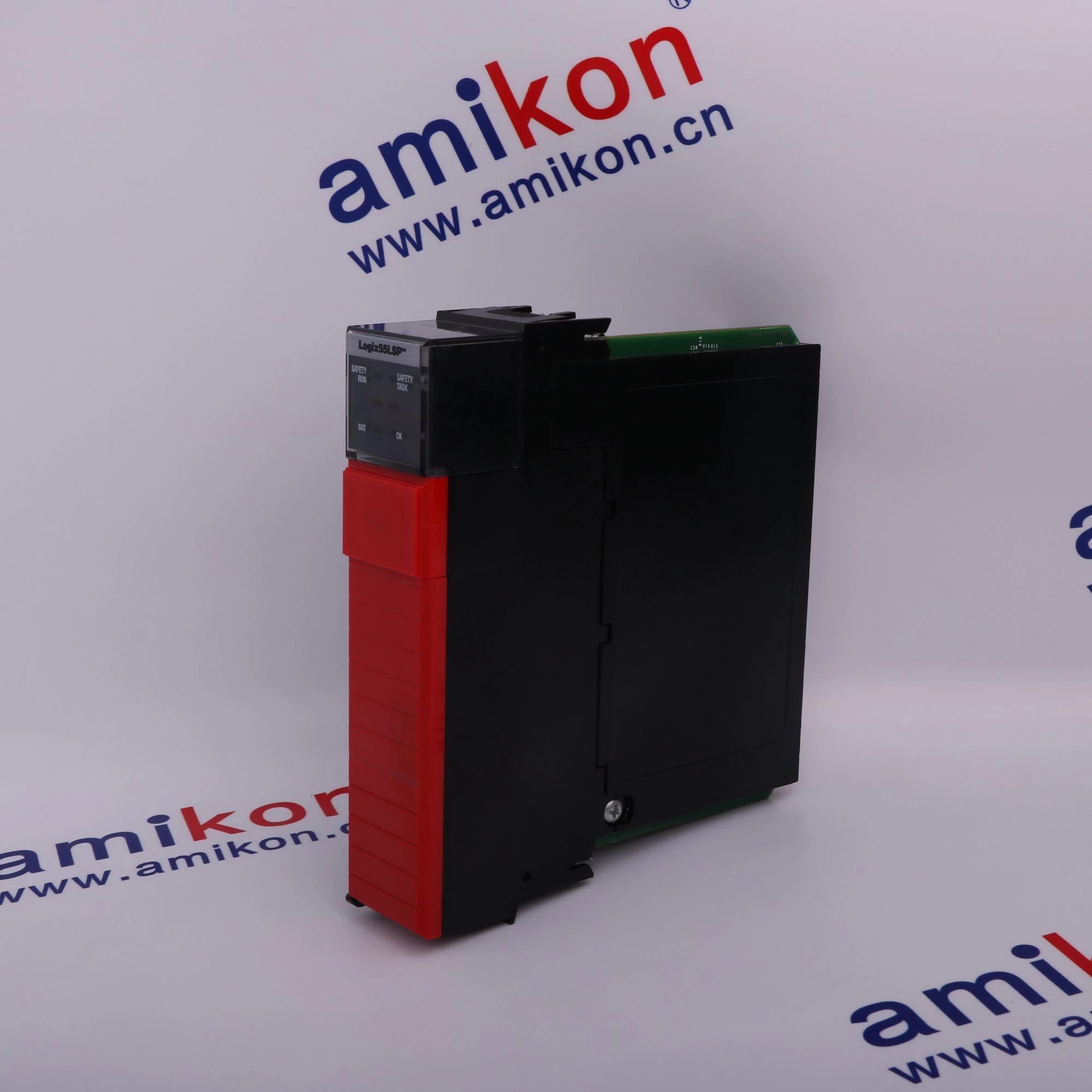

The Allen-Bradley / Rockwell Automation 1756-OB32 is a 12/24V DC source digital output module. It houses 32outputs (16 points/group). Operating voltage range for 1756OB32 is 10...31.2V DC. Removable terminal block houses 1756-TBCH and 1756-TBS6H.



A simple ControlLogix system consists of a standalone controller and I/O modules in a single chassis. For a more comprehensive system, use:


• multiple controllers in a single chassis.

• multiple controllers joined across networks.

• I/O in multiple platforms that are distributed in many locations and connected over multiple I/O




Attribute  1756-OB32
Outputs  32 (16 points/group)
Voltage category  12/24V DC source
Operating voltage range  10…31.2V DC
Output delay time
Off to On  60 s nom/1 ms max
On to Off 200 s nom/1 ms max
Current draw @ 5.1V  300 mA
Current draw @ 24V  2 mA
Total backplane power  1.58 W



Allen Bradley   1756-OB32 | 1756-OB32/A


1756-OB32 | Allen Bradley |  12/24V DC source digital output module




Email:sales3@amikon.cn




The 1756 digital I/O modules support these features:


• Variety of voltage interface capabilities

• Isolated and nonisolated module types

• Point-level output fault states

• Direct-connect or rack-optimized communication

• Field-side diagnostics on select modules
