The 1756-OF8 Voltage/Current Output Analog Module by Allen-Bradley is a module with 8 voltage or current analog outputs and it is fitted into any slot of the ControLogix Chassis. It has an output rating of either ± 10V or 0-20 mA with a signal resolution of 15-bits across 21 mA and 15 bits across 10.4V and it has a backplane current of 210mA at 24V DC and 150mA at 5.1V DC with a total power rating of 5.8W.
The module has a voltage or current output range of either -10-10V or 4-20mA and the maximum power consumption of its circuit is 5.8W. The 1756-OF8 offers a Circuit Detection feature with an over-voltage protection at 24V DC and a short-circuit protection by electronically limiting the current to 21mA or less.
The module has a scan time of 12ms for floating point and 8ms for integer and has an overall module error of 0.15% (in voltage mode) and 0.3% (in current mode). The1756-OF8 module has an isolation voltage of 250V using reinforced insulation tested 1350V AC for 2s between the output channels and the backplane.
|

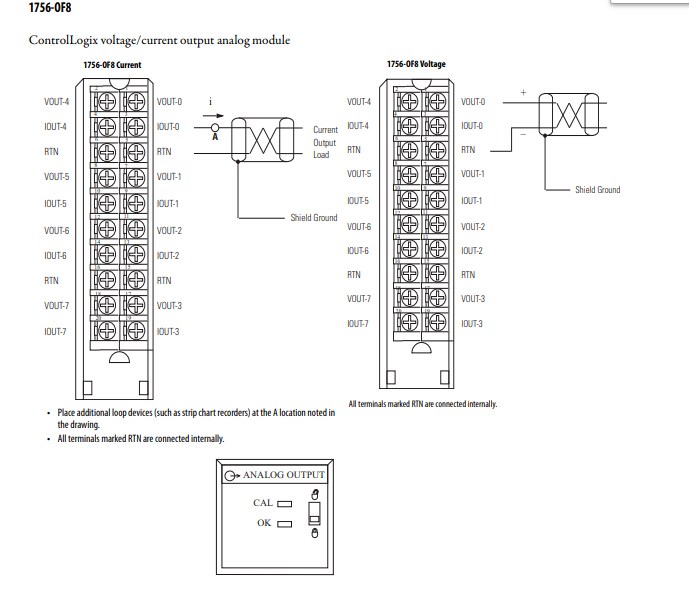

Attribute
|
|
1756-OF8
|
|
|
|
|
|
Outputs
|
|
Eight voltage or current
|
|
|
|
|
|
Output range
|
|
± 10V
|
|
|
|
0…20 mA
|
|
|
|
|
|
Resolution
|
|
15 bits across 21 mA - 650 nA/bit
|
|
|
|
15 bits across 10.4V - 320 V/bit
|
|
|
|
|
|
Current draw @ 5.1V
|
|
150 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
210 mA
|
|
|
|
|
|
Total backplane power
|
|
5.8 W
|
|
|
|
|
|
Voltage and current ratings
|
|
Backplane: 5.1V DC, 150mA max, 24V DC, 210mA max
|
|
|
|
Output Voltage: -10…+10V
|
|
|
|
Output Current: 4…20mA
|
|
|
|
|
|
Power consumption
|
|
5.8 W backplane power
|
Allen Bradley 1756-OF8
1756-OF8 | Analog Output Module | Allen Bradley
Email:sales3@amikon.cn
Part Number:
|
1756-OF8
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Analog Output Module
|
|
Outputs:
|
8 Current-Voltage
|
|
Power Dissipation (Max):
|
4.92 Watts, 4 Channel Current
|
