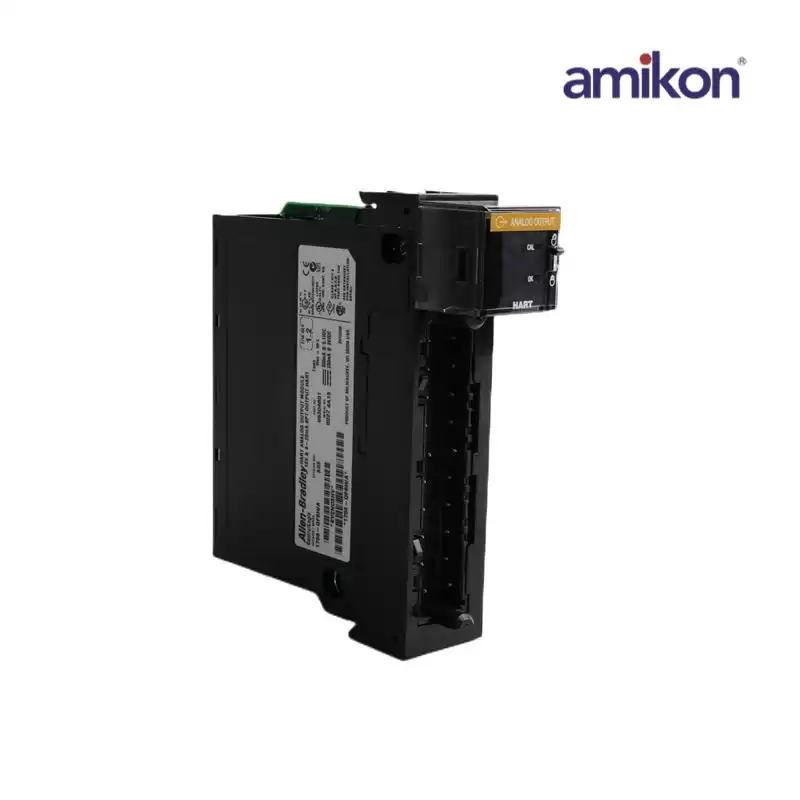

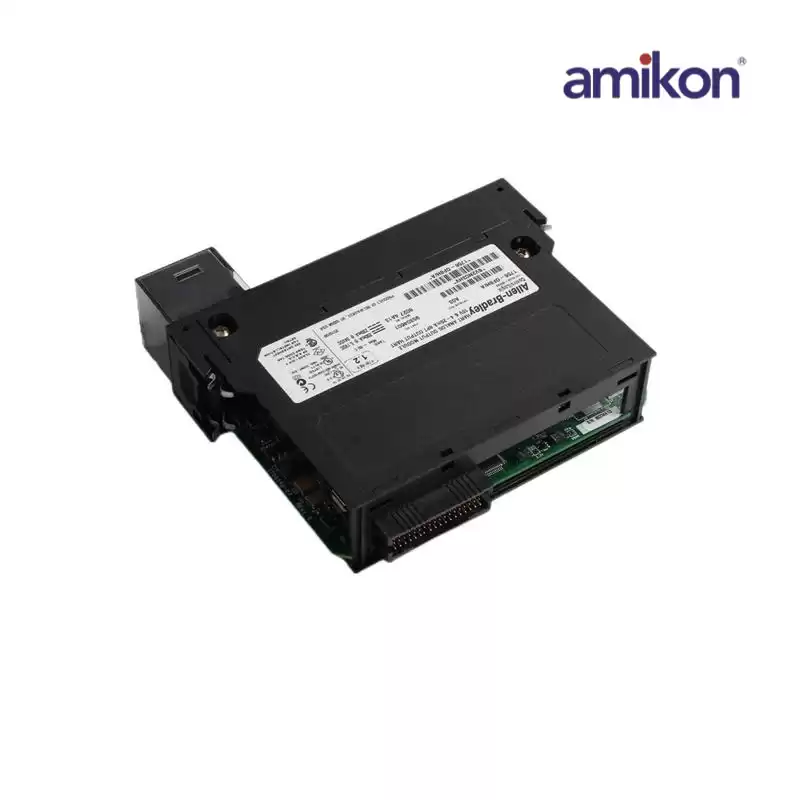

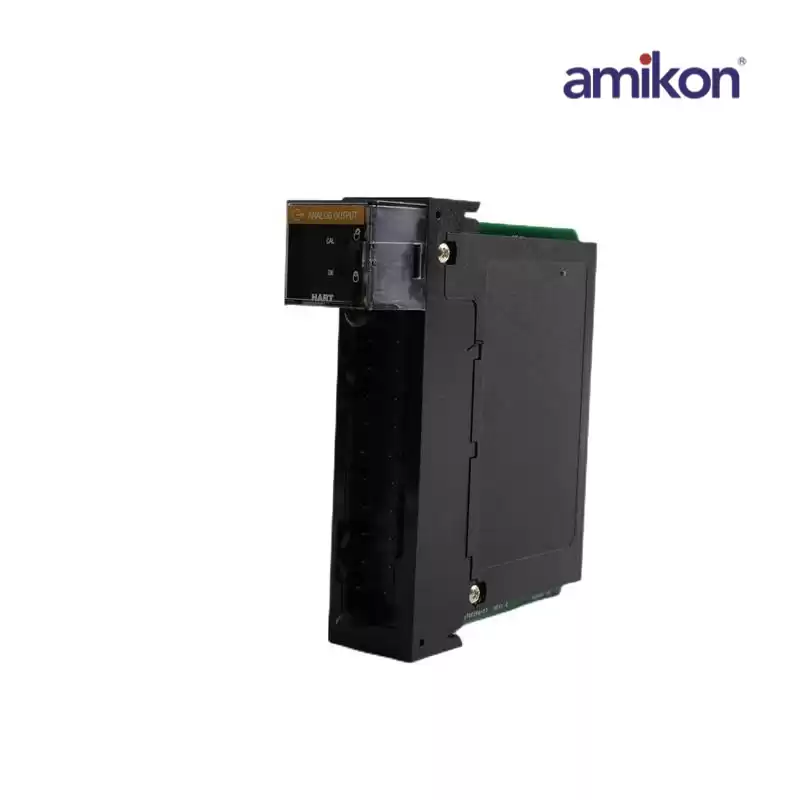

1756-OF8
|
|
Dimensions ：
|
19.3cm3.7cmx12cm
|
Weight：
|
0.87kg
|
|
The 1756-OF8 uses R-Ladder DAC, monotonicity with no missing codes module conversion method and provides register data in the form of Integer mode (left justified, 2 s complement) IEEE 32-bit floating point. It has a scan time of 12 ms for floating point format and 8 ms for integer format.
|
|
The 1756-OF8 comes with Eight (8) analog output channels configurable for +/-10VDC and 0-20 mA analog output signals. It has a resolution of 15 bits across 21 mA - 650 nA/bit and 15 bits across 10.4V - 320 µV/bit with open circuit, short circuit and overvoltage protection capability.
|
