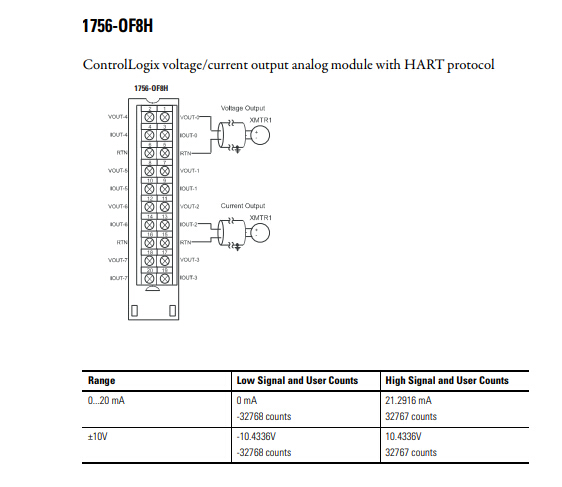

The 1756-OF8H ControlLogix Voltage/Current Analog Output Module by Allen-Bradley is an analog output module that has 8 voltage or current outputs with a single HART modem per module. It has a selectable voltage/current signal range of -10.4336-10.4336V and 0-21.2916mA. The 1756-OF8H has an overall output rating of ±10V or 0-20mA and a signal resolution of 15-16 bits for all ranges.
It also has a backplane current and voltage range of -10-10.4V or 0-20mA and 4-20mA and a total backplane power of 6.54W. It has a thermal dissipation of 16.78 BTU/hr, and a power dissipation of 4.92W. The 1756-OF8H has an isolation voltage of 50V with basic insulation tested at 1500V AC for 60s between output channels and the backplane.
The 1756-OF8H, unlike other Analog I/O modules, offers Open Circuit Detection and has a circuit detection time at a value that must be set below 0.1 mA. It also offers over-voltage protection and a maximum load resistance of 1 ïF (voltage) and 10 ïH (current). Its current settling time without HART is just below 23ms, and below 37ms with HART and its voltage settling time is < 8.5ms to 95% with resistive loads.
It has a calibration accuracy (without HART) of 0.1% (voltage) and 0.15% (current) and its standard calibration interval is about 12 months. The 1756-OF8H has an offset drift of 100 ïV/°C or 200nA/°C and the module has an overall module error of 0.15% (voltage) or 0.3% (current).
|
Part Number:
|
|
1756-OF8H
|
|
|
|
|
|
Removeable Terminal Blocks:
|
|
1756-TBNH, 1756-TBSH
|
|
|
|
|
|
Backplane Current at 5 Volts:
|
|
165 milliamps
|
|
|
|
|
|
Backplane Current at 24 Volts:
|
|
2 milliamps
|
|
|
|
|
|
Removeable Terminal Block(s):
|
|
1756-TBNH, 1756-TBSH
|
|
|
|
|
|
Isolation Voltage:
|
|
50 Volts Continuous
|
|
|
|
|
|
Enclosure:
|
|
None
|
|
|
|
|
|
Location :
|
|
Chassis (any slot)
|
Allen Bradley 1756-OF8H
1756-OF8H | Allen Bradley | | ControlLogix Analog Output Module
Email:sales3@amikon.cn
Part Number:
|
1756-OF8H
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Hart Analog Output Module
|
|
Outputs:
|
8 Differentia
|
|
Input Current Range:
|
0-20 or 4-20 milliamps
|
