Manufacturer Automation
Brand

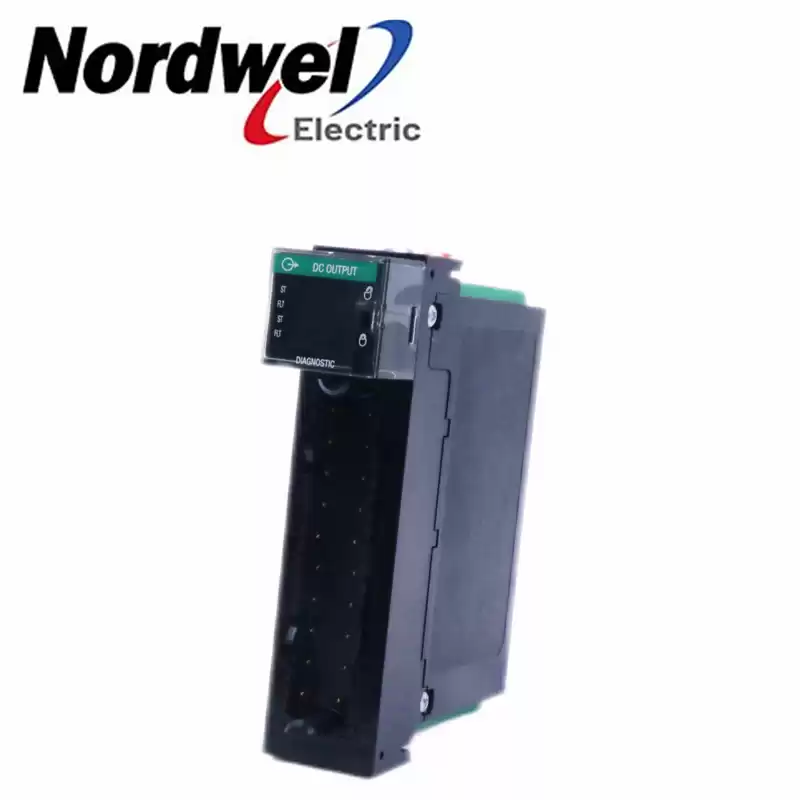

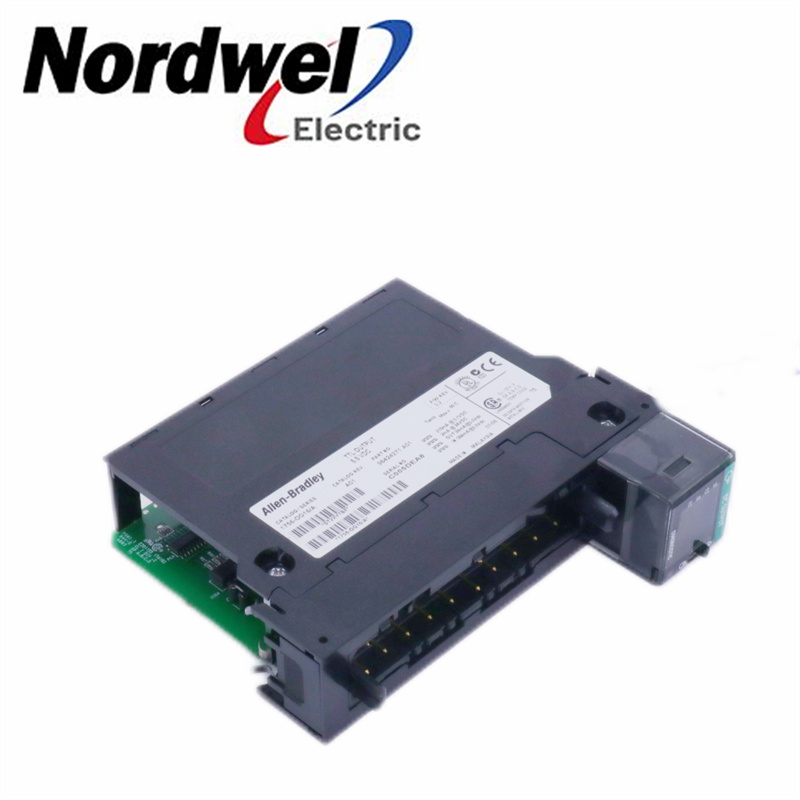

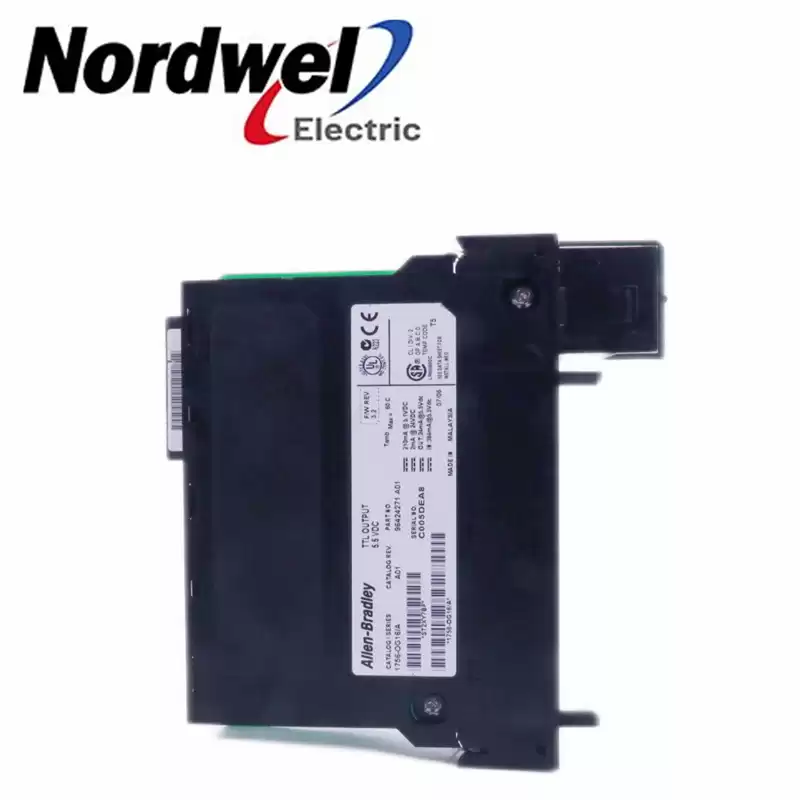

Part Number/Catalog No. 1756-OG16
Series ControlLogix
Module Type Digital DC Ouptut Module
Outputs 16-Point
Voltage 5 Volts DC with TTL Source
Operating Voltage Range 4.5-5.5 Volts DC
Maximum Output Current Rating-Point 24 milliamps at 60 Celsius
Maximum Output Current Rating-Module 384 milliamps at 60 Celsius
Power Dissipation (Max) 1.5 Watts at 60 Celsius
Backplane Current at 5 Volts 210 milliamps
Removeable Terminal Block(s) 1756-TBNH, 1756-TBSH
Isolation Voltage 50 Volts Continuous
Enclosure None
