Technical Specifications for 1756-OG16
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Isolation Voltage
|
4.5-5.5 Volts DC
|
|
Part Number/Catalog No.
|
1756-OG16
|
Power Dissipation
|
1.5 Watts
|
|
Module Type
|
I/O Module
|
Backplane Current
|
210 milliamps
|
|
Manufacture Year
|
2022
|
Current Range
|
0-25 mA
|
|
Product Package
|
Factory Sealed
|
UPC
|
10881730081783
|
About 1756-OG16
|
The 1756-OG16 has a backplane draw current of 210mA at 5.1V DC and of 2mA at 24V DC with a total backplane power of 1.12W. The 1756-OG16 has a maximum OFF state current leakage of 0.1mA on each output point, and its overall ON state drop voltage is 0.4V.

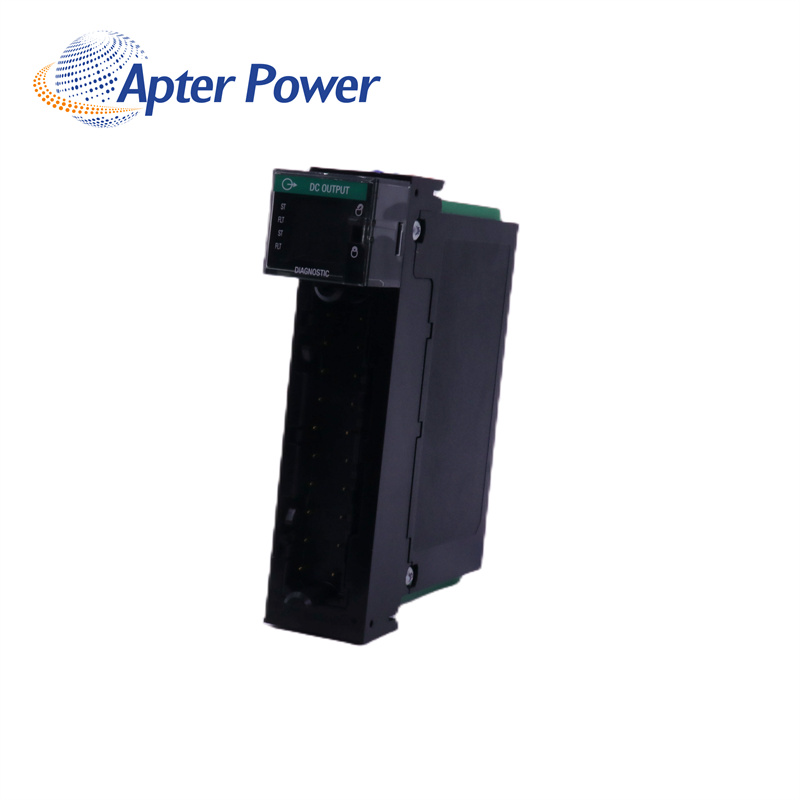

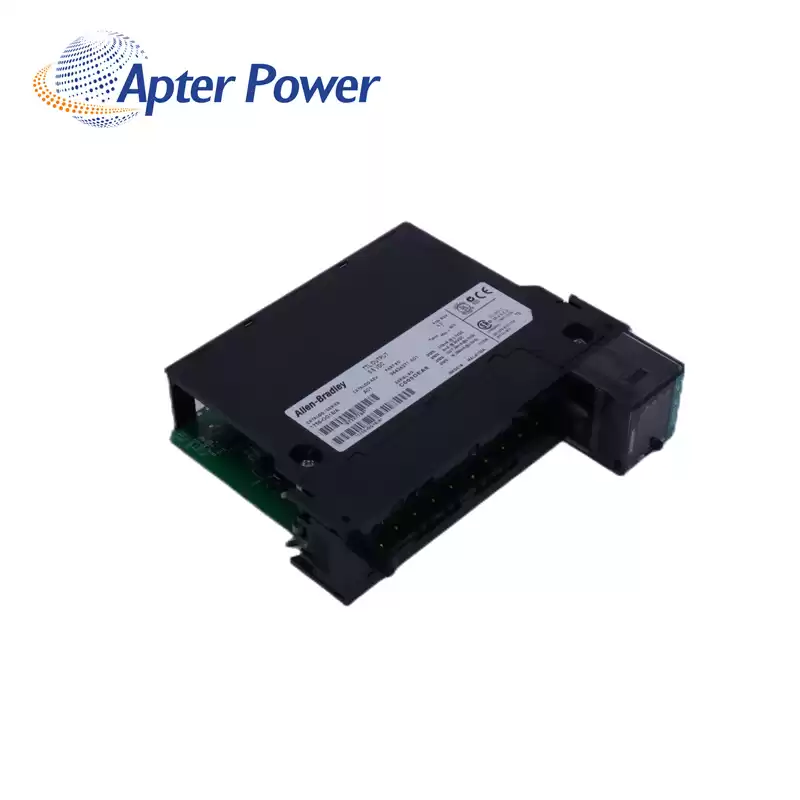

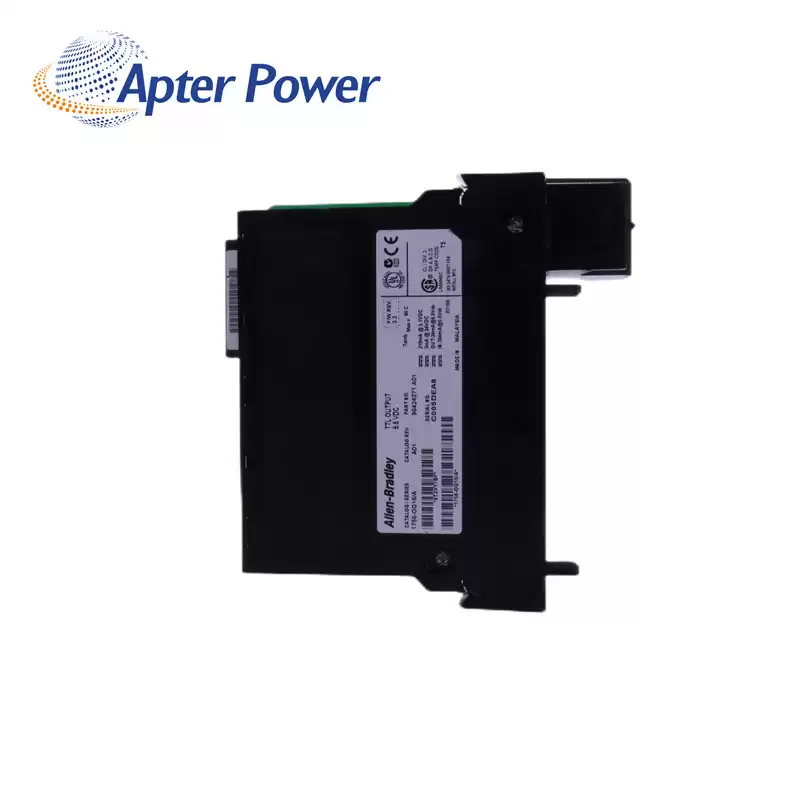

The 1756-OG16 ControlLogix Transistor-Transistor Logic Output Module by is a DC digital output module installed in the ControlLogix chassis with sixteen 5V DC Low/True TTL outputs.The 1756-OG16 has a backplane draw current of 210mA at 5.1V DC and of 2mA at 24V DC with a total backplane power of 1.12W.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
