1756-OV16E | Allen Bradley | DC Digital Output Modules

1756-OV16E   ControlLogix 16 Point D/O Module



Allen  Bradley    1756-OV16E  !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)

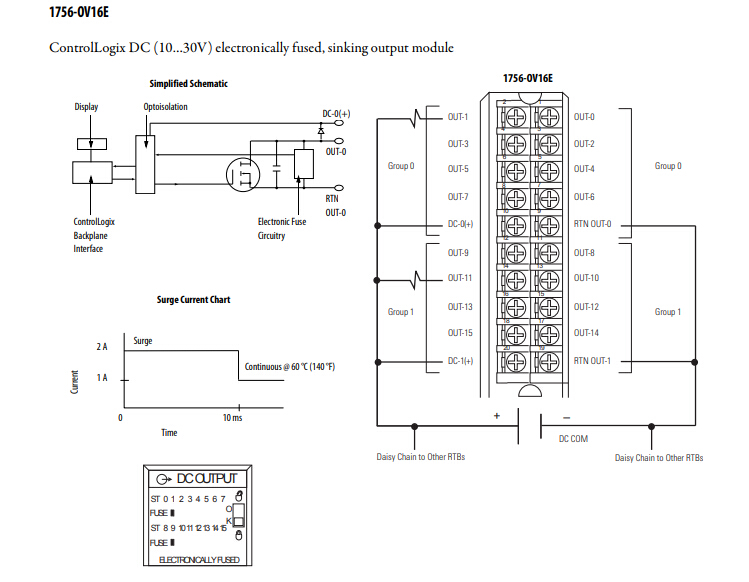

The 1756-OV16E ControlLogix Digital DC Output Module by Allen-Bradley is an output module in the ControlLogix Digital DC output module series with 16 sinking and electronically-fused outputs located in the chassis slot of the 1756 ControlLogix device. It has a pilot duty rating of 1A (DC-13/SR) and an operational voltage rating of 10-30V DC. The 1756-OV16E has a nominal signal delay time of 75μs for OFF to ON state and 360μs for ON to OFF state and it has 1ms maximum delay time for both OFF to ON and ON to OFF.




It has backplane ratings of 2mA at 5.1V and 210mA at 24V and a total power of 1.12W. The maximum power dissipation across the 1756-OV16E’s circuits is 6.72W and the maximum leakage current on each point is 1mAin the OFF state. It has a maximum voltage loss of 700mV DC at 1A.




The 1756-OV16E has a maximum current of 1A on each output point and the aggregate current on the module is 8A at 60 °C. The lowest current load on each point is 2mA and it has a surge of 2A for 10ms per point recurring every 2s. The 1756-OV16E has an insulation voltage of 250V adopting basic insulation type routinely tested at 1350V AC for 2s between outputs-to-backplane and output group-to-group.




It has an IEC designated T4 temperature code and a North America T4 temperature code and it comes in an open enclosure. The 1756-OV16E functions best at 0-60 °C at 5-95% non-condensing humidity.








Attribute  1756-OV16E
Outputs  16 electronically fused (8 points/group)
Pilot duty  1 A (DC-13/SR)
Voltage category  12/24V DC sink
Output delay time
Off to On 75 μs nom/1 ms max
Off to On 360 μs nom/1 ms max
Operating voltage range  10…30V DC
Current draw @ 5.1V  210 mA
Current draw @ 24V  2 mA
Total backplane power  1.12 W
Power dissipation, max  6.72 W @ 60 °C (140 °F)
Thermal dissipation  22.94 BTU/hr







Allen  Bradley  1756-OV16E


1756-OV16E | Allen Bradley | DC Digital Output Modules





Email:sales3@amikon.cn





  Part Number:
  1756-M03SE
  Series:

  ControlLogix

  Module Type:

  Electronically Fused Sinking Output

  Module

  Outputs:   16-Point Electronically Fused
  Voltage:

  12-24 Volts DC Sink
